Speedmaster ®
SKU:PCE553.1006

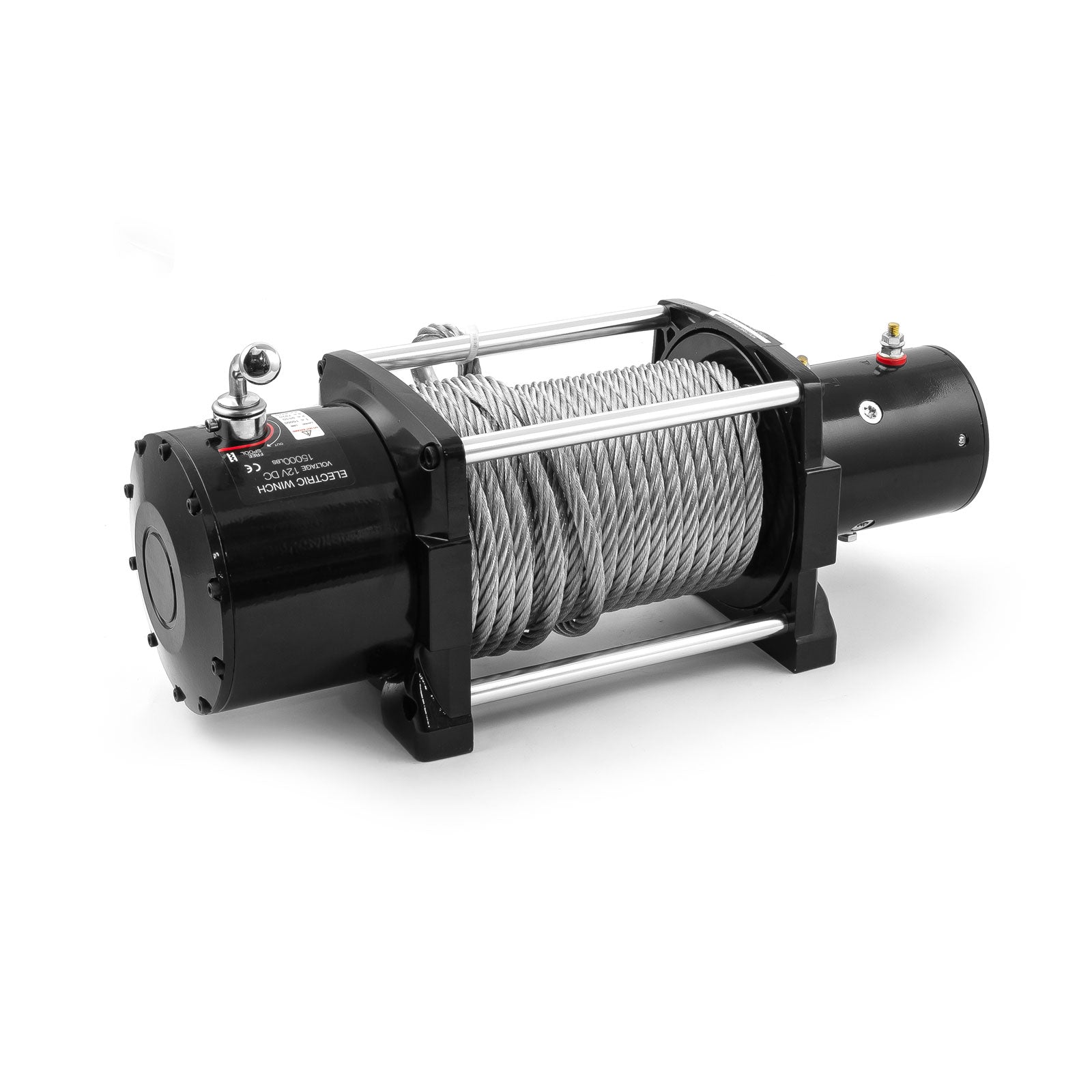

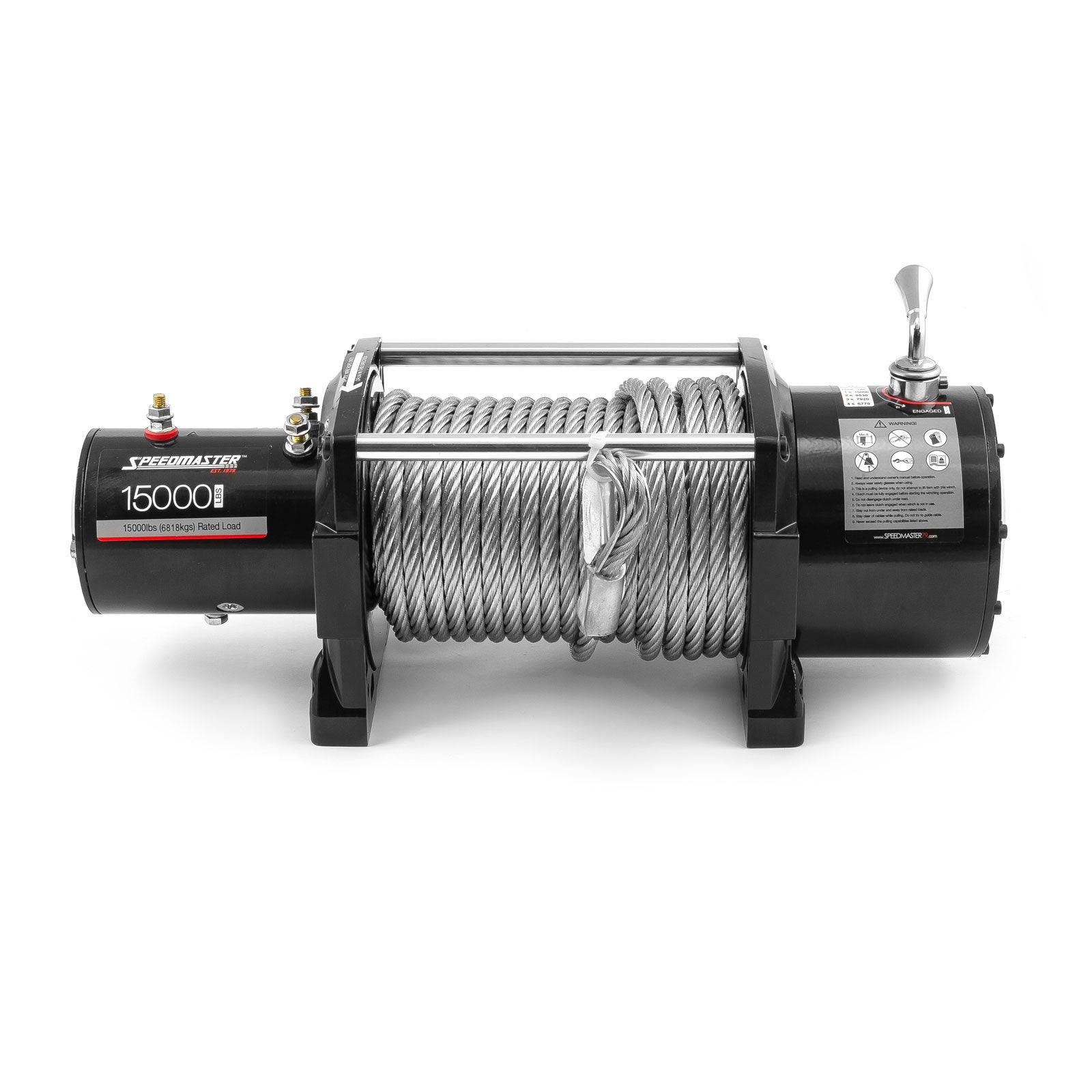

Kit de cabrestante eléctrico 4x4 de 12 V y 15 000 lb (6803 kg) con control remoto inalámbrico
Kit de cabrestante eléctrico 4x4 de 12 V y 15 000 lb (6803 kg) con control remoto inalámbrico
Precio habitual
$622.70 USD
Precio habitual
Precio de oferta
$622.70 USD
En existencias
Cantidad
No se pudo cargar la disponibilidad de retiro
- Estado del artículo: Para estrenar
- Envío en 3 días
- Garantía mundial limitada de 12 meses
Información
Los cabrestantes Speedmaster son el sistema de recuperación completo con la potencia y la confiabilidad necesarias para sacarlo de cualquier situación.
Presupuesto
| Brand: | Speedmaster |
| Part Number: | PCE553.1006 |
| Part Type: | Winch |
| Winch Style: | Electric |
| Pull Rating (lbs): | 15,000 lbs. (6803kg) |
| Volts: | 12 V |
| Winch Fairlead Type: | Roller |
| Remote Included: | Yes |
| Remote: | Remote switch,12ft (3.7m)lead + Wireless |
| Free-Spooling Clutch: | Sliding Ring Gear |
| Brake: | Automatic In-The-Drum |
| Power Out: | Yes |
| Drive Gear: | 3-Stage Differential Planetary |
| Winch Line Included: | Yes |
| Winch Line Type: | Cable |
| Winch Line Diameter (in): | 1/2 in. (12.7mm) |
| Winch Line Material: | Steel |
| Winch Line Length (ft): | 85 ft. (26m) |
| Weight: | 117.000 lbs. (53.1kg) |
| Motor Horsepower: | 6.0 hp |
| Gear Reduction Ratio: | 265.2:1 |
| Drum Diameter (in): | 2.500 in. (63.5mm) |
| Drum Length (in): | 8.800 in. (224mm) |
| Overall Dimensions (in): | 558mm(L) x 203mm(W) x 304mm(H) |
| Winch Finish: | Black |
| Recommended Battery: | 650CCA min. |
| Quantity: | Sold as a kit. |

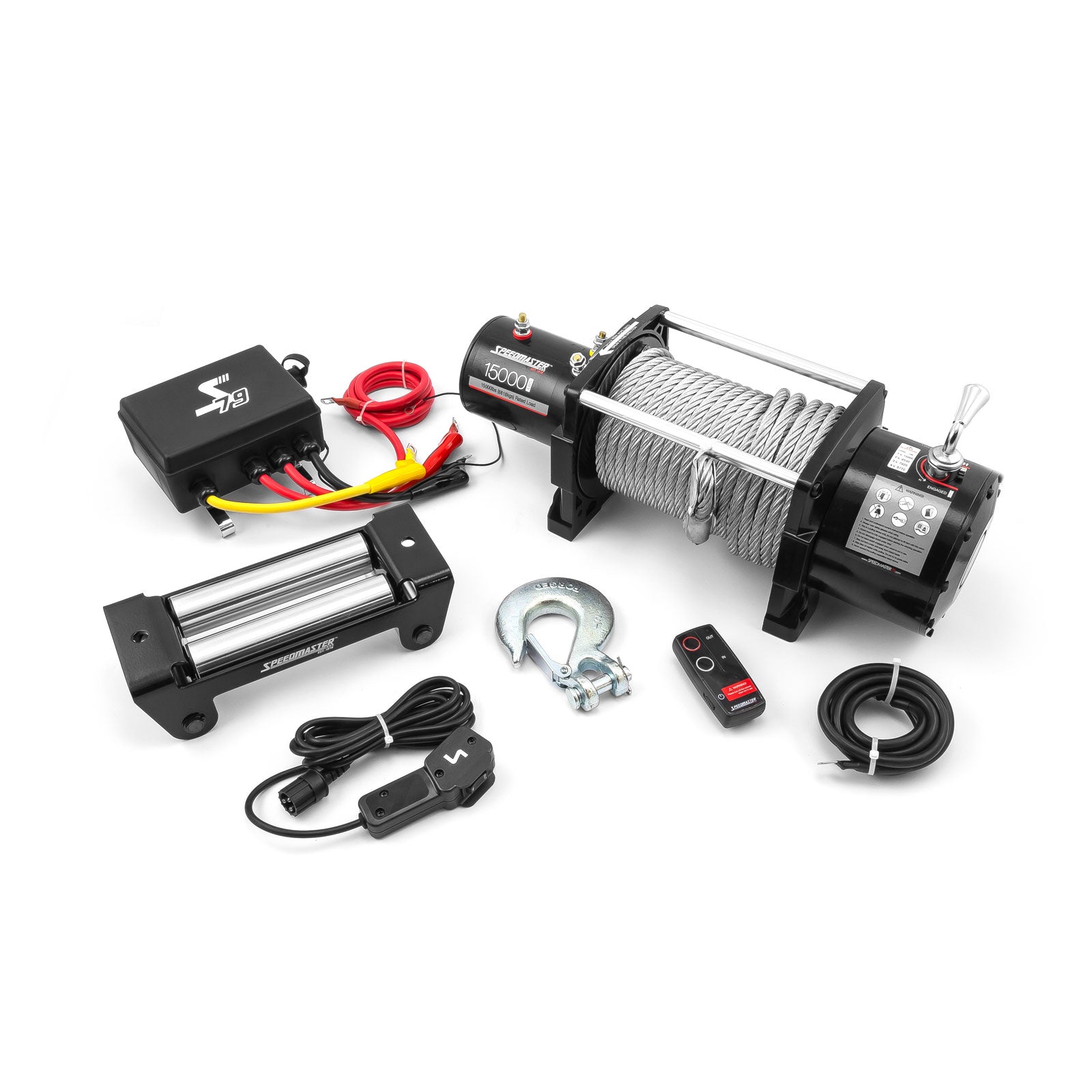

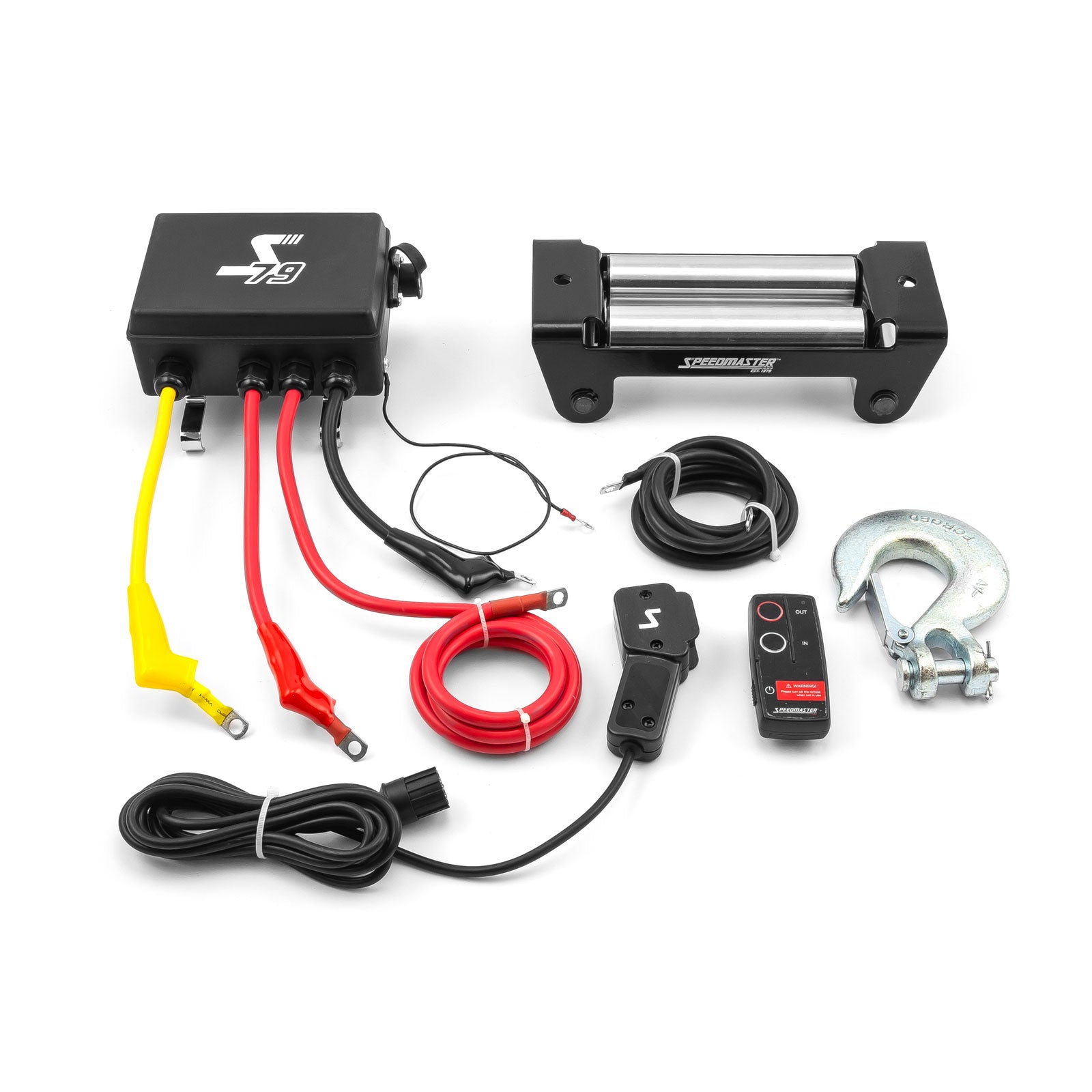

The Speedmaster 4wd winches emcompass all the best features you could want in a winch. Ranging from 2500lb - 15000lb, they can handle any situation you could get into. Every winch is finished with a black powder coat with stainless steel hardware, an aluminum cross bars to provide great looking, and long lifetime. They include a wired remote switch and a wireless remote control, waterproof box with the versatility to be mounted over the winch motor or winch cable, a four way roller fairlead, and forged hook.
Electric winch with Permanent Magnet
| Model | Capcity | Power | Steel cable | Size (L X W X H) | NW |
| PCE553.1006 | 15000LB | DC12V | 12.7mm X 26m | 558mm(L) X 203mm(W) X 304mm(H) | 53.1KG |
Pull, Speed, Amperes, Volts (First Layer)
| Line Pull (lbs./ kg) | Line Speed FPM(m/min) | Motor (Amps) |
| 0 | 22.0ft (6.8m) | 80 |
| 3000 (1361) | 11.5ft (3.5m) | 170 |
| 6000 (2722) | 9.8ft (3.0m) | 210 |
| 9000 (3629) | 8.2ft (2.5m) | 250 |
| 12000 (4536) | 6.8ft (2.1m) | 300 |
| 15000 (5909) | 5.6ft (1.7m) | 360 |
Line Pull And Rope Capacity In Layer
| Layer | Rated Line Pull (lbs./kgs) | Total Rope On Drum (ft/m ) |
| 1 | 15000 (6804) | 21 (6.4) |
| 2 | 12273 (5567) | 46 (14.0) |
| 3 | 10385 (4711) | 63.0 (19.4) |
