Speedmaster ®
SKU:PCE281.2158

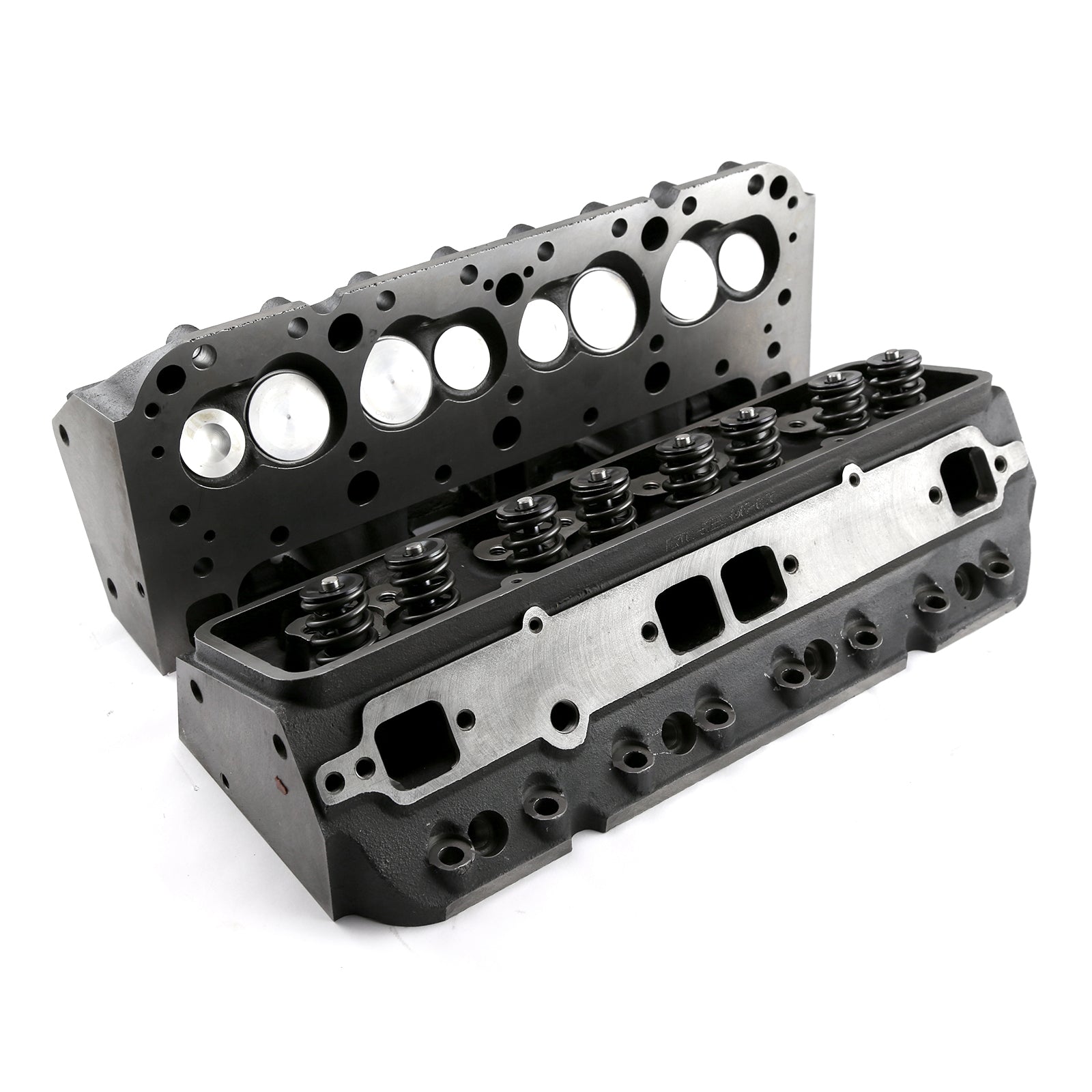

Culatas de cilindros hidráulicas rectas de montaje plano para Chevy SBC 350 (175 cc, 59 cc)
Culatas de cilindros hidráulicas rectas de montaje plano para Chevy SBC 350 (175 cc, 59 cc)
Precio habitual
$710.00 USD
Precio habitual
Precio de oferta
$710.00 USD
Agotado
Cantidad
No se pudo cargar la disponibilidad de retiro
- Estado del artículo: Para estrenar
- Envío en 5 días
- Garantía mundial limitada de 12 meses
Información
Presupuesto
| Brand: | Speedmaster |
| Part Number: | PCE281.2158 |
| Part Type: | Cylinder Head [Assembled] |
| Product Line: | Hydraulic Flat Tappet |
| Cylinder Head Style: | Assembled |
| Cylinder Head Material: | Cast Iron |
| Cylinder Head Finish: | Natural |
| Combustion Chamber Volume (cc): | 59 cc |
| CNC-Machined Combustion Chamber: | No |
| Intake Runner Volume (cc): | 175 cc |
| Exhaust Runner Volume (cc): | n/a |
| CNC-Machined Intake Runner: | No |
| CNC-Machined Exhaust Runner: | No |
| Intake Port Shape: | Rectangular |
| Intake Port Location: | Standard |
| Exhaust Port Shape: | Square |
| Exhaust Port Location: | Standard |
| Spark Plug Style: | Straight |
| Comp. Valve Job: | No |
| Intake Valves Included: | Yes |
| Intake Valve Diameter (in): | 1.940 in. |
| Exhaust Valves Included: | Yes |
| Exhaust Valve Diameter (in): | 1.500 in. |
| Valve Springs Included: | Yes |
| Maximum Valve Lift (in): | 0.580 in. |
| Outside Diameter of Outer Spring (in): | 1.250 in. |
| Number of Springs Per Valve: | Single |
| Damper Spring Included: | Yes |
| Retainers Included: | Yes |
| Retainer Material: | Chromoly steel |
| Locks Included: | Yes |
| Lock Style: | 7 degree |
| Valve Stem Seals Included: | Yes |
| Rocker Arm Studs Included: | NoÊ |
| Rocker Arms Included: | NoÊ |
| Rocker Arm Nuts Included: | NoÊ |
| Guideplates Included: | NoÊ |
| Valve Cover Mounting Style: | Center & Perimeter Bolt |
| Accessory Bolt Holes Drilled: | YesÊ |
| Intake Valve Angle: | 23 deg. |
| Exhaust Valve Angle: | 23 deg. |
| Valve Guides Included: | YesÊ |
| Valve Guide Material: | BronzeÊ |
| Valve Seats Machined: | Yes |
| Valve Seat Machine Style: | 3-angle |
| Valve Seat Material: | Ductile ironÊ |
| Steam Holes Drilled: | No |
| Oiling Style: | Through pushrodÊ |
| Machined for O-Ring: | NoÊ |
| Heat Crossover: | No |
| Quantity: | Sold as a pair. |
Especificaciones de montaje
Elevación máxima: 0,520"
Encuadernación en espiral: 1,080"
Instalación de admisión: 125 libras a 1,750
Instalación de escape: 125 libras a 1,750
Presión de sellado cerrada: 125 libras
Presión del asiento abierto: 335 libras
