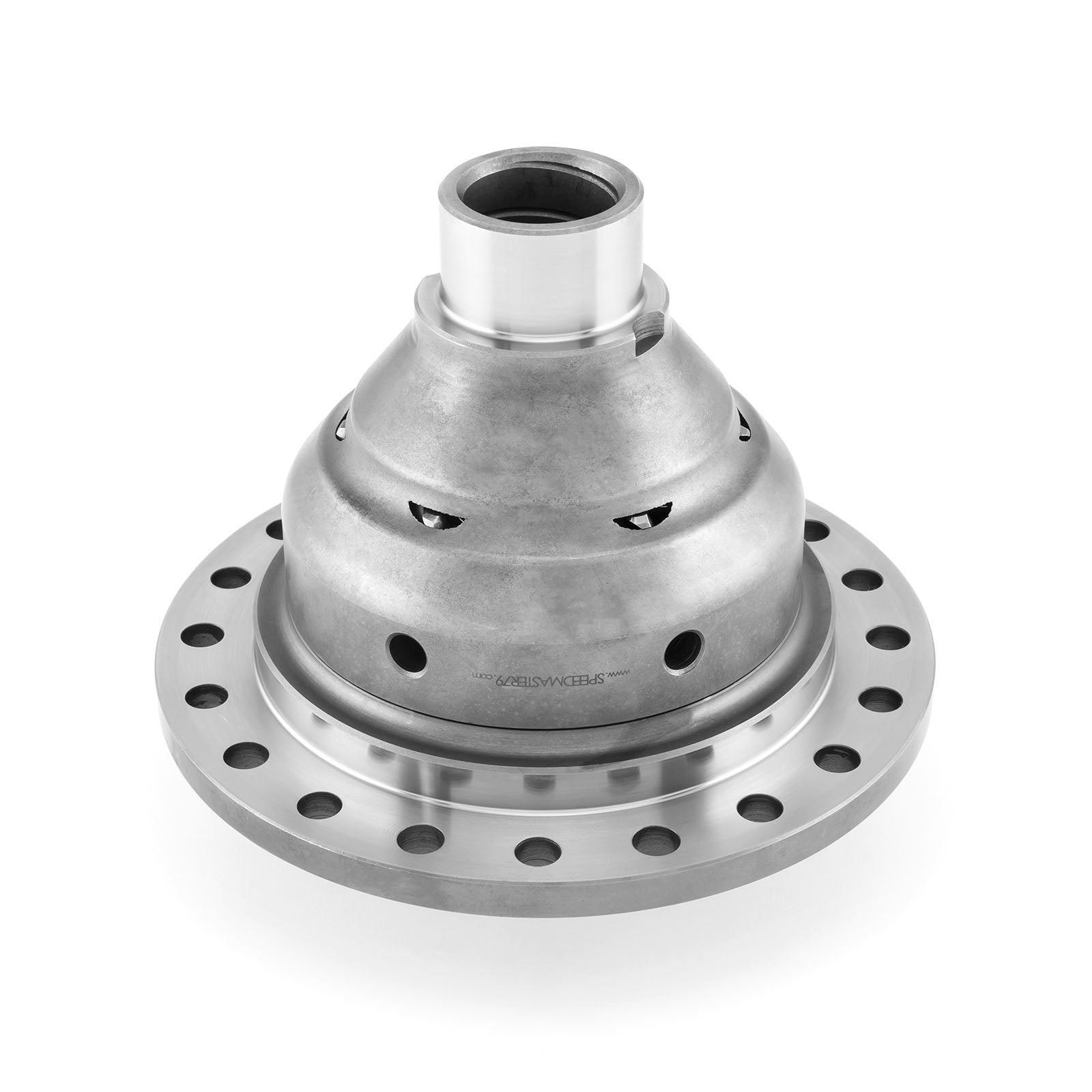

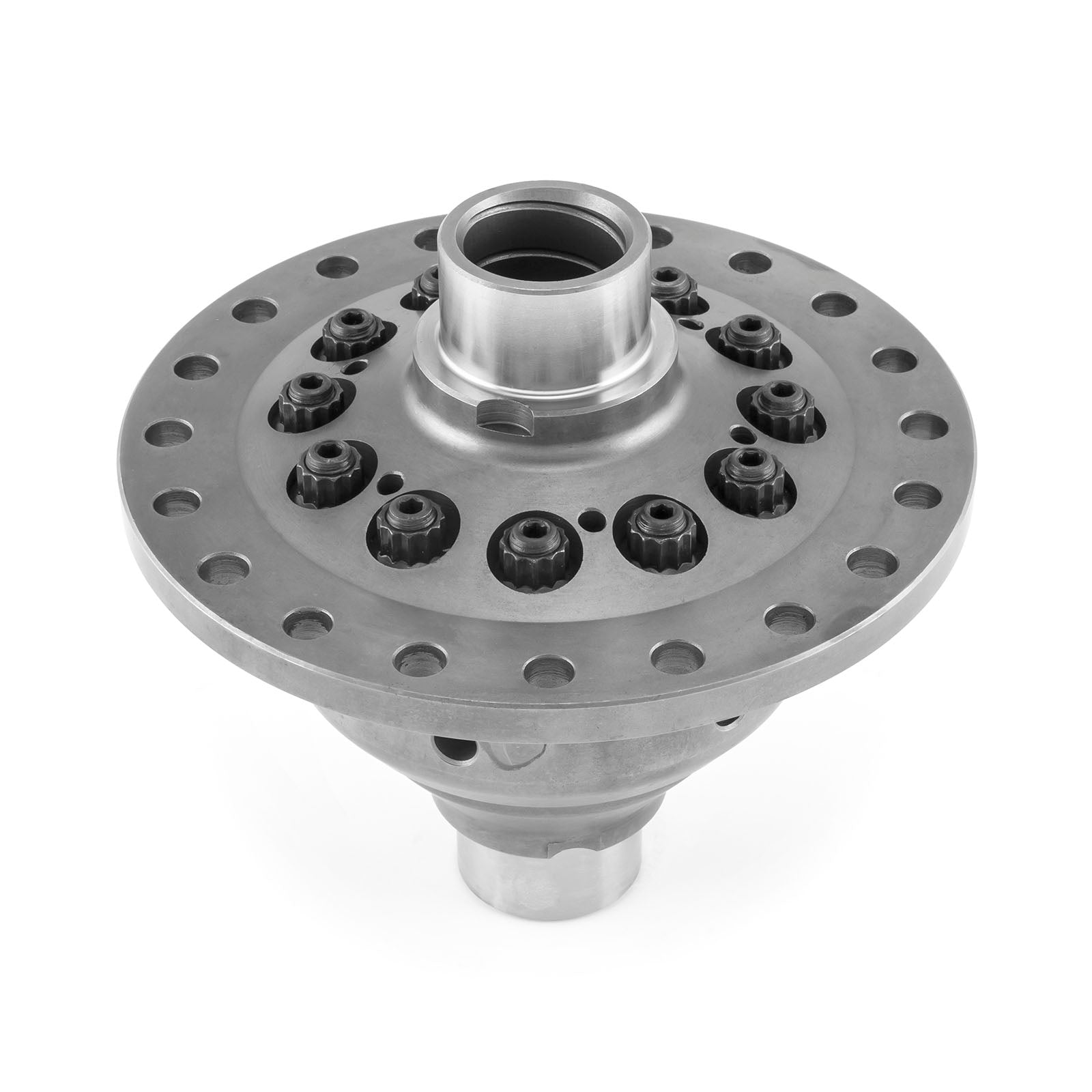

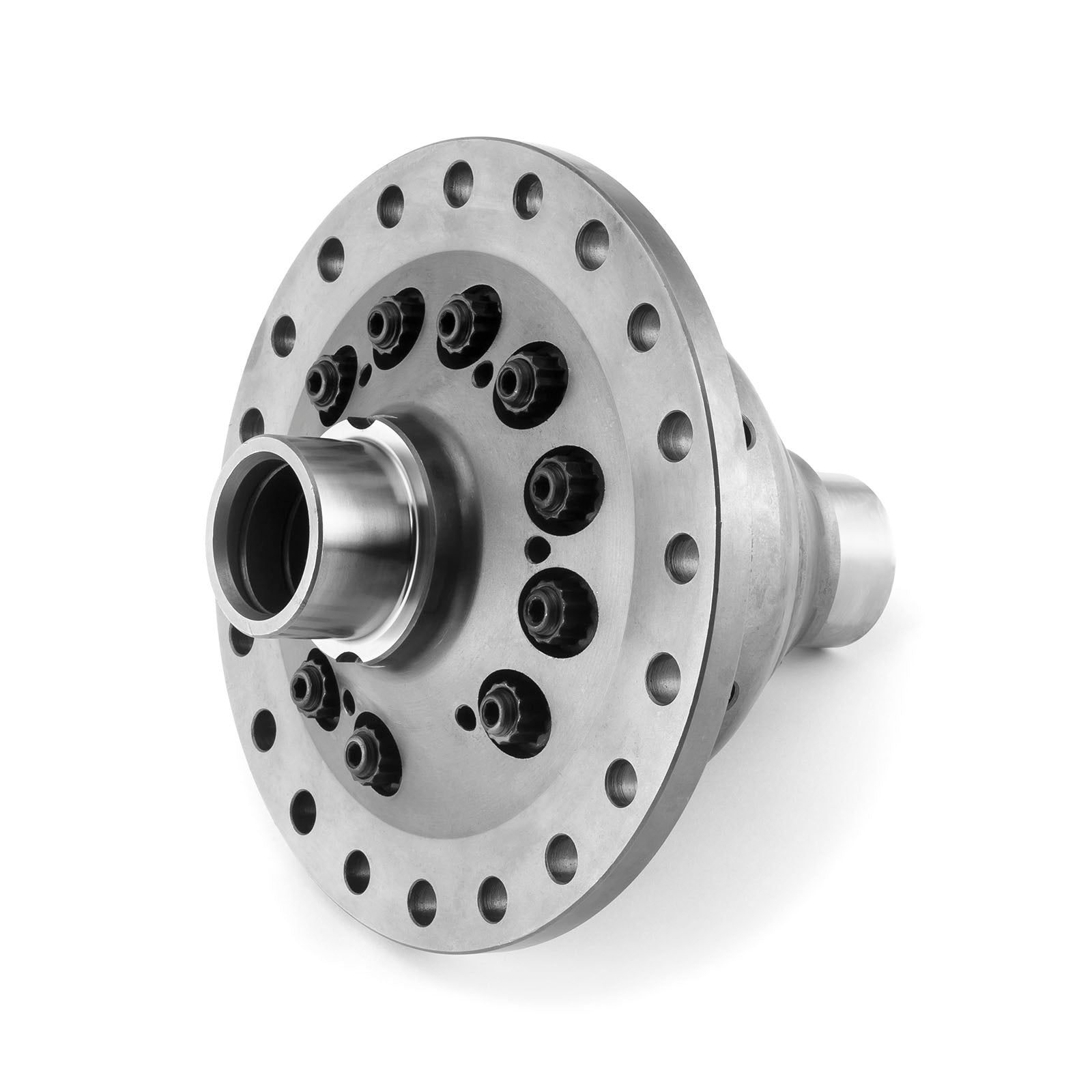

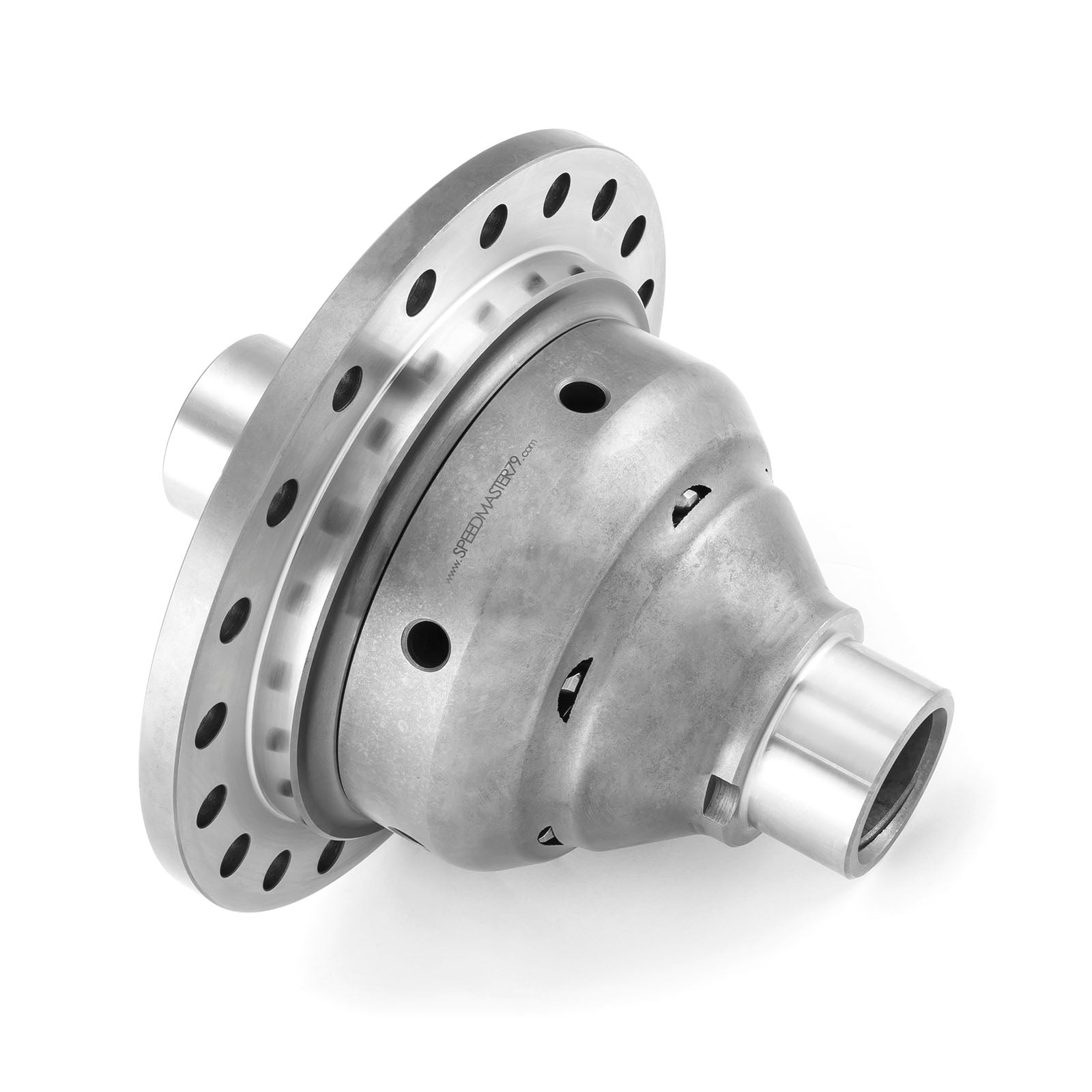

Diferencial de deslizamiento limitado TorqueWorm LSD DANA 44 30 estrías 3.92 y superiores

Aplicaciones populares (pero no limitadas a): DANA 30 Delantero 3.73 y superiores Jeep JK 2007-2014 1971' hasta la actualidad Jeep Grand Cherokee CJ5 CJ7 CJ8 Wagoneer Cherokee Wrangler YJ TJ JK Liberty IH Scout Etc.

Brand:	Speedmaster
Part Number:	PCE204.1029
Part Type:	Differential Carrier
Aftermarket Carrier Style:	Limited slip
Cover Bolts:	10
Axle Shaft Spline Quantity:	30
Manufacturer of Axle:	Dana 44 / 30 Spline
Carrier Material:	Steel
Quantity:	Sold individually.
Notes:	For use with 3.73 and numerically higher gear ratios. Front axle 30 spline.

The Torque Worm is a torque biasing 6 pinion gear type limited slip unit. This is a preloaded unit allowing for a faster reacting unit. Unlike our competitors that only use 3 or 4 pinion gears. The use of 6 pinion gears means the stress on gears is spread over a greater surface area, reducing the load on all internal components. The internal components are made from EN36 Material as used in racing such as V8 SUPERCAR. The outer cases made from 8620 Chrome-Nickel-Moly steel and the case hardened for long life and improved strength. The Torque Work unit is available in 28, 31 and 35 spline counts.

The Ford 9 Inch axle may have been discontinued by Ford in the 80's but thanks to its large 9" ring gear, drop out style 3rd member, axle shafts, and easy maintenance, it has continued to grow in popularity and now has more aftermarket support than any other axle.

Newer OEM Dana 44 ring and pinion sets may use 3/8”, 7/16” or 1/2” bolts. The flange holes of the Air Locker may need to be drilled or reamed from Ø3/8” to Ø7/16” or Ø1/2” to suit.

---

---
