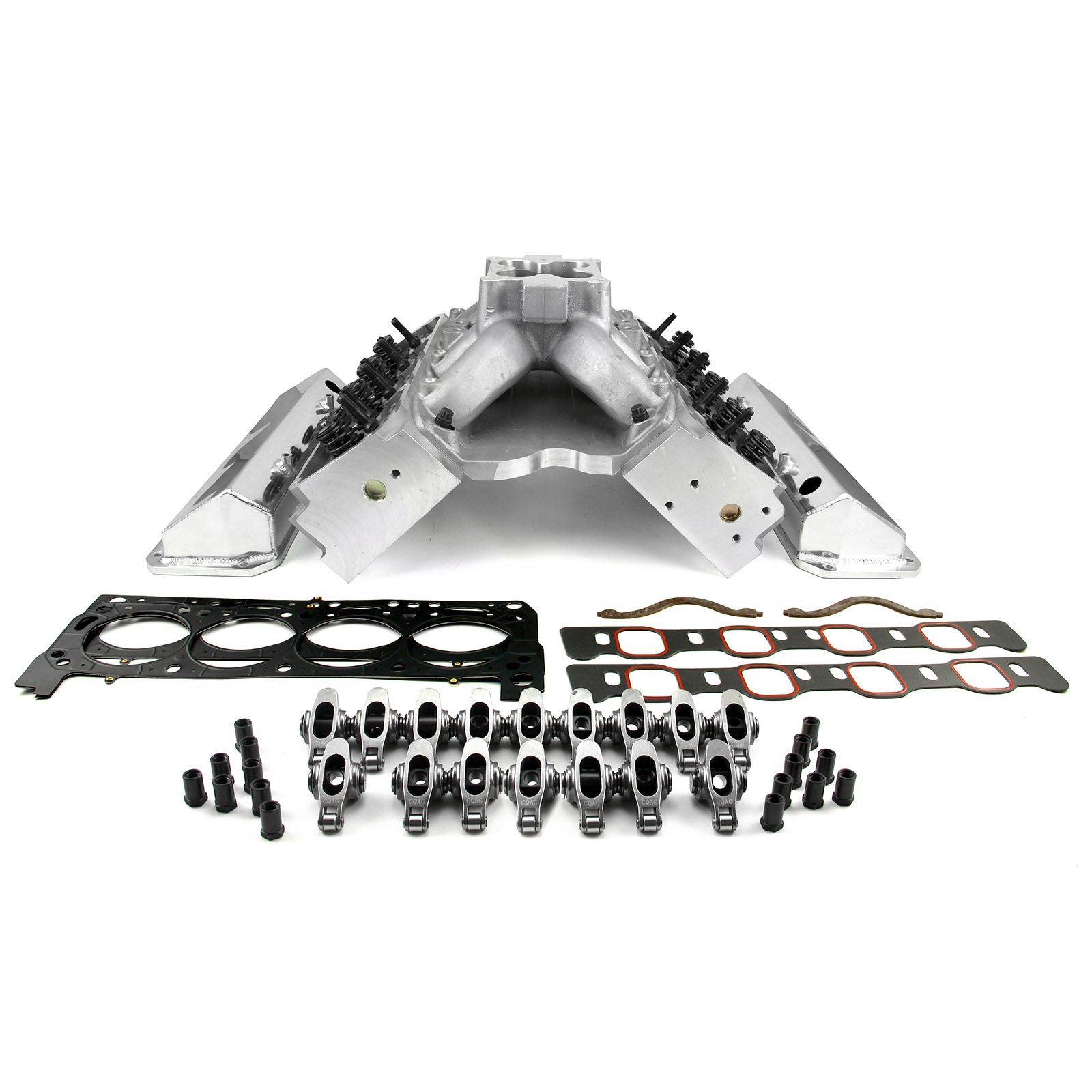

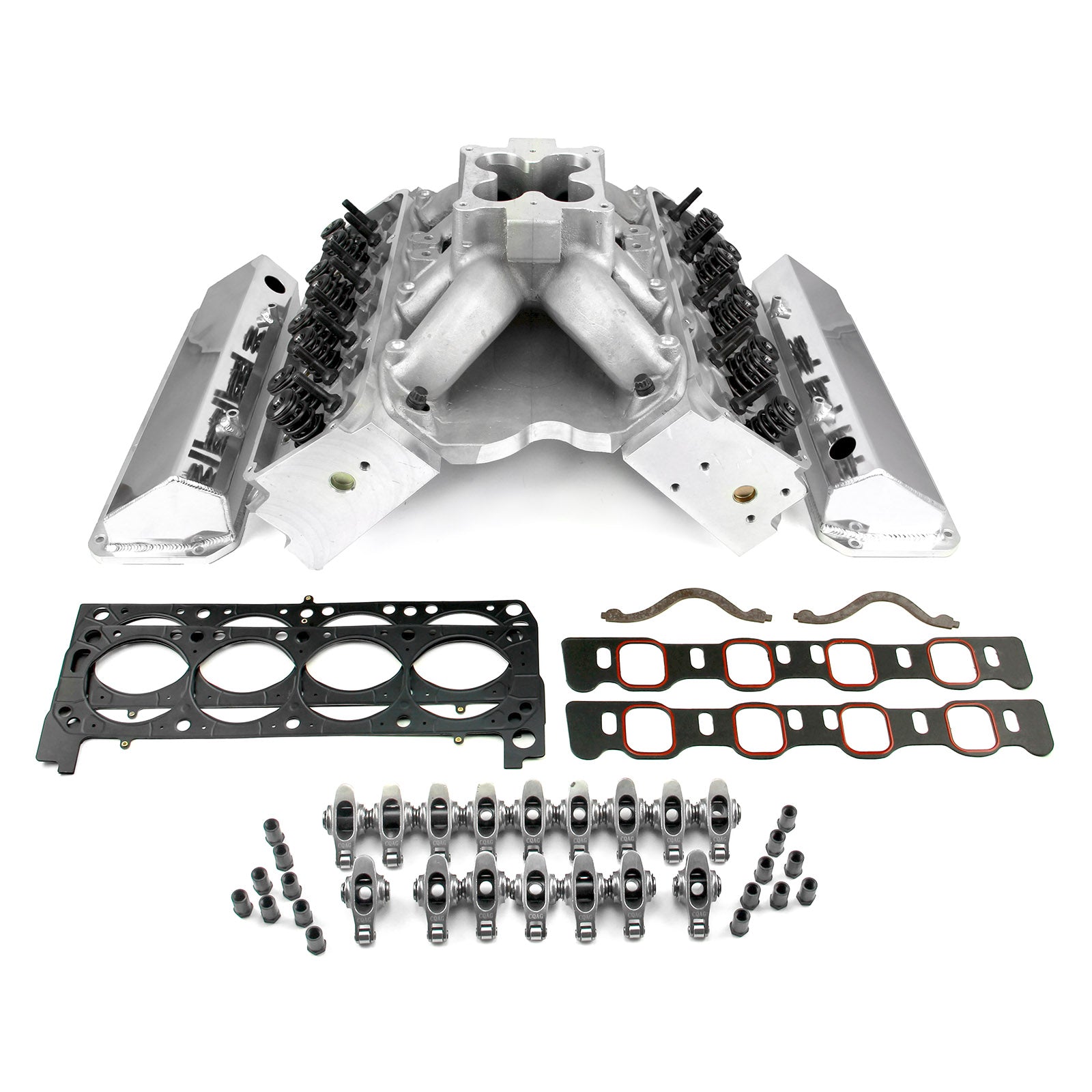

Kit combinado de motor Ford 351W 9.5 Deck Fusion con colector hidráulico y culata FT

No pierda horas buscando las piezas que necesita para obtener el rendimiento deseado de su motor. Speedmaster ya lo ha hecho por usted; nuestros kits de motor de alta gama le ahorrarán el tiempo y la molestia de combinar componentes usted mismo. Estos kits están diseñados específicamente para ofrecerle el rendimiento que desea, a un mejor precio que comprar las piezas por separado.

Brand:	Speedmaster
Part Number:	PCE435.1057
Part Type:	Cylinder Head Combo
Product Line:	Hydraulic Flat Tappet
Camshaft Included:	No
Intake Manifold Included:	Yes(2 Piece)
Fuel Delivery Style:	Carbureted
Intake Material:	Aluminum
Intake Finish:	Satin
Carburetor Quantity:	One
Intake Style:	Single plane Fusion
Intake Basic Operating RPM Range:	3500-7,500
Intake Manifold Height:	7.500 in.
Intake Manifold Model (descriptive):	Speedmaster - Fusion Series
Carburetor Flange:	4500 Series
Timing Chain and Gears Included:	No
Lifters Included:	No
Gaskets Included:	Yes(Head and Intake Only)
Cylinder Head Style:	Assembled
Cylinder Head Material:	Aluminum
Cylinder Head Finish:	Natural
Combustion Chamber Volume (cc):	64 cc
CNC-Machined Combustion Chamber:	No
Intake Runner Volume (cc):	220 cc
CNC-Machined Intake Runner:	No
CNC-Machined Exhaust Runner:	No
Intake Port Shape:	Square
Intake Port Location:	3v Raised
Exhaust Port Shape:	Square
Exhaust Port Location:	Standard
Spark Plug Style:	Stock
Comp. Valve Job:	No
Intake Valves Included:	Yes
Intake Valve Diameter (in):	2.190 in.
Exhaust Valves Included:	Yes
Exhaust Valve Diameter (in):	1.710 in.
Valve Springs Included:	Yes
Damper Spring Included:	Yes
Number of Springs Per Valve:	Dual
Retainers Included:	Yes
Retainer Material:	Chromoly steel
Locks Included:	Yes
Lock Style:	10 degree
Valve Stem Seals Included:	Yes
Valve Stem Seal Style:	Positive stop
Rocker Arms Included:	Yes (Stainless)
Rocker Arm Studs Included:	Yes
Rocker Arm Nuts Included:	Yes
Rocker Arm Nut Thread Size:	7/16-24 in.
Guideplates Included:	Yes
Guideplate Pushrod Size:	5/16 in.
Pushrods Included:	No
Valve Covers Included:	Yes
Valve Cover Material:	Fabricated Aluminum
Valve Cover Finish:	Polished
Valve Cover Mounting Style:	Perimeter Bolt
Accessory Bolt Holes Drilled:	n/a
Valve Guides Included:	Yes
Valve Guide Material:	Bronze
Valve Seats Machined:	Yes
Valve Seat Machine Style:	3-angle
Valve Seat Material:	Ductile iron
Steam Holes Drilled:	n/a
Oiling Style:	Through pushrod
Machined for O-Ring:	No
Heat Crossover:	No
Cylinder Head Bolts Included:	No
Quantity:	Sold as a kit.
Notes:	Designed for use with hydraulic flat tappet camshafts less than .600 in. lift. Requires use of hardened pushrods.This kit is designed to use our 351C heads with your Windsor block.
