Conjunto de tercer miembro de caja TorqueWorm® HD LSD de 9 pulg. y 31 estrías para Ford

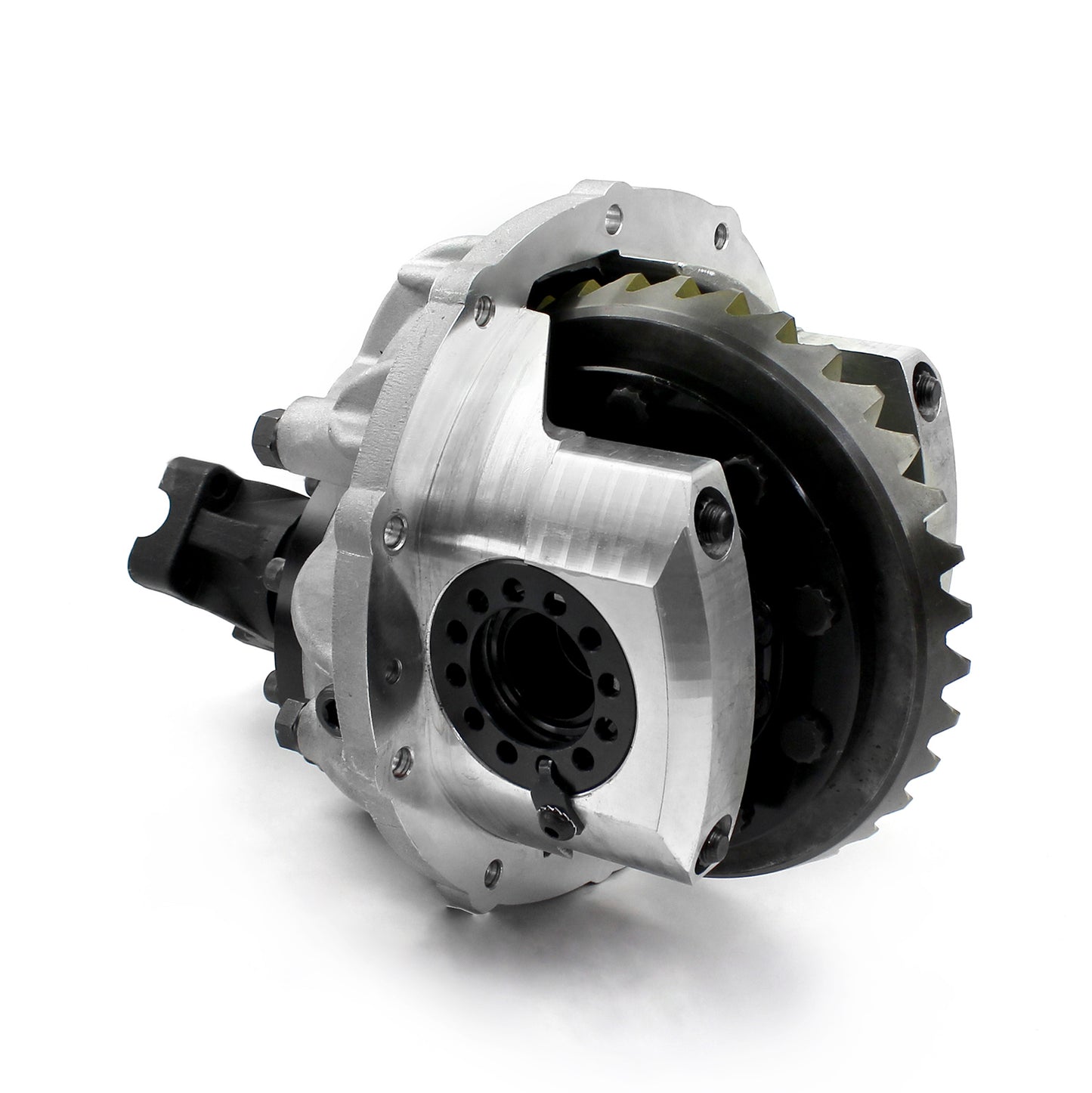

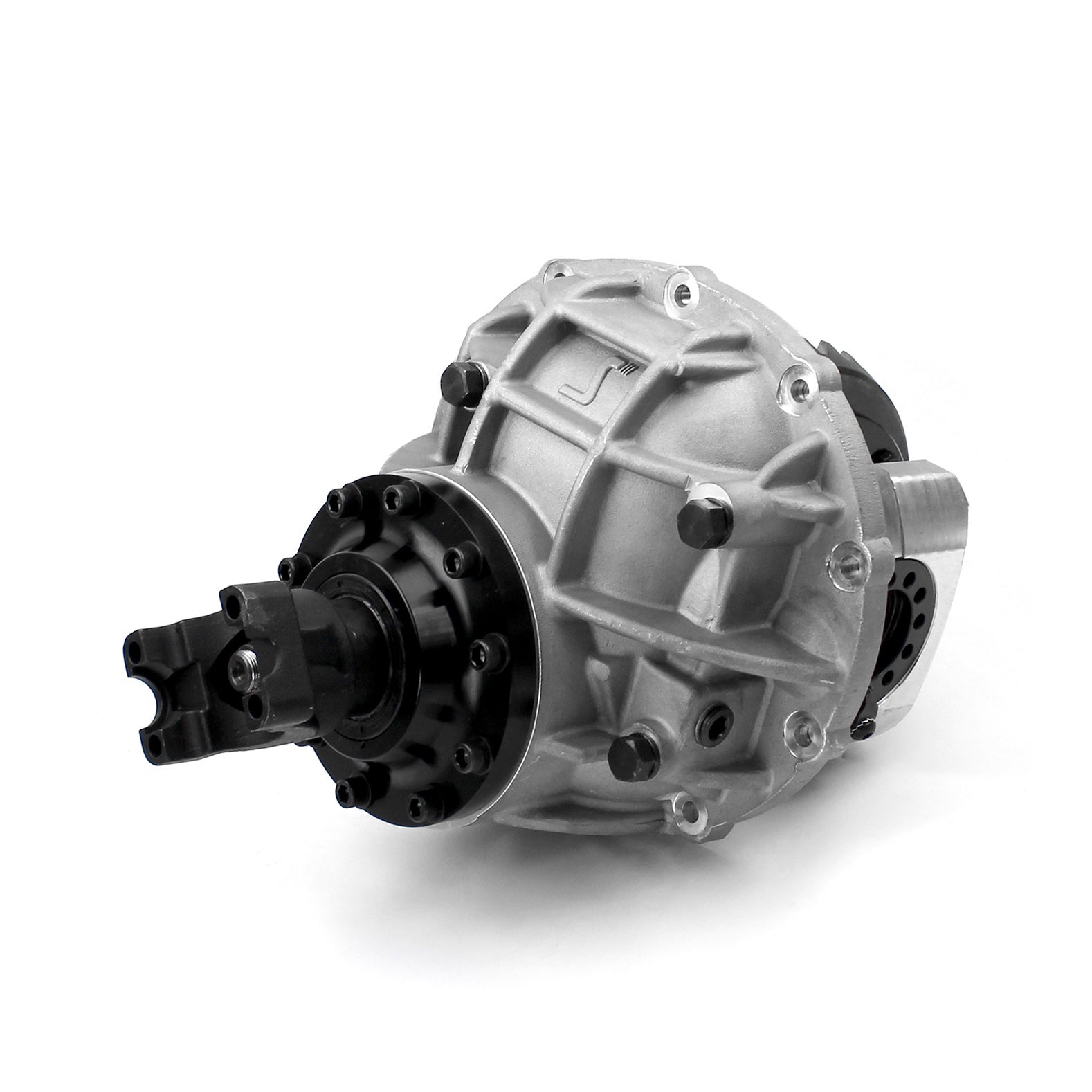

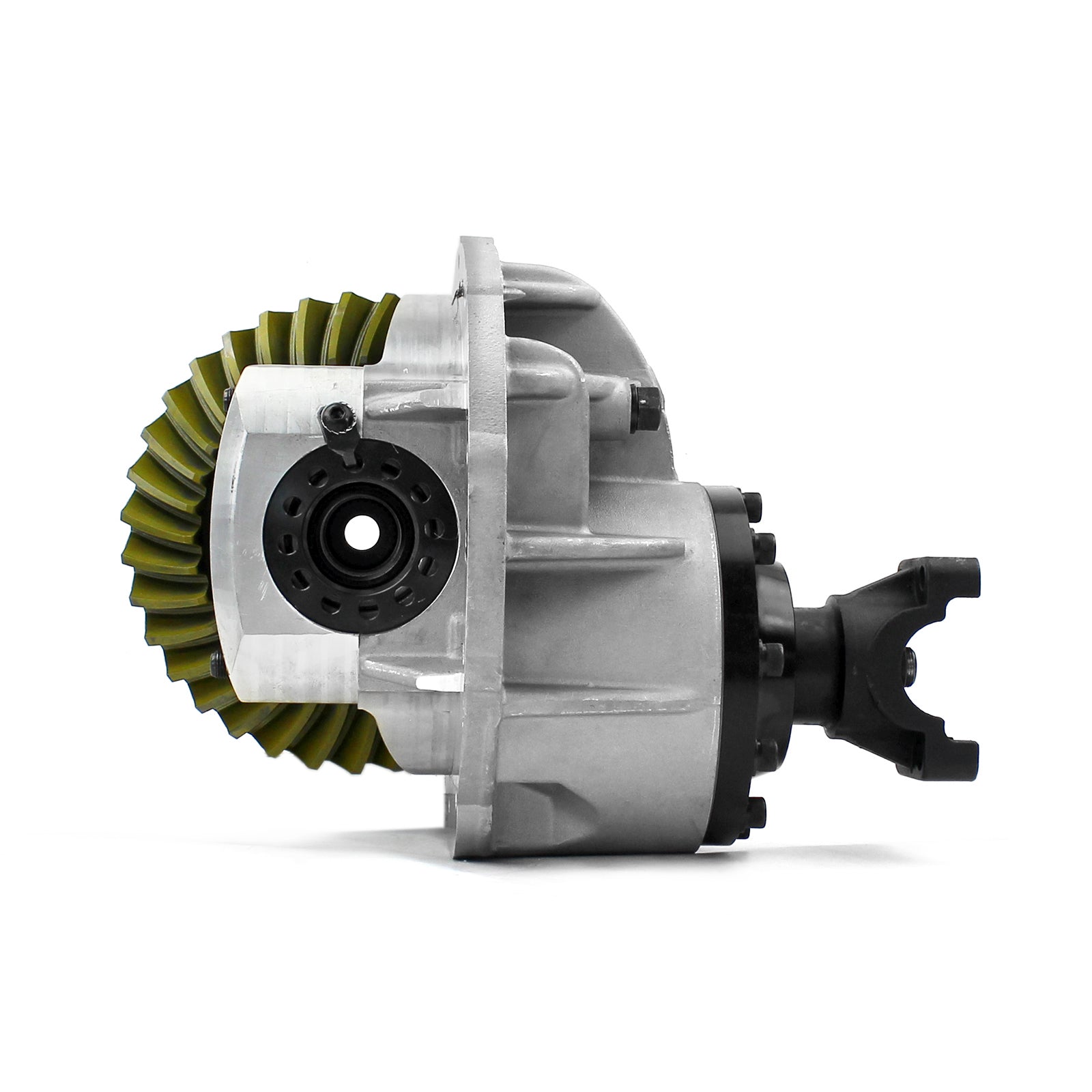

Los conjuntos de tercer miembro Speedmaster Ford de 9 pulgadas están diseñados para que puedas obtener la potencia que necesitas. Incluyen una sección central de aluminio con diseño de perno pasante, así como nuestro famoso diferencial de deslizamiento limitado con engranajes TorqueWorm, horquilla serie 1350, soporte de piñón Daytona y relación de transmisión. Ya sea que estés ensamblando un vehículo de uso diario, un street rod o un auto de carreras, los conjuntos de tercer miembro Speedmaster te brindarán la durabilidad que tu vehículo merece.

Brand:	Speedmaster
Part Number:	1-215-003
Part Type:	Third Member Complete Assembly
Product Line:	HD Aluminum Case
Case Style:	Ford 9"
Case Material:	Aluminum
Main Cap Material:	Aluminum
Main Cap Retention Style:	Bolt
Carrier Bearing Diameter (in):	3.250 in.
Pinion Support Bolt Quantity:	10
Standard Pinion Location:	Yes
Ring Gear Load Bolt:	No
Ring and Pinion Included:	Yes
Ring and Pinion Ratio:	All Ratios Available
Yoke Included:	Yes
Yoke Style:	1350 Series
Bearings Included:	Yes
Carrier Type:	Torque Worm LSD
Quantity:	Sold individually.
Notes:	Select desired gear ratio.

CASE: Our aluminium cases are made from A356-T6 aluminium, our bearing caps are one-piece billet, with a through bolt design and extra material is added to the bearing caps. These cases are offered in 3.250" & 4.000" bearing diameter to accommodate 28, 31, 35 and 40-spline carriers and spools. These extras truly make this Aluminium case the ultimate Ford 9" case, rated to +1000 horsepower. All our aluminium third members come with 12 point through bolts and a billet pinion support, which gives us an advantage over our competition.

The TORQUEWORM is a torque biasing 6 pinion gear type limited-slip unit. This is a preloaded unit allowing for a faster-reacting unit. Unlike our competitors that only use 3 or 4 pinion gears. The use of 6 pinion gears means the stress on gears is spread over a greater surface area, reducing the load on all internal components. The internal components are made from EN36 Material as used in racing such as V8 SUPERCAR. The outer cases made from 8620 Chrome-Nickel-Moly steel and the case hardened for long life and improved strength.

The GEARSETS used are HI-PERFORMANCE 8620 Chrome-Nickel-Moly Steel. CNC machined from high-quality forgings to our exacting specifications and then heat-treated to obtain high impact and durability. Then lapped to allow for correct tooth contact and smoothness and for use in the performance market. The 8620 Gearset has proven itself in all forms of motorsport over the past 30 years.

YOKE: Speedmaster TDS Billet yokes are a long style unit fully CNC machined to our specifications.

NOTE: These 3rd members are to be used with a mineral-based oil of a range of EP140 Extreme pressure at a minimum, NO split grades eg. 85/140 (These are not recommended), failure to use the correct oil can result in gear damage, noise and may void your warranty.
