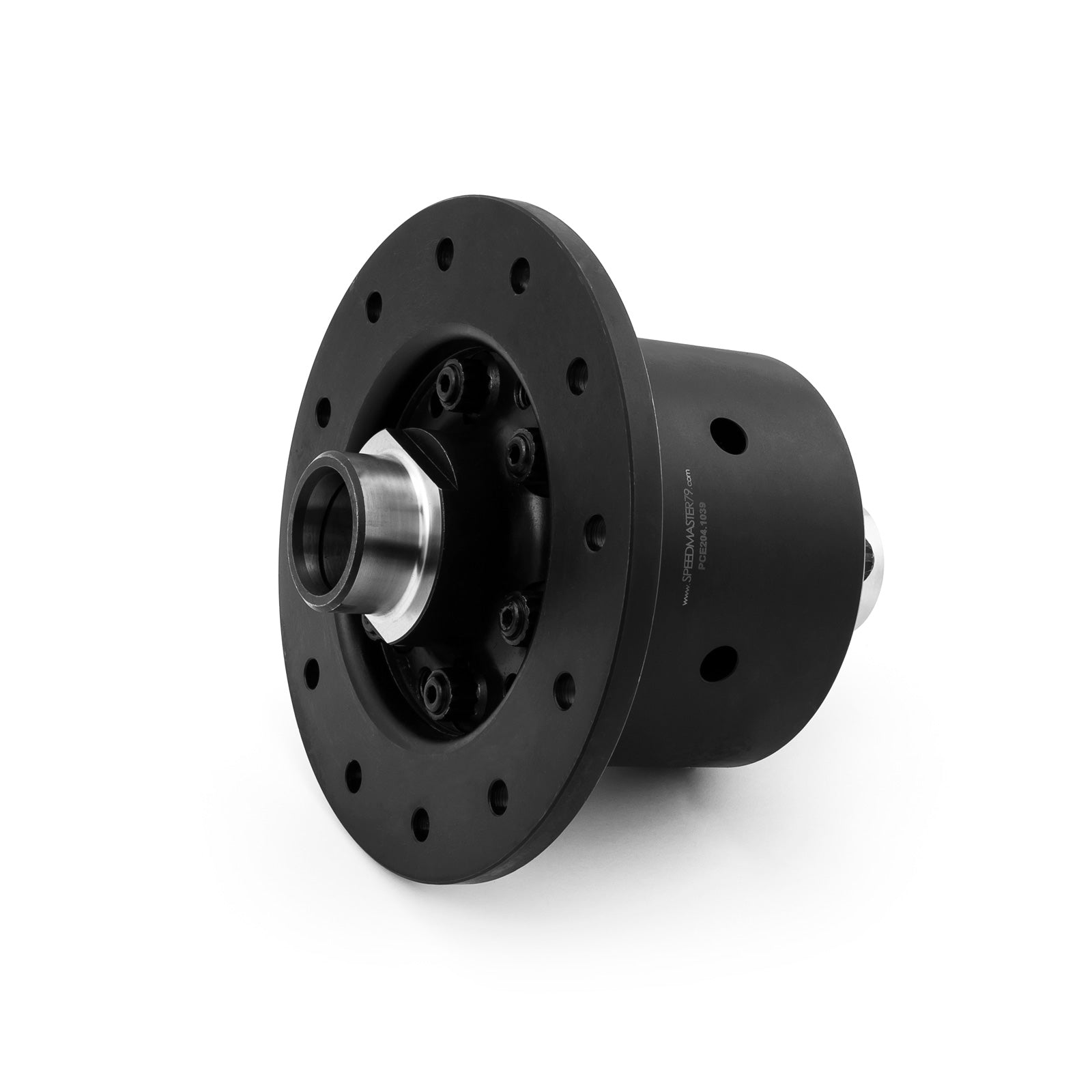

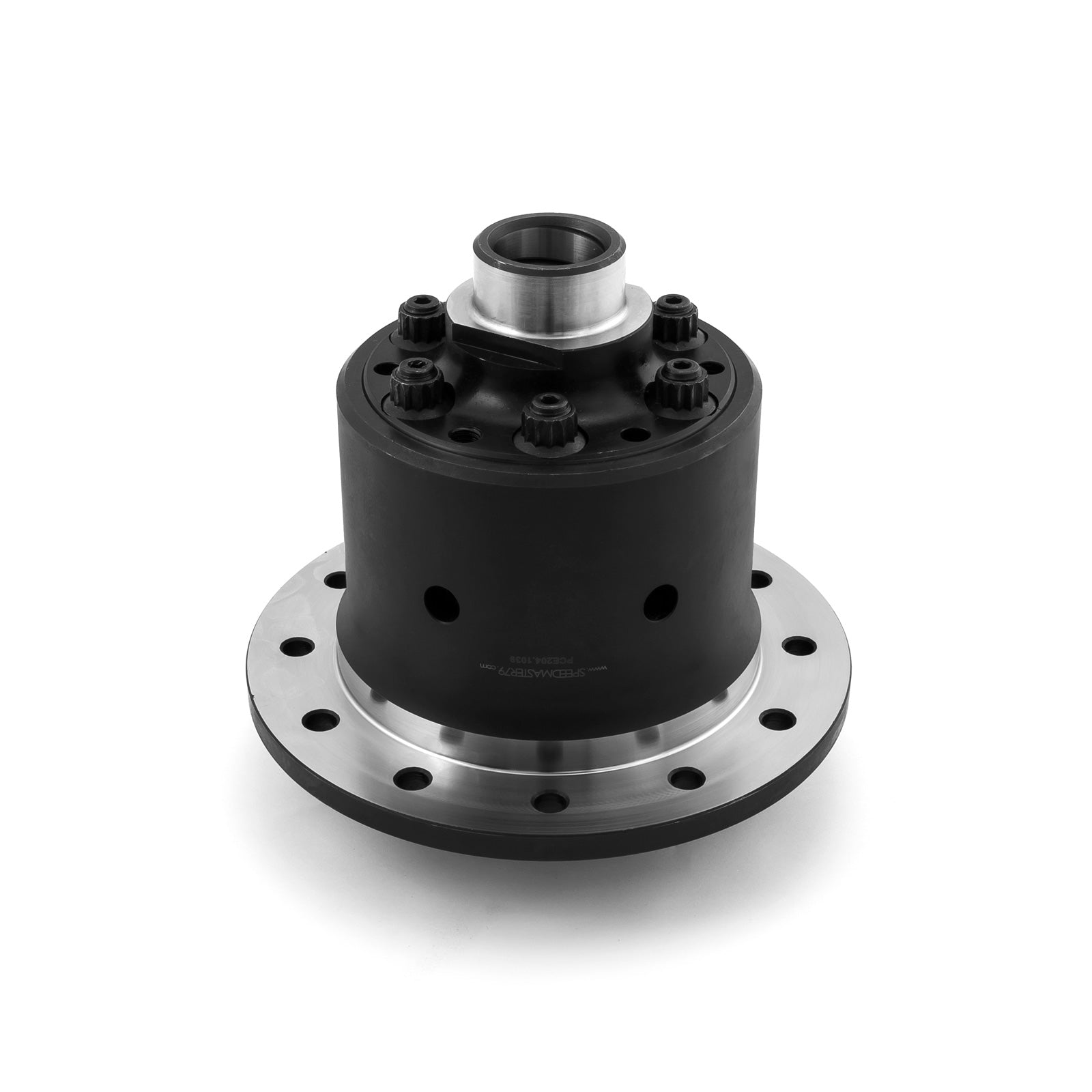

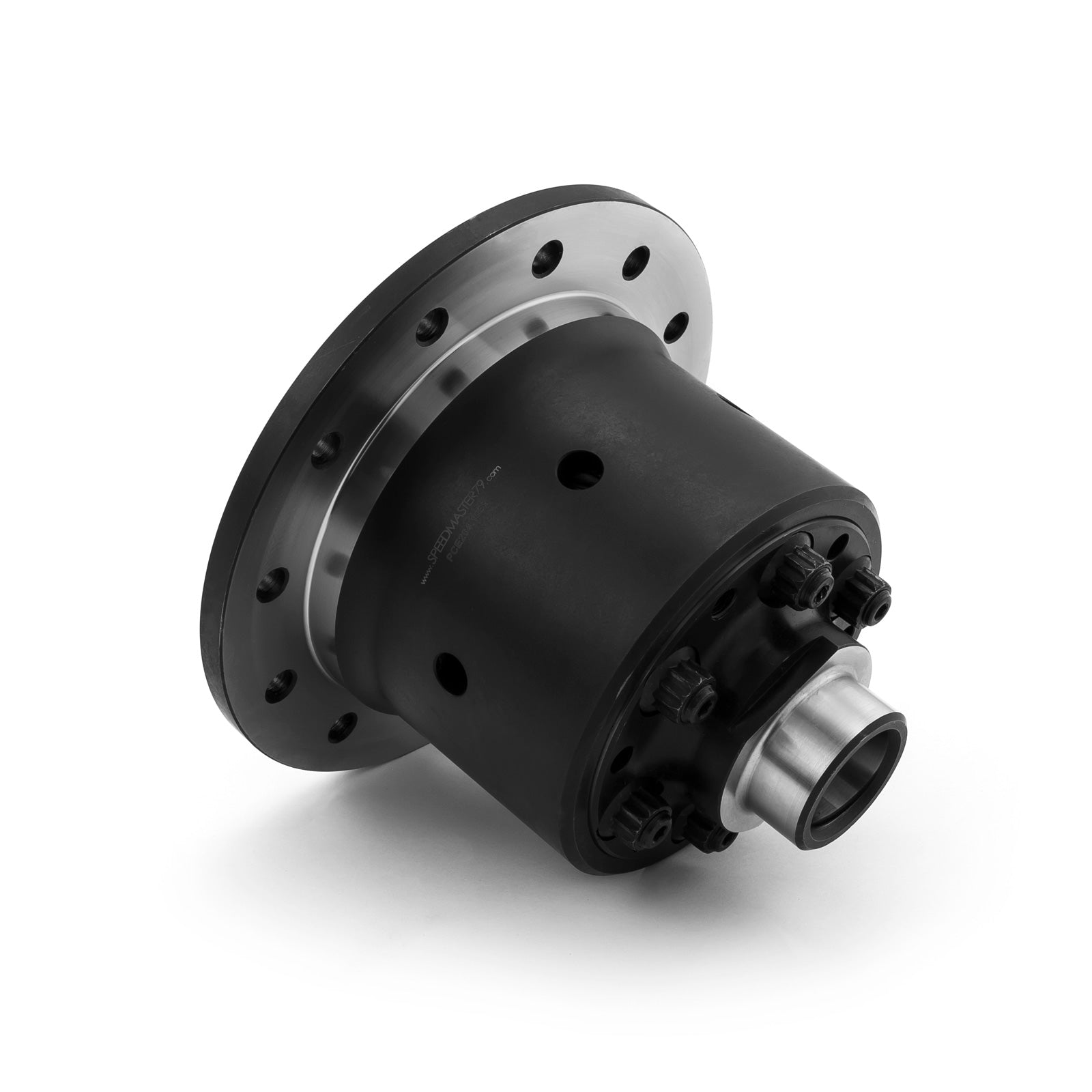

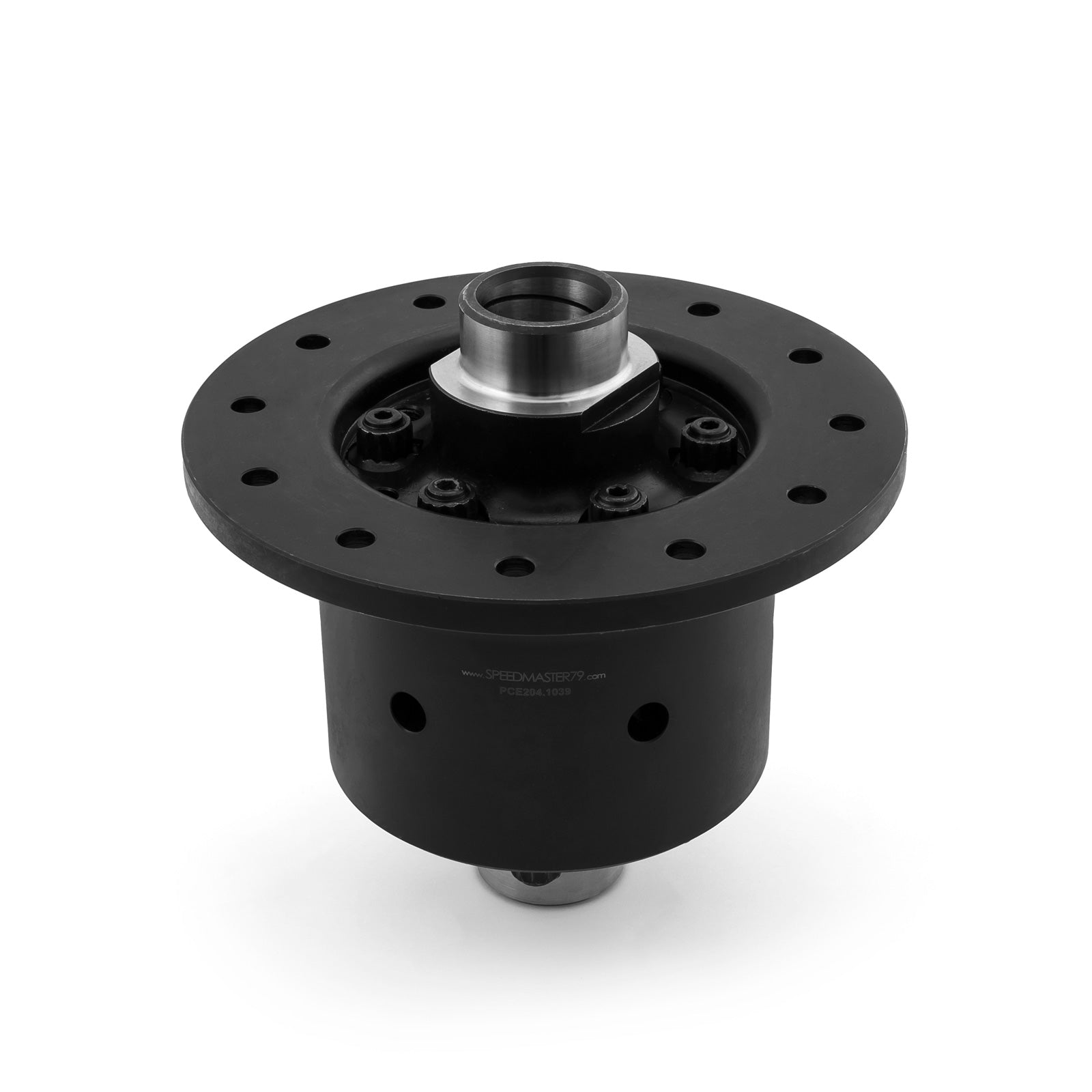

Diferencial de deslizamiento limitado TorqueWorm de 8.875" para automóvil, 12 pernos, 12 pines, 35 estrías, 3.07" en adelante

El TorqueWorm es una unidad de deslizamiento limitado de 6 piñones con polarización de par. Esta unidad precargada proporciona una reacción más rápida. El uso de 6 piñones permite distribuir la tensión sobre los engranajes en una mayor superficie, reduciendo la carga sobre todos los componentes internos. Estos componentes están fabricados con material EN36, el mismo que se utiliza en carreras. Las carcasas exteriores están fabricadas con acero al cromo-níquel-molibdeno 8620 y endurecidas para una mayor durabilidad y resistencia.

Brand:	Speedmaster
Part Number:	PCE204.1039
Part Type:	Differential Carrier
Differential Case Design Type:	GM 8.875 in. (12-bolt), passenger car
Aftermarket Carrier Style:	Limited slip
Cover Bolts:	12
Axle Shaft Spline Quantity:	35
Manufacturer of Axle:	GM / Speedmaster
Carrier Material:	Steel
Carrier Bearing Included:	No
Quantity:	Sold individually.
Notes:	With use of PCE203.1005 and PCE440.1017 in order to fit on standard cases.

The GM 8.875" (often rounded to 8.9") 12 Bolt axle is available in passenger car (GM 12P) and truck (GM 12T) rear axle configurations and features an 8.875" ring gear and 35 spline semi floating axle shafts. While both versions of the axle have similar specifications on paper, they do have unique differential carrier housings and most parts, including ring and pinion gears are not interchangeable. Because both axles are commonly referred to as GM 12 Bolt axles, it is important to know which version you have before ordering your parts.

The easiest way to tell them apart is that the passenger car version has a perfectly round differential cover while the truck version has an irregular shape.



---



---
