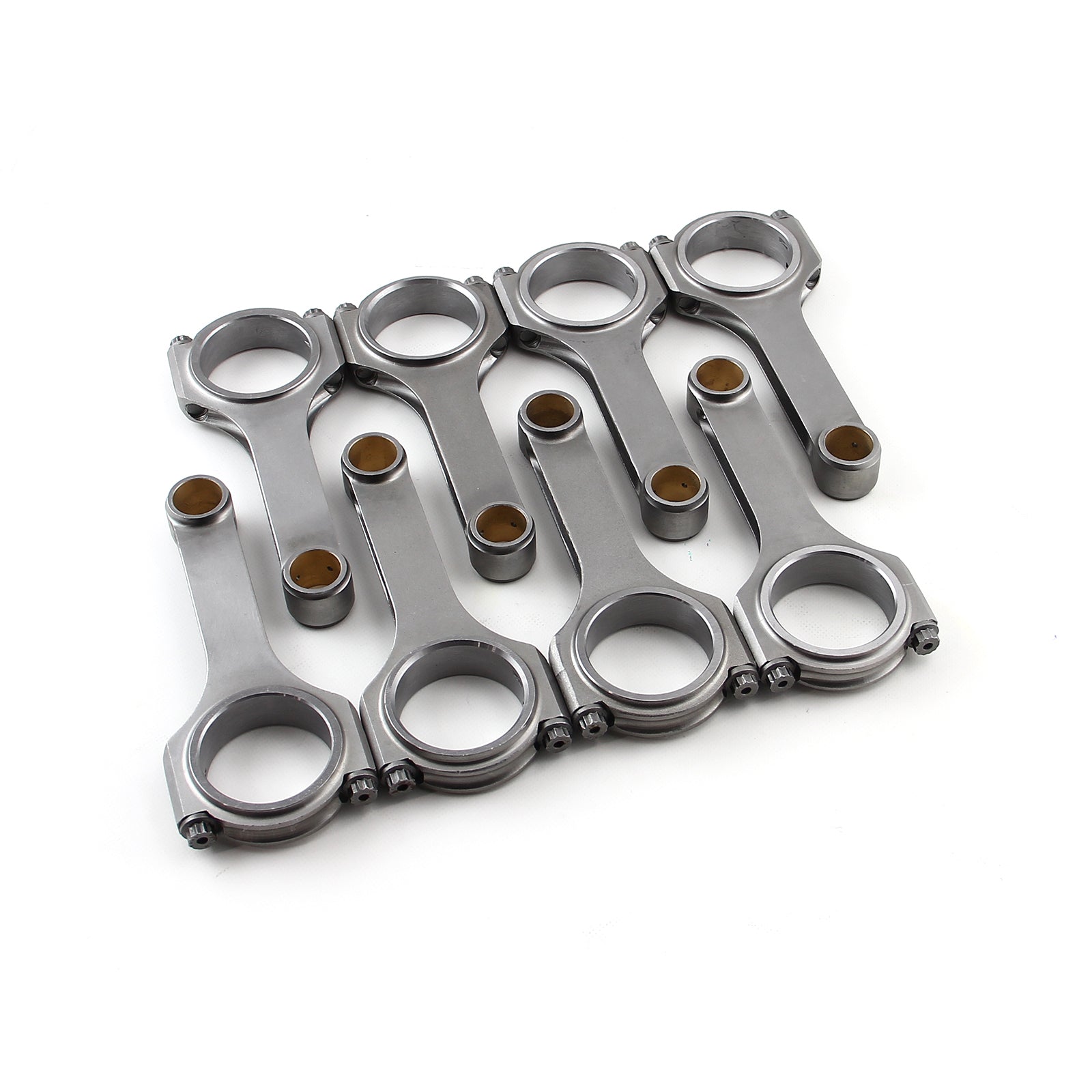

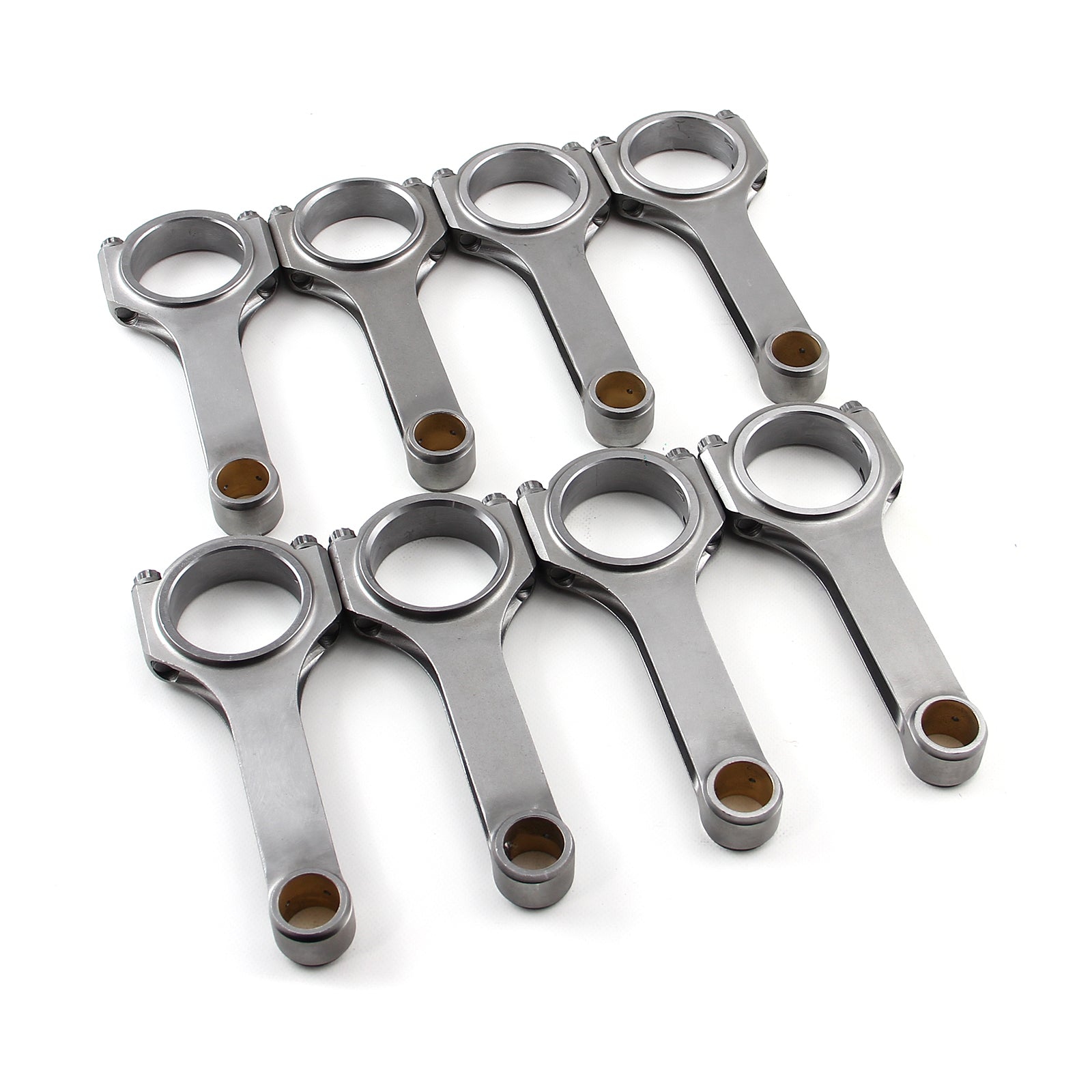

Viga en H de 6,300" 2,250" 0,927" 0,890" de ancho con buje de bronce 4340 Bielas

Las bielas Speedmaster H-Beam son de las más resistentes del mercado. Incorporan una tapa con pasador especial para una alineación precisa entre la tapa y la biela, y su perfil ofrece una holgura adicional para aplicaciones de carrera más larga. Las bielas Speedmaster H-Beam Street/Strip se fabrican con acero al cromo-molibdeno 4340 de calidad aeronáutica. Se someten a pruebas de rayos X y ultrasonidos, con todas las superficies granalladas y liberadas de tensiones.

Brand:	Speedmaster
Part Number:	PCE274.1130
Part Type:	Connecting Rod
Product Line:	H-Beam
Connecting Rod Length Center to Center (in):	6.300 in.
Connecting Rod Beam Style:	H-beam Street/Strip
Connecting Rod Material:	4340 Chromoly Steel
Connecting Rod Finish:	Shot-peened
Wrist Pin Style:	Full Floating
Clearanced for Stroker:	Yes
Cap Retention Style:	Through-bolt
Connecting Rod Bolt Brand:	PCE
Connecting Rod Bolt Diameter:	7/16 in.
Connecting Rod Bolt Material:	Chromoly steel
Fastener Yield Strength (psi):	200,000 psi
Connecting Rod Bolt Head Style:	12-point
Approximate Connecting Rod Weight (g):	702g
Rod Journal Diameter (in):	2.250 in.
Big End Bore Diameter (in):	2.210 in.
Pin End Bore Diameter (in):	0.927 in.
Big End Width (in):	0.890 in.
Advertised Horsepower Rating (hp):	700 hp
Advertised RPM Rating:	7,500 rpm
Weight Matched Set:	Yes
Remanufactured:	No
Magnafluxed:	Yes
Quantity:	Sold as a set of 8.
Tool:	Stroker Combinations
