Speedmaster ®
SKU:PCE435.1076

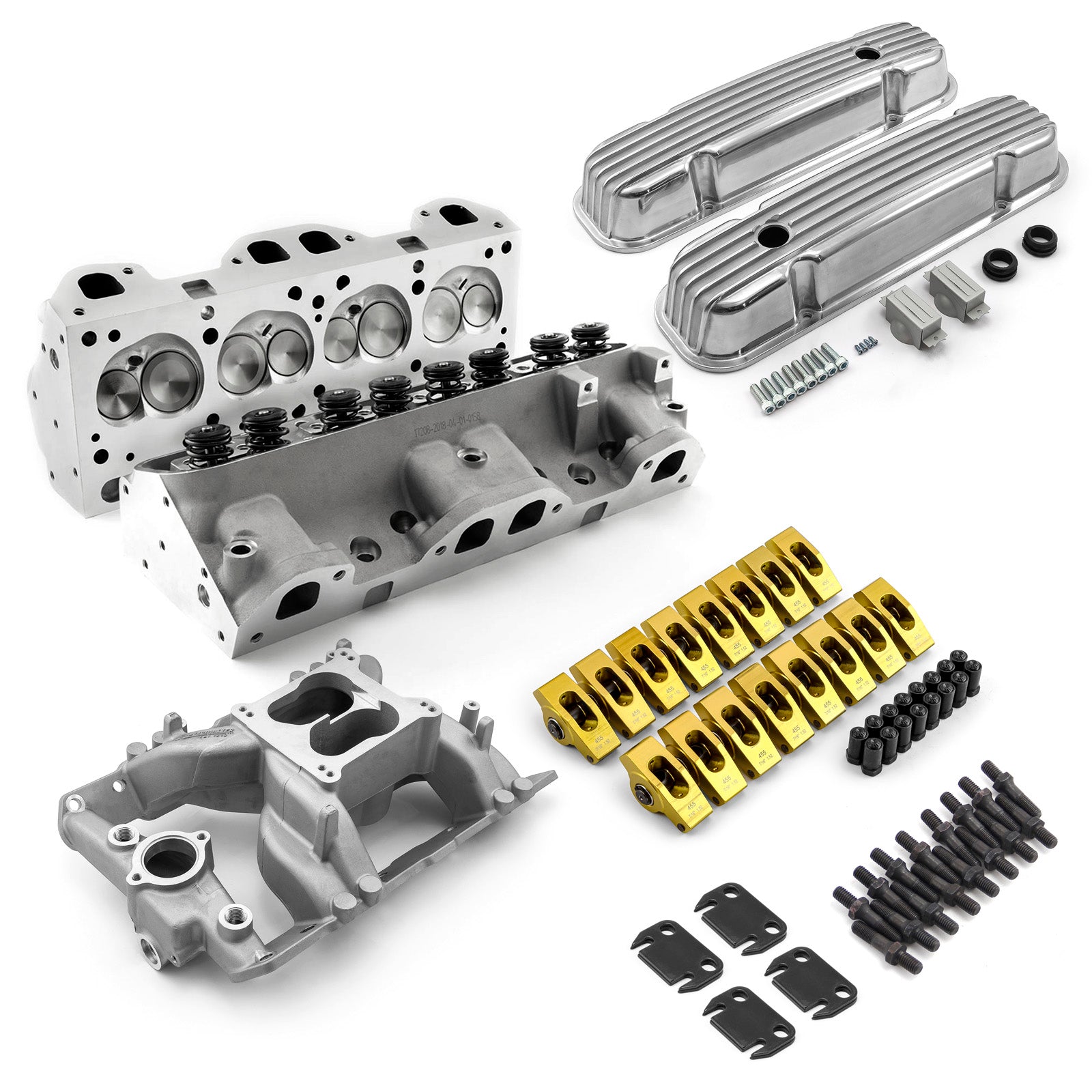

Kit combinado de culata y motor de extremo superior para Pontiac 400 455 Ram Air IV Hyd FT
Kit combinado de culata y motor de extremo superior para Pontiac 400 455 Ram Air IV Hyd FT
Precio habitual
$2,453.40 USD
Precio habitual
$2,726.00 USD
Precio de oferta
$2,453.40 USD
Agotado
Cantidad
No se pudo cargar la disponibilidad de retiro
- Estado del artículo: Para estrenar
- Envío en 15 días
- Garantía mundial limitada de 12 meses
Información
No pierda horas buscando las piezas que necesita para obtener el rendimiento deseado de su motor. Speedmaster ya lo ha hecho por usted; nuestros kits de motor de alta gama le ahorrarán el tiempo y la molestia de combinar componentes usted mismo. Estos kits están diseñados específicamente para ofrecerle el rendimiento que desea, a un mejor precio que comprar las piezas por separado.
Presupuesto
| Brand: | Speedmaster |
| Part Number: | PCE435.1076 |
| Part Type: | Cylinder Head Combo |
| Product Line: | Hydraulic Flat Tappet |
| Camshaft Included: | No |
| Intake Manifold Included: | Yes |
| Fuel Delivery Style: | Carbureted |
| Intake Material: | Aluminum |
| Intake Finish: | Satin |
| Carburetor Quantity: | One |
| Intake Style: | Dual plane |
| Intake Basic Operating RPM Range: | 1500-7,500 |
| Intake Manifold Model (descriptive): | SpeedmasterMidRise Air |
| Carburetor Flange: | Square bore |
| Timing Chain and Gears Included: | No |
| Lifters Included: | No |
| Gaskets Included: | No |
| Cylinder Head Style: | Assembled |
| Cylinder Head Material: | Aluminum |
| Cylinder Head Finish: | Natural |
| Combustion Chamber Volume (cc): | 72 cc |
| CNC-Machined Combustion Chamber: | Yes |
| Intake Runner Volume (cc): | 215 cc |
| CNC-Machined Intake Runner: | No |
| CNC-Machined Exhaust Runner: | No |
| Intake Port Shape: | Ram Air IV |
| Intake Port Location: | Standard |
| Exhaust Port Shape: | Ram Air IV |
| Exhaust Port Location: | Standard |
| Spark Plug Style: | Straight |
| Comp. Valve Job: | Yes |
| Intake Valves Included: | Yes |
| Intake Valve Diameter (in): | 2.110in. |
| Exhaust Valves Included: | Yes |
| Exhaust Valve Diameter (in): | 1.660in. |
| Intake Valve Angle: | 14deg. |
| Exhaust Valve Angle: | 14deg. |
| Valve Springs Included: | Yes |
| Outside Diameter of Outer Spring (in): | 1.450 in. |
| Damper Spring Included: | Yes |
| Number of Springs Per Valve: | Dual |
| Retainers Included: | Yes |
| Retainer Material: | Chromoly steel |
| Locks Included: | Yes |
| Lock Style: | 10 degree |
| Valve Stem Seals Included: | Yes |
| Valve Stem Seal Style: | Positive stop |
| Rocker Arms Included: | Yes |
| Rocker Arm Studs Included: | Yes |
| Rocker Arm Nuts Included: | Yes |
| Rocker Arm Nut Thread Size: | 7/16 in. |
| Guideplates Included: | Yes |
| Guideplate Pushrod Size: | 5/16 in. |
| Pushrods Included: | No |
| Valve Covers Included: | Yes |
| Accessory Bolt Holes Drilled: | Yes |
| Valve Guides Included: | Yes |
| Valve Guide Material: | Bronze |
| Valve Seats Machined: | Yes |
| Valve Seat Machine Style: | 3-angle |
| Valve Seat Material: | Ductile iron |
| Steam Holes Drilled: | n/a |
| Oiling Style: | Through pushrod |
| Machined for O-Ring: | No |
| Heat Crossover: | No |
| Cylinder Head Bolts Included: | No |
| Quantity: | Sold as a kit. |
| Notes: | Designed for use with hydraulic flat tappet camshafts less than .600 in. lift. Requires use of hardened pushrods. The valve and seat combination, used in these heads, is not recommended for use with mechanical roller camshaft. |
