Speedmaster ®
SKU:PCE286.1054

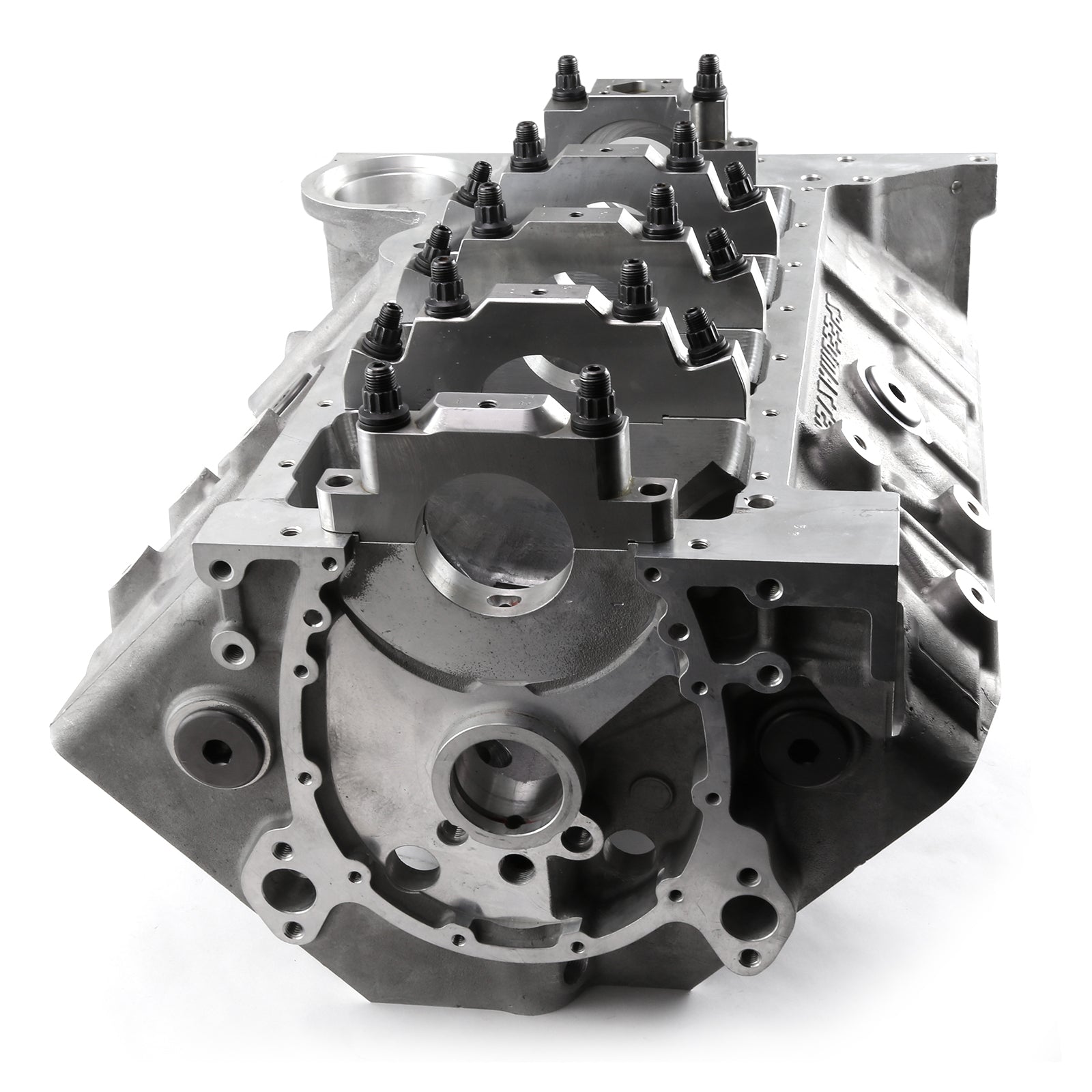

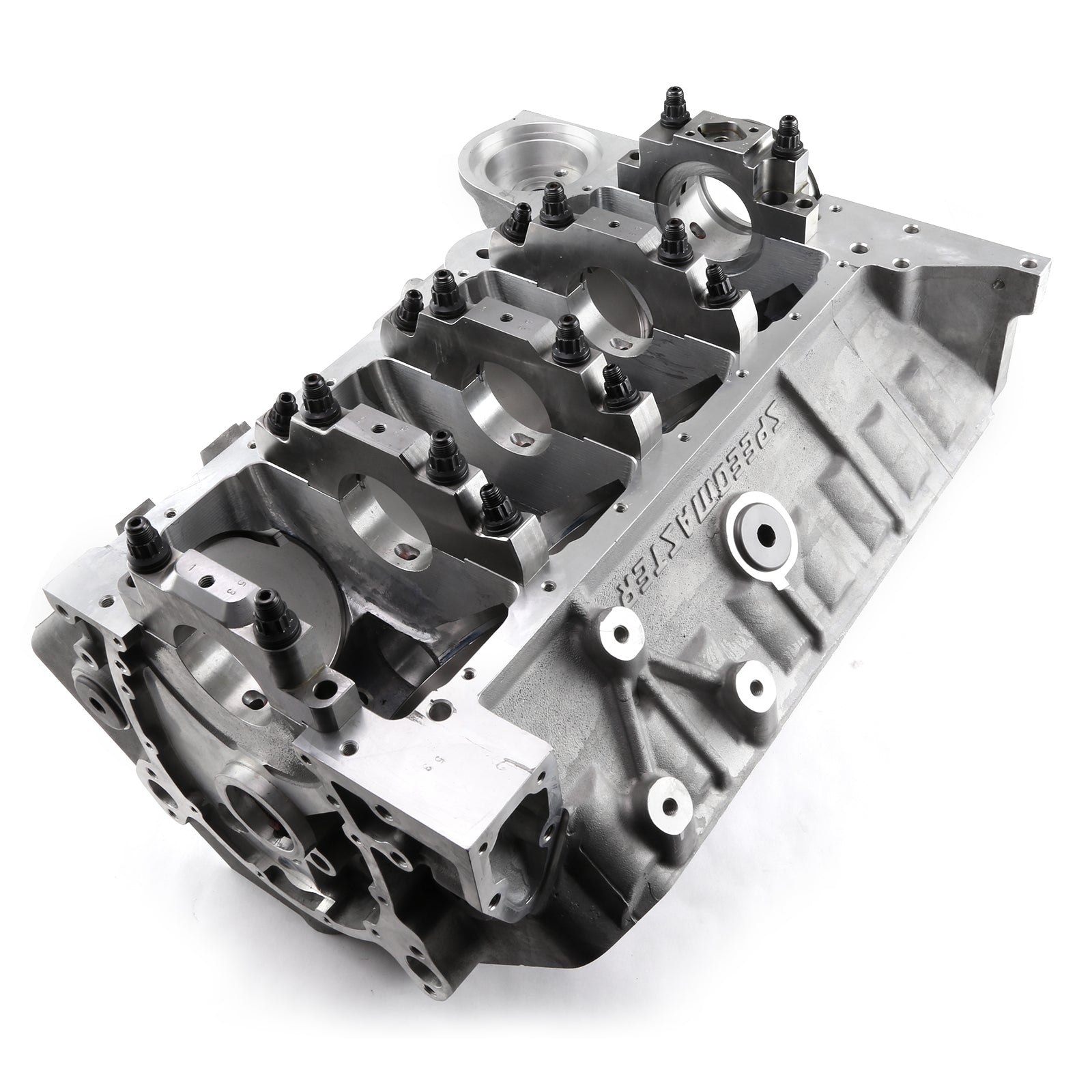

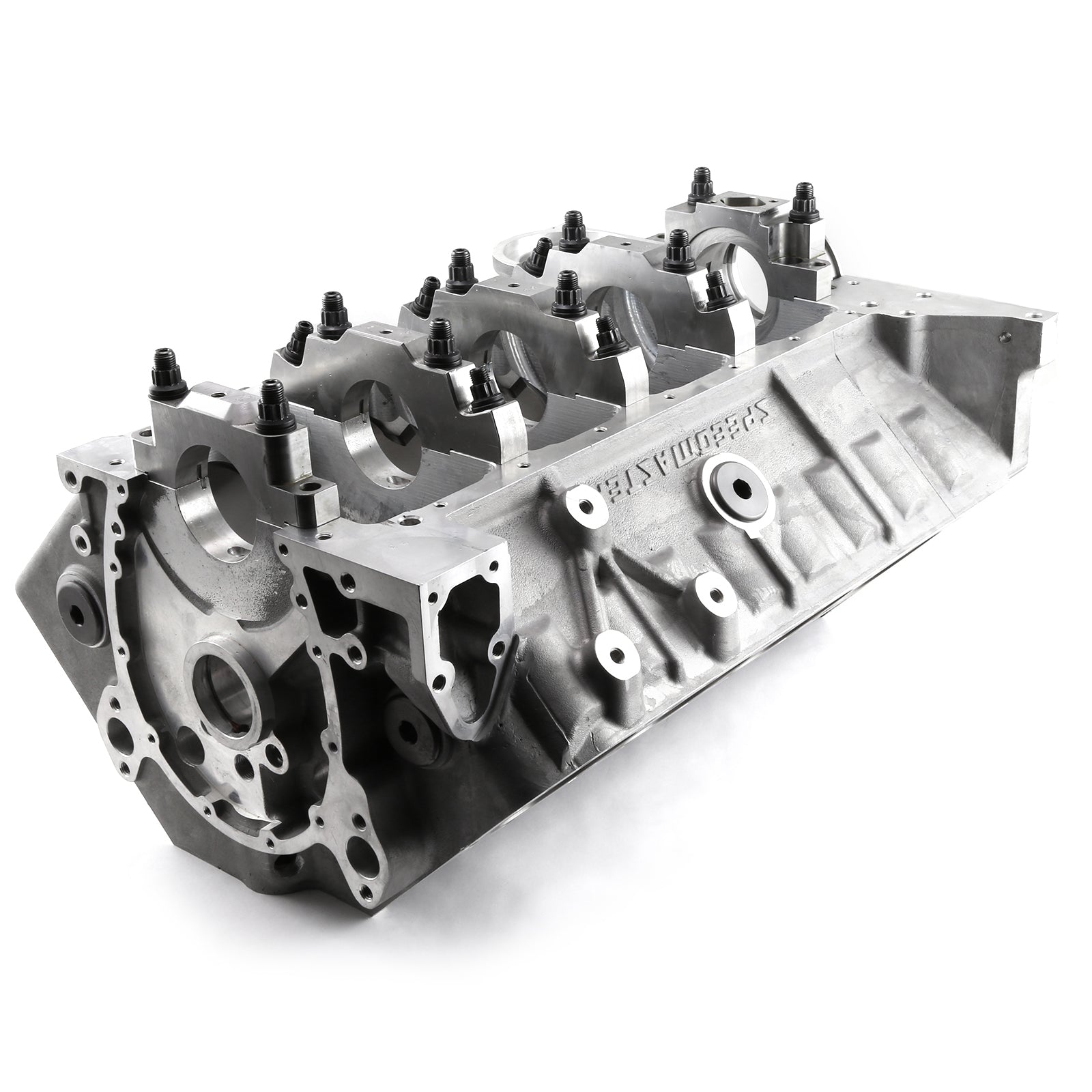

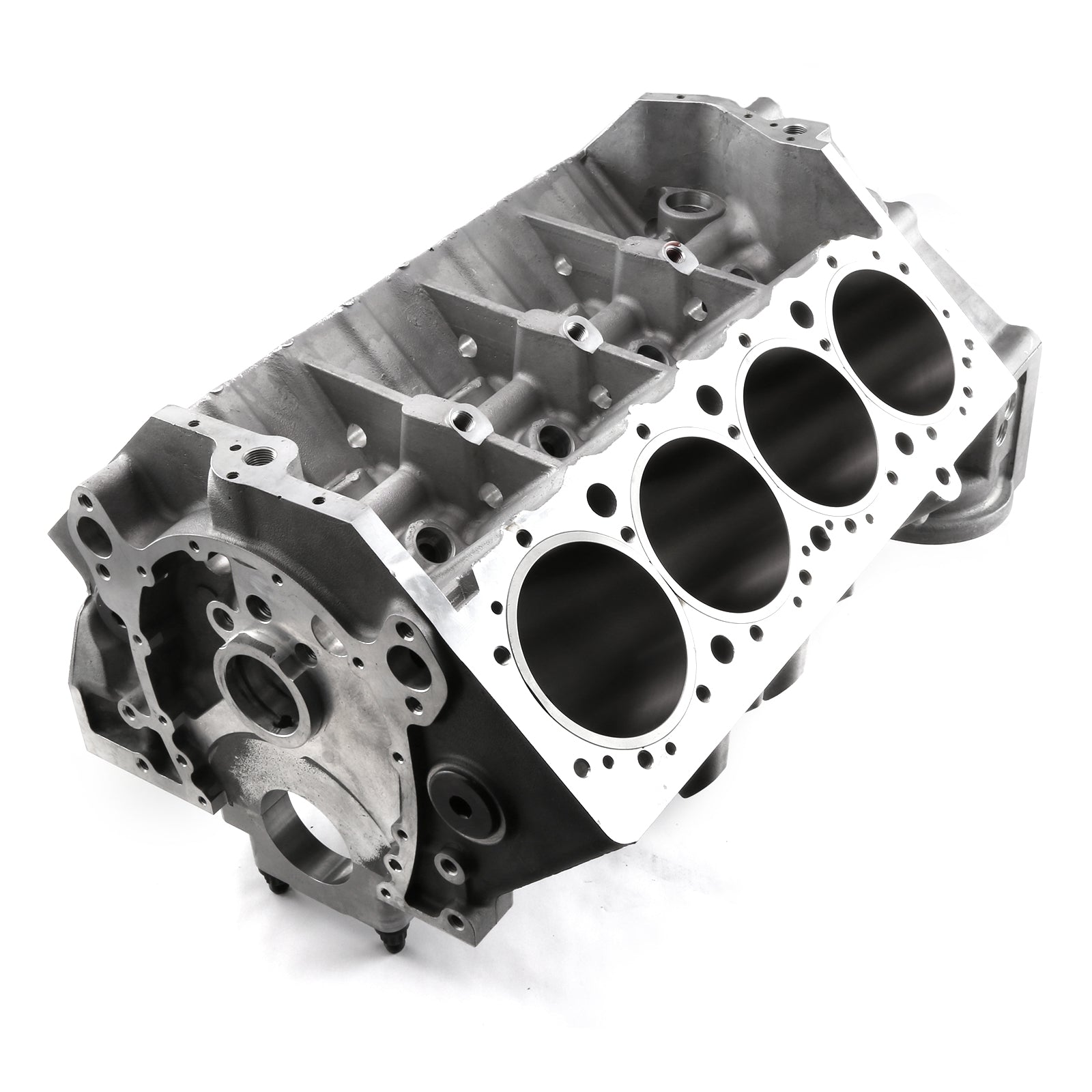

Bloque de motor de aluminio Speedmaster Chevy SBC 350 B-4.000 DH-9.025 con espárrago de cabeza de 3/8"
Bloque de motor de aluminio Speedmaster Chevy SBC 350 B-4.000 DH-9.025 con espárrago de cabeza de 3/8"
Precio habitual
$2,916.60 USD
Precio habitual
Precio de oferta
$2,916.60 USD
Agotado
Cantidad
No se pudo cargar la disponibilidad de retiro
- Estado del artículo: Para estrenar
- Envío en 3 días
- Garantía mundial limitada de 12 meses
Información
Presupuesto
| Brand: | Speedmaster |
| Part Number: | PCE286.1054 |
| Part Type: | Engines, Bare Block |
| Block Material: | A-356 Aluminum |
| Cylinder Bore Diameter: | 4.000 in. |
| Bore & Stroke: | 4.155 in. x 4.000 in. Max Recommended |
| Cam Journal OD: | Standard SBC - 1.869 |
| Cam Plug: | 2.375 in. Dia. Cup Plug |
| Cylinder Wall Thickness: | 0.275 in. min @ 4.155 in. Bore |
| Deck Height: | 9.025 in. |
| Deck Thickness: | 0.675 in. Min |
| Fuel Pump : | Electric or Mechanical |
| Fuel Pump Pushrod: | n/a |
| Freeze Plugs: | 10 x 1-5/8 in. Press In Cup Plugs |
| Lifter Bores: | SBC 0.8427-0.8437 in. |
| Main Bearing Size: | 2.450 in. (SBC 350) |
| Main Bearing Bore: | 2.649 in. (SBC 350) |
| Main Cap Bolts: | #1 7/16 in. (2) 3/8 in. (2) #2, 3, 4 7/16 (2) Splayed (2) #5 7/16 in. (2) 3/8 in. (2) |
| Main Cap Press: | 0.005 in. |
| Main Caps: | All 5 Billet Steel. 3 Center Caps Splayed |
| Main Cap Register: | Deep Stepped Register (No Need for Dowels) |
| Oil System: | Wet Sump - Main Priority Oiling (Can Use Dry Sump) |
| Oil Pump Shaft: | 350 0.481 in. OD - Standard |
| Oil Filter: | SBC, Uses 2 Bolt Adapter |
| Oil Pan: | Standard 350 SBC |
| Rear Main Seal: | Standard 350 SBC - 2pc |
| Serial No. Location: | n/a |
| Starter: | Dual Bolt Pattern |
| Stud Holes, Head: | Blind Holes |
| Timing Chain/Gears: | Standard SBC Components |
| Timing Cover: | Standard Cam Location SBC |
| Torque Specs: | 1 - 5 7/16 in. Bolts 65 ft. lbs. 1 & 5 3/8 in. Bolts - 35 ft. lbs. |
| Weight: | 110 Lbs @ 4.0 in. Bore |
| Quantity: | Sold individually. |
| Notes: | Check hood clearance before installing. Block orifices must all be checked for accuracy before assembly. Non Finished refers to bores not being finished honed. Slightly undersized to machine at your discretion. This block features 3/8 stud holes. Will require PCE279.1029 head stud kit. |
Características: Camisas de hierro dúctil, paredes y cubiertas de cilindro extra gruesas, tuberías principales de 4 pernos, resaltes agrandados para taqués descentrados o sobredimensionados, y orificios festoneados para la camisa de agua para una mejor refrigeración. Cilindros siameses, doble patrón de pernos para el montaje del motor de arranque para mayor espacio libre. Entradas de aceite externas delanteras y traseras, y provisiones para cruce y restrictor para simplificar la instalación de tuberías con bomba externa. Tapones de congelación roscados.
