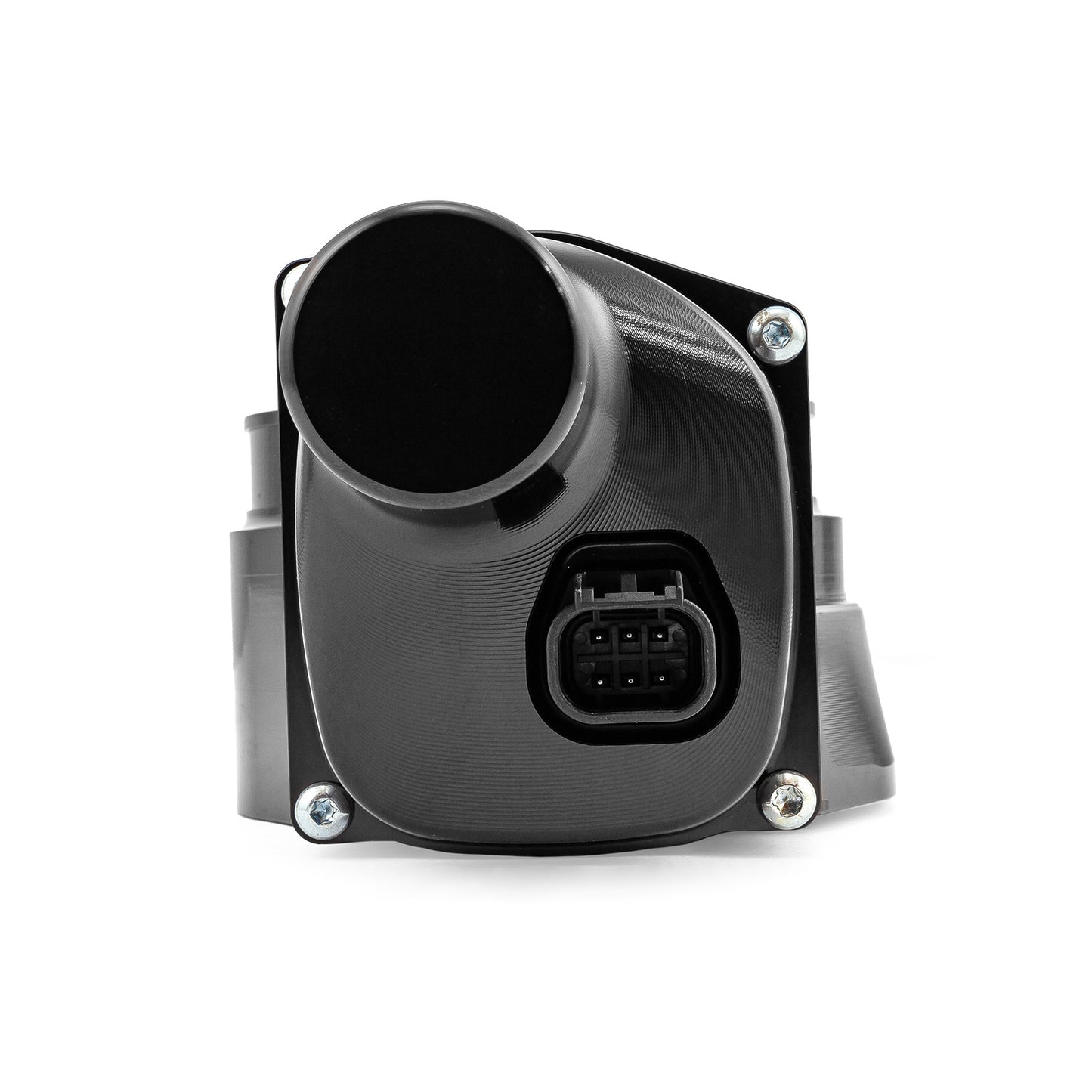

102mm Fly By Wire LS2 4 Bolt High Flow Throttle Body Black

The Speedmaster throttle body begins as a billet of 6061- T6 aluminum for superior quality and is introduced to a state-of-the-art CNC machine. This body has a much larger diameter then your existing throttle body, measuring 102mm. The quality of these throttle bodies are better than others available today. The body is alloy machined finish, looks beautiful when you pop the bonnet. These can be used on std or aftermarket plenum manifolds, that have a 4bolt pattern.

Brand:	Speedmaster
Part Number:	PCE138.1012.01
Part Type:	Throttle Body
Throttle Body Style:	Multi-port injection, Fly by Wire
Venturi Quantity:	1
Venturi Diameter (mm):	102 mm
TPS Sensor Included:	No
IAC Motor Included:	No
Gaskets Included:	Yes
Hardware Included:	Yes
Injectors Included:	No
Throttle Body Material:	Billet Aluminum
Throttle Body Finish:	Black Anodized
Quantity:	Sold individually.
Notes:	Will also fit FAST intake manifolds. Designed for drive-by-wire applications. Features GM 6 Pin Connector

Features
Sealed throttle shaft roller bearings
Stamped throttle linkage arm
Fits LS2 and FAST LSX manifolds


The bolt hole measurements are as follows:
Horizontal = 105mm
Vertical = 70mm

Please note: high performance parts are not direct replacement parts for OEM parts, and may not fit your application as original OEM parts, and may require slight modifications depending on the intended purpose of some applications.
