Speedmaster®
SKU:PCE145.1017

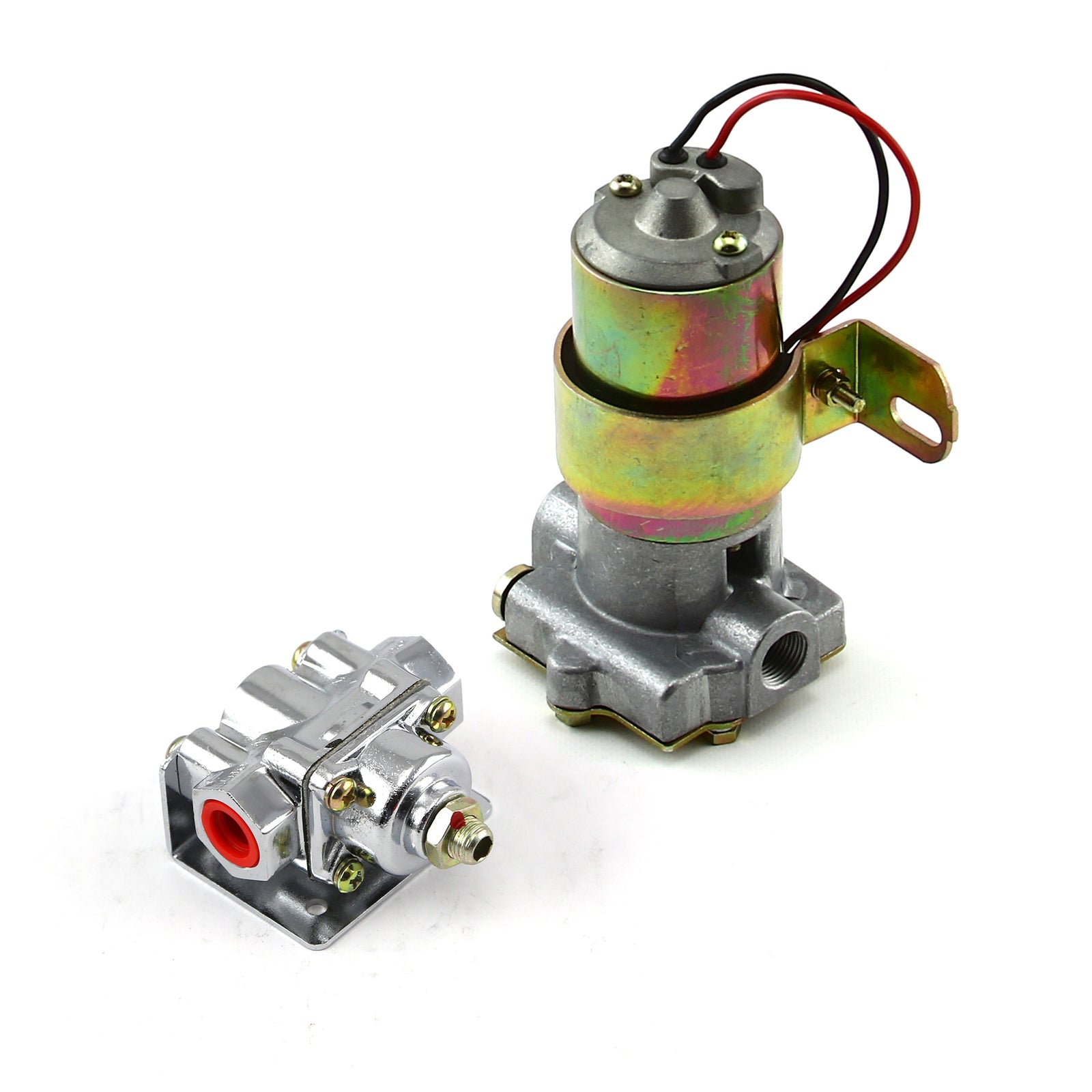

140 Gph @ 14 PSI Universal Electric Fuel Pump Regulator Kit
140 Gph @ 14 PSI Universal Electric Fuel Pump Regulator Kit
In stock
Couldn't load pickup availability
- Item Condition: Brand New
- Ships within 5 days
- 12-Month Limited Worldwide Warranty
Information
Specifications
| Brand: | Speedmaster |
| Part Number: | PCE145.1017 |
| Part Type: | Fuel Pump, Electric External |
| Fuel Pump | |
| Free Flow Rate: | 140 gph |
| Maximum Pressure (psi): | 14 psi |
| Inlet Quantity: | One |
| Inlet Attachment: | Female threads |
| Inlet Size: | 3/8 in. NPT |
| Outlet Quantity: | One |
| Outlet Attachment: | Female threads |
| Outlet Size: | 3/8 in. NPT |
| Quantity: | Sold individually. |
| Notes: | This pump flows 120 gph at 9 psi. |
| Fuel Pressure Regulator | |
| Pressure Range (psi): | 4 - 9 |
| Regulator Style: | Non-return |
| Regulator Location: | Inline |
| Boost/Vacuum Reference Port: | No |
| Gauge Port: | No |
| Mounting Bracket Included: | Yes |
| Fittings Included: | No |
| Rebuildable: | Yes |
| Inlet Quantity: | One |
| Inlet Attachment: | Female threads |
| Inlet Size: | 3/8 in. NPT |
| Outlet Quantity: | Two |
| Outlet Attachment: | Female threads |
| Outlet Size: | 3/8 in. NPT |
| Regulator Material: | Aluminum |
| Regulator Finish: | Polished Chrome |
| Quantity: | Sold individually. |
Speedmaster electric fuel pumps feature an improved design for street and strip applications, a new lower housing casting for enhanced fuel flow. These pumps have a 140 gph flow rate, only draw 4 amps, and have a maximum pressure of 14 psi with an externally accessible pressure relief valve. They weigh only 3 lbs., and include a mounting bracket. These Speedmaster electric fuel pump is compatible with alcohol or methanol fuels.
The needle and seat assemblies that are installed in Speedmaster carburetors can sufficiently control fuel pressure up to about 8 psi. If the fuel pump is putting out more than 8 psi, a regulator should be used to keep the fuel pressure within safe limits and avoid the possibility of flooding. Speedmaster manufactures a number of regulators for most any need.
