Speedmaster®
SKU:PCE553.1003

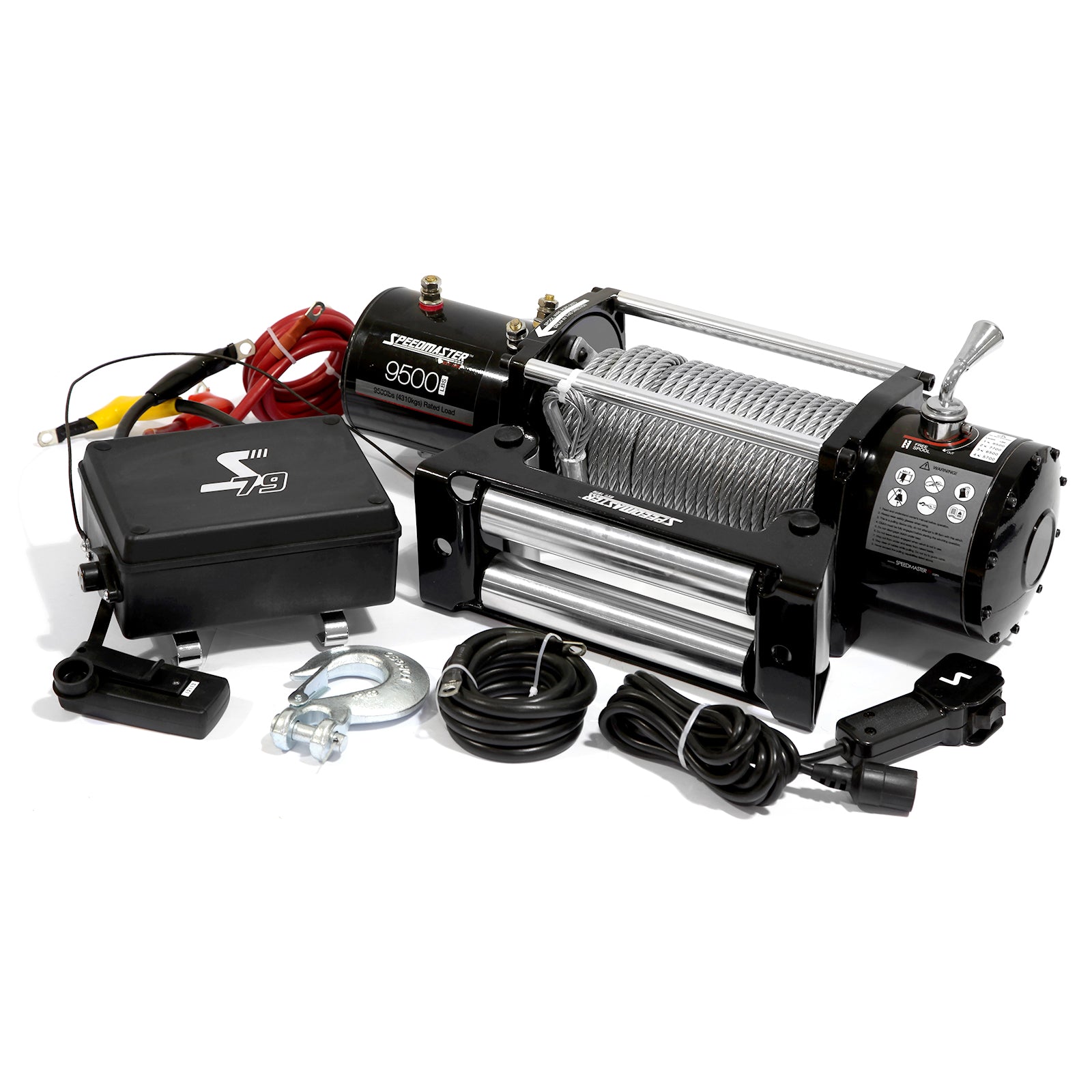

9500lbs / 4310kgs 12V Electric 4wd Winch Kit w/ Wireless Remote Control
9500lbs / 4310kgs 12V Electric 4wd Winch Kit w/ Wireless Remote Control
In stock
Couldn't load pickup availability
- Item Condition: Brand New
- Ships within 3 days
- 12-Month Limited Worldwide Warranty
Information
Specifications
| Brand: | Speedmaster |
| Part Number: | PCE553.1003 |
| Part Type: | Winch |
| Winch Style: | Electric |
| Pull Rating (lbs): | 9,500 lbs. (4310kg) |
| Volts: | 12 V |
| Winch Fairlead Type: | Roller |
| Remote Included: | Yes |
| Remote: | Remote switch,12ft (3.7m)lead + Wireless |
| Free-Spooling Clutch: | Sliding Ring Gear |
| Brake: | Automatic In-The-Drum |
| Power Out: | Yes |
| Drive Gear: | 3-Stage Differential Planetary |
| Winch Line Included: | Yes |
| Winch Line Type: | Cable |
| Winch Line Diameter (in): | 21/64 in. (8.3mm) |
| Winch Line Material: | Steel |
| Winch Line Length (ft): | 94 ft. (28m) |
| Weight: | 84.000 lbs. (38kg) |
| Motor Horsepower: | 5.5 hp |
| Gear Reduction Ratio: | 265.2:1 |
| Drum Diameter (in): | 2.500 in. (63.5mm) |
| Drum Length (in): | 8.800 in. (224mm) |
| Overall Dimensions (in): | 562mm(L) x 160mm(W) x 218mm(H) |
| Winch Finish: | Black |
| Recommended Battery: | 650CCA min. |
| Quantity: | Sold as a kit. |
The Speedmaster 4wd winches encompass all the best features you could want in a winch. Ranging from 9500lb - 13000lb, they can handle any situation you could get into. Every winch is finished with a black powder coat, stainless steel hardware, and aluminum crossbars to provide great looking and long lifetime. They include a wired remote switch and a wireless remote control, waterproof box with the versatility to be mounted over the winch motor or winch cable, a four-way roller fairlead and forged hook. Speedmaster winches are the complete recovery system with the muscle and reliability to bail you out of any situation.
Electric winch with Permanent Magnet
| Model | Capacity | Power | Steel cable | Size (L X W X H) | NW |
| PCE553.1003 | 9500LB | DC12V | 8.3mm X 28m | 562 X 160 X 218mm | 38KG |
Pull, Speed, Amperes, Volts (First Layer)
| Line Pull (lbs./ kg) | Line Speed FPM(m/min) | Motor (Amps) |
| 0 | 24.6ft (7.8m) | 80 |
| 2000 (907) | 14.4ft (4.4m) | 180 |
| 4000 (1814) | 10.6ft (3.25m) | 240 |
| 6000 (2722) | 8.5ft (2.6m) | 280 |
| 8000 (3629) | 7.0ft (2.15m) | 330 |
| 9500 (4310) | 6.4ft (1.95m) | 380 |
Line Pull And Rope Capacity In Layer
| Layer | Rated Line Pull (lbs./kgs) | Total Rope On Drum (ft/m ) |
| 1 | 9500 (4300) | 16.2 (5.0) |
| 2 | 7700 (3400) | 39.0 (12.0) |
| 3 | 6500 (2940) | 68.0 (21.0) |
| 4 | 5700 (2580) | 92.0 (28.0) |
