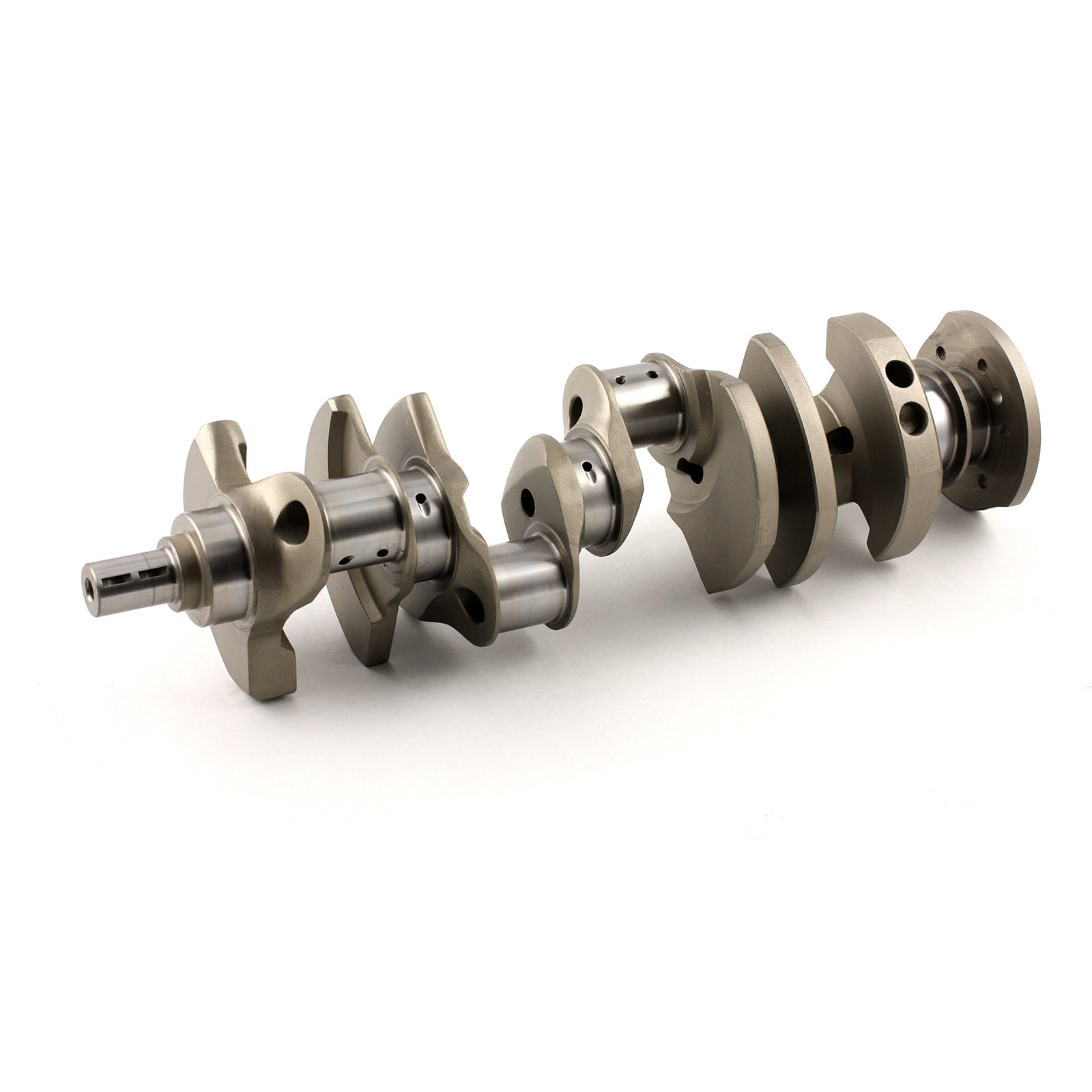

Chevy 400 4340 Forged Steel Crankshaft ST-3.750 M-400 RJ-2.1 RMS-2Pc Bal-Int LW

These Speedmaster crankshafts are made from the same strong aircraft-quality forging as standard-weight cranks, but have profiled counterweights for less weight. Speedmaster lightweight crankshafts are perfect for engines wanting quicker rpm. These crankshafts feature profiled aero-wing counterweights and have straight shot and chamfered oil holes. Speedmaster crankshafts are nitride-hardened, with large radii on all journals for superior wear resistance, and use lightening holes in all rod throws.

Brand:	Speedmaster
Part Number:	PCE276.1022.03
Part Type:	Crankshaft
Product Line:	4340 Forged Steel
Rear Main Seal Style:	2-piece
Engine Stroke (in):	3.750 in.
Crankshaft Material:	Forged 4340 Steel
Engine Balance:	Internal
Lightened:	Yes
Requires Narrow Bearings:	See notes below
Rod Bearings Included:	No
Main Bearings Included:	No
Rod Journal Diameter (in):	2.100 in.
Main Journal Diameter (in):	2.649 in.
Minimun Rod Length (in):	6.000 in.
Balancer Bolt Thread Size:	Standard
Crankshaft Snout Style:	Standard
Quantity:	Sold individually.
Notes:	Check the bearing to crank radius clearance. Rod bearings may need to be chamfered or alternatively use narrow rod bearings.
Tool:	Stroker Combinations
