Speedmaster®
SKU:PCE300.1009.01

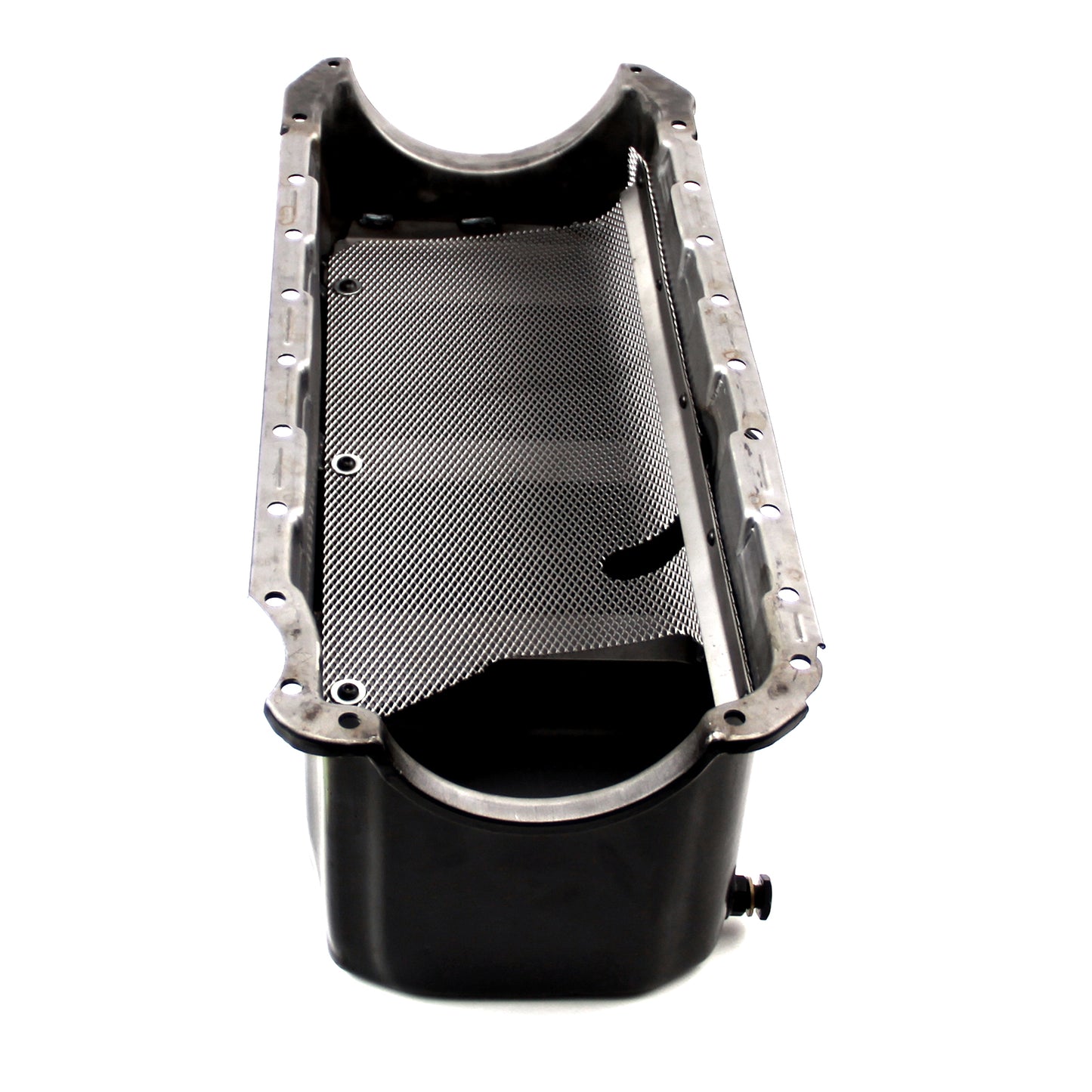

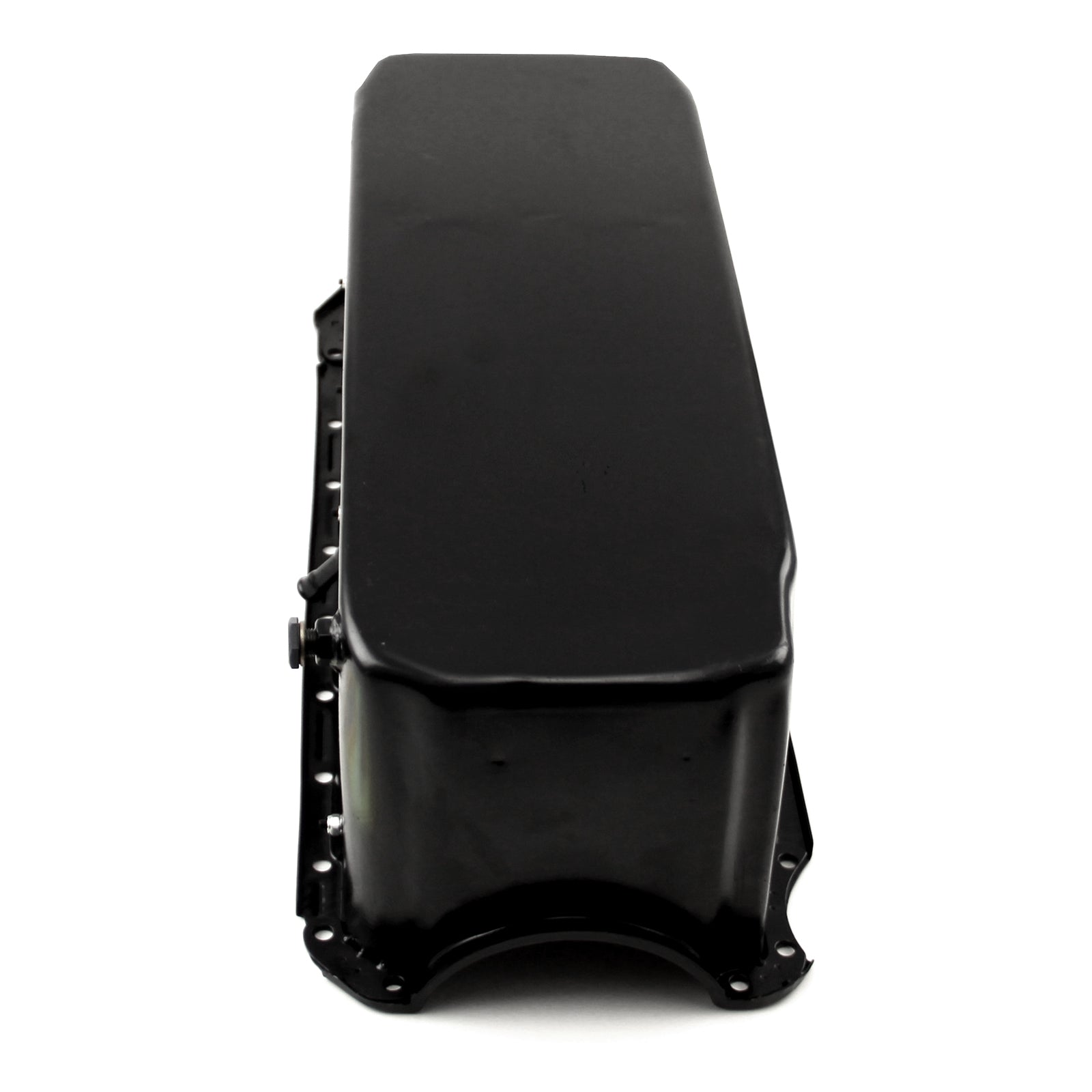

Chevy BB 454 Gen 4 10qt. 2pc. RMS Full Sump Black Competition Oil Pan
Chevy BB 454 Gen 4 10qt. 2pc. RMS Full Sump Black Competition Oil Pan
Regular price
$214.10 USD
Regular price
$237.90 USD
Sale price
$214.10 USD
Out of stock
Quantity
Couldn't load pickup availability
- Item Condition: Brand New
- Ships within 3 days
- 12-Month Limited Worldwide Warranty
Information
The oil pan serves as the reservoir for the engine's oil. It is designed to hold the amount of oil that is needed to lubricate the engine when it is running, plus a reserve. The oil pan helps to cool the oil thru its contact with the outside air. Dress up your oil system with a oil pan from PCE.
Specifications
| Brand: | Speedmaster |
| Part Number: | PCE300.1009.01 |
| Part Type: | Oil Pans, Individual |
| Rear Main Seal Style: | 2-piece |
| Dipstick Location: | US Passenger side |
| Sump Location: | Rear |
| Stroker Clearanced: | Yes |
| Maximum Stroke with OE Rod: | 4.500 in. |
| Sump Style: | Wet |
| Oil Pan Capacity: | 10 quarts |
| Oil Pan Depth (in): | 8.500 in. |
| Oil Pan Material: | Steel |
| Oil Pan Finish: | Black Painted |
| Baffled: | Yes |
| Dipstick Provision: | Yes |
| Windage Tray Included: | No |
| Pickup Included: | No |
| Crank Scraper Included: | No |
| Gaskets Included: | No |
| Hardware Included: | No |
| Quantity: | Sold individually. |
Replaces Part Number: MIL-30950
