Speedmaster®
SKU:PCE276.1031

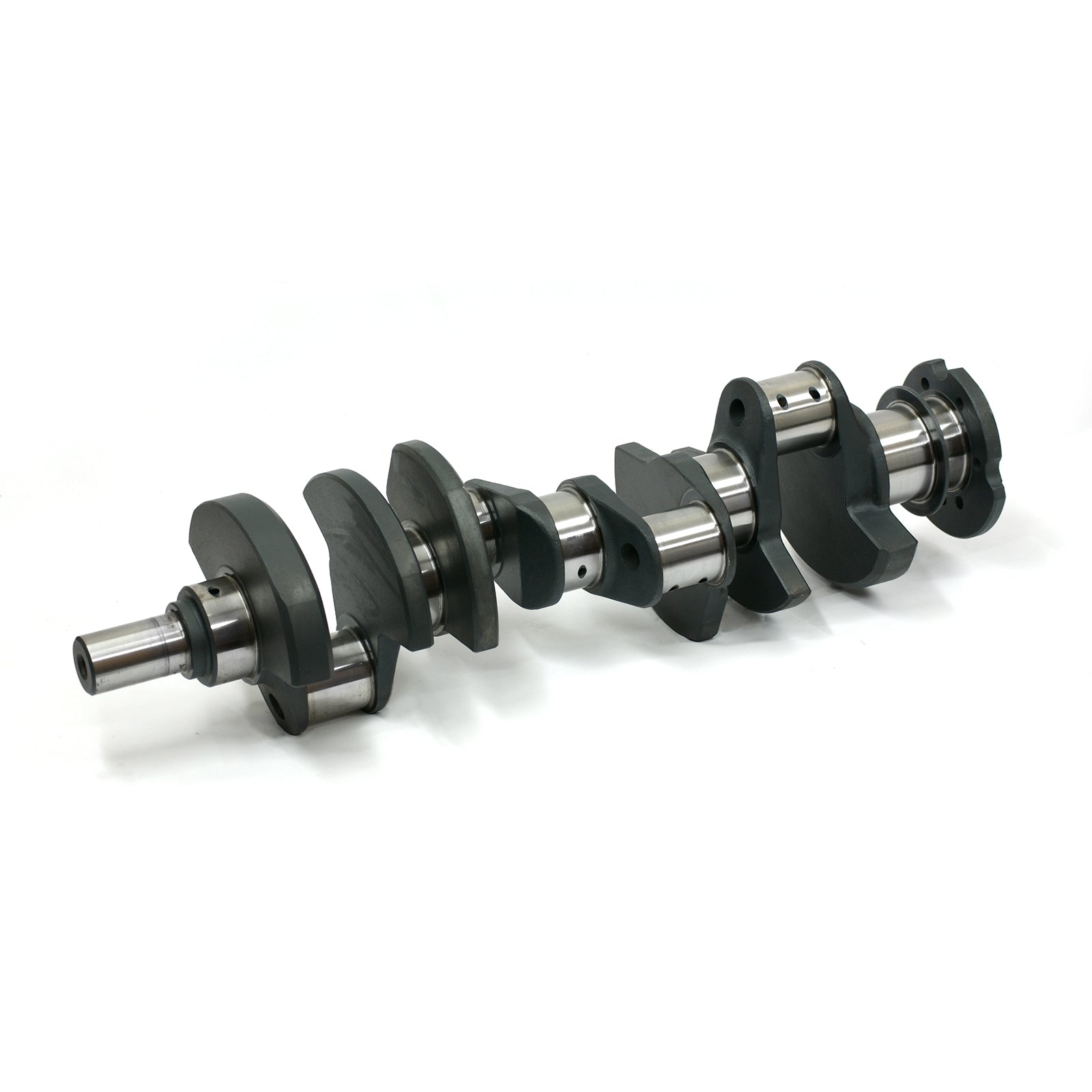

Chevy BBC 454 4340 Forged Steel Crankshaft ST-4.000 M-Std RJ-2.2 RMS-2Pc Bal-Int
Chevy BBC 454 4340 Forged Steel Crankshaft ST-4.000 M-Std RJ-2.2 RMS-2Pc Bal-Int
Regular price
$930.40 USD
Regular price
$1,094.60 USD
Sale price
$930.40 USD
Low stock
Quantity
Couldn't load pickup availability
- Item Condition: Brand New
- Ships within 3 days
- 12-Month Limited Worldwide Warranty
Information
Specifications
| Brand: | Speedmaster |
| Part Number: | PCE276.1031 |
| Part Type: | Crankshaft |
| Product Line: | 4340 Forged Steel |
| Rear Main Seal Style: | 2-piece |
| Engine Stroke (in): | 4.000 in. |
| Crankshaft Material: | Forged 4340 Steel |
| Engine Balance: | Internal |
| Lightened: | No |
| Requires Narrow Bearings: | See notes below |
| Rod Bearings Included: | No |
| Main Bearings Included: | No |
| Rod Journal Diameter (in): | 2.200 in. |
| Main Journal Diameter (in): | 2.749 in. |
| Minimun Rod Length (in): | 6.135 in. |
| Balancer Bolt Thread Size: | Standard |
| Crankshaft Snout Style: | Standard |
| Quantity: | Sold individually. |
| Notes: | Check the bearing to crank radius clearance. Rod bearings may need to be chamfered or alternatively use narrow rod bearings. |
| Tool: | Stroker Combinations |
Speedmaster forged standard weight crankshafts are designed for street or race engines with substantially increased horsepower. Speedmaster crankshafts are precision-ground, heat-treated, shot-peened, inspected, and micro-polished for superior tolerance control. Speedmaster crankshafts are also nitride-hardened for superior wear resistance, have straight-shot and chamfered oil holes, and feature lightening holes in all rod throws. These crankshafts also have a large radius on all journals for improved strength and wear resistance.
