Speedmaster®
SKU:PCE300.1086

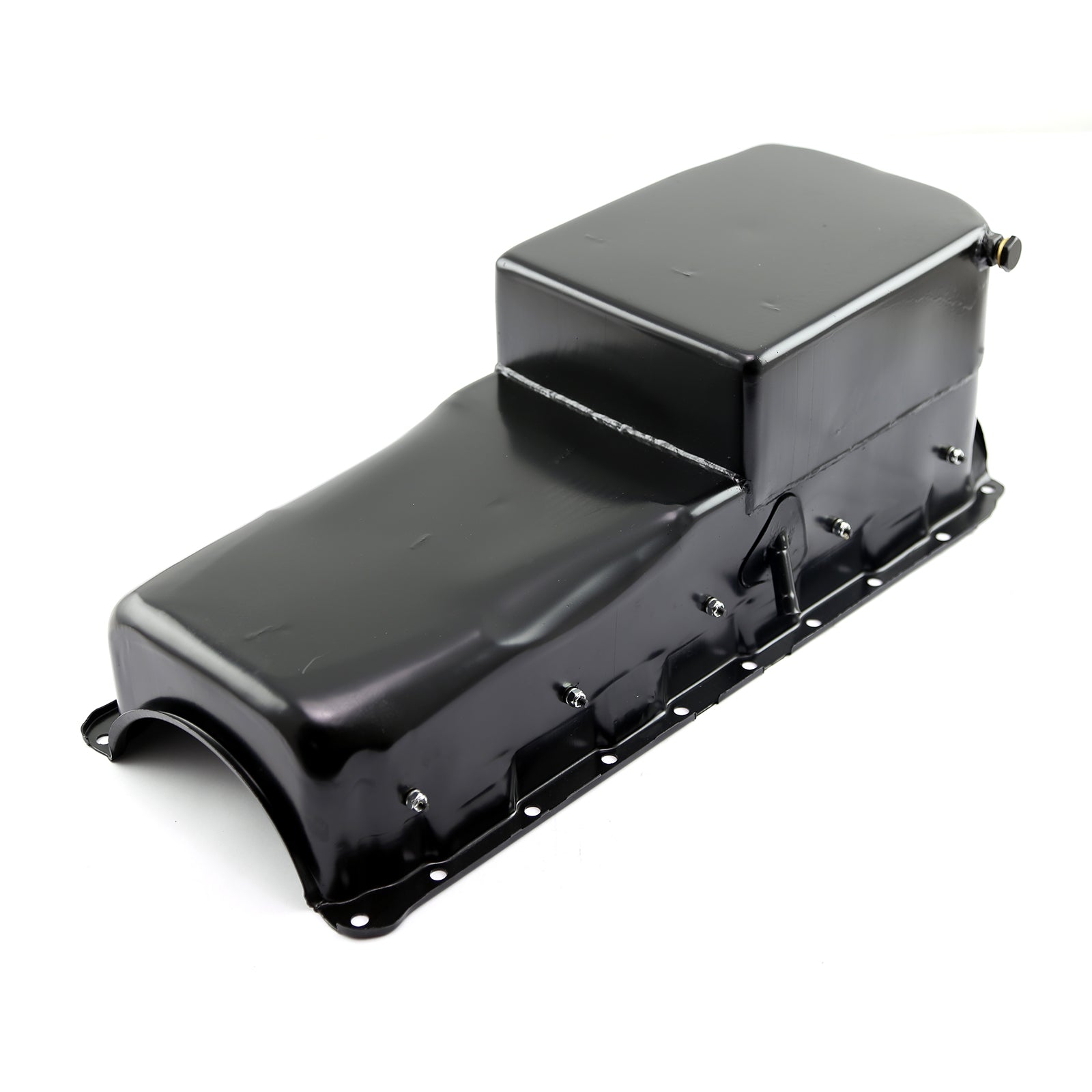

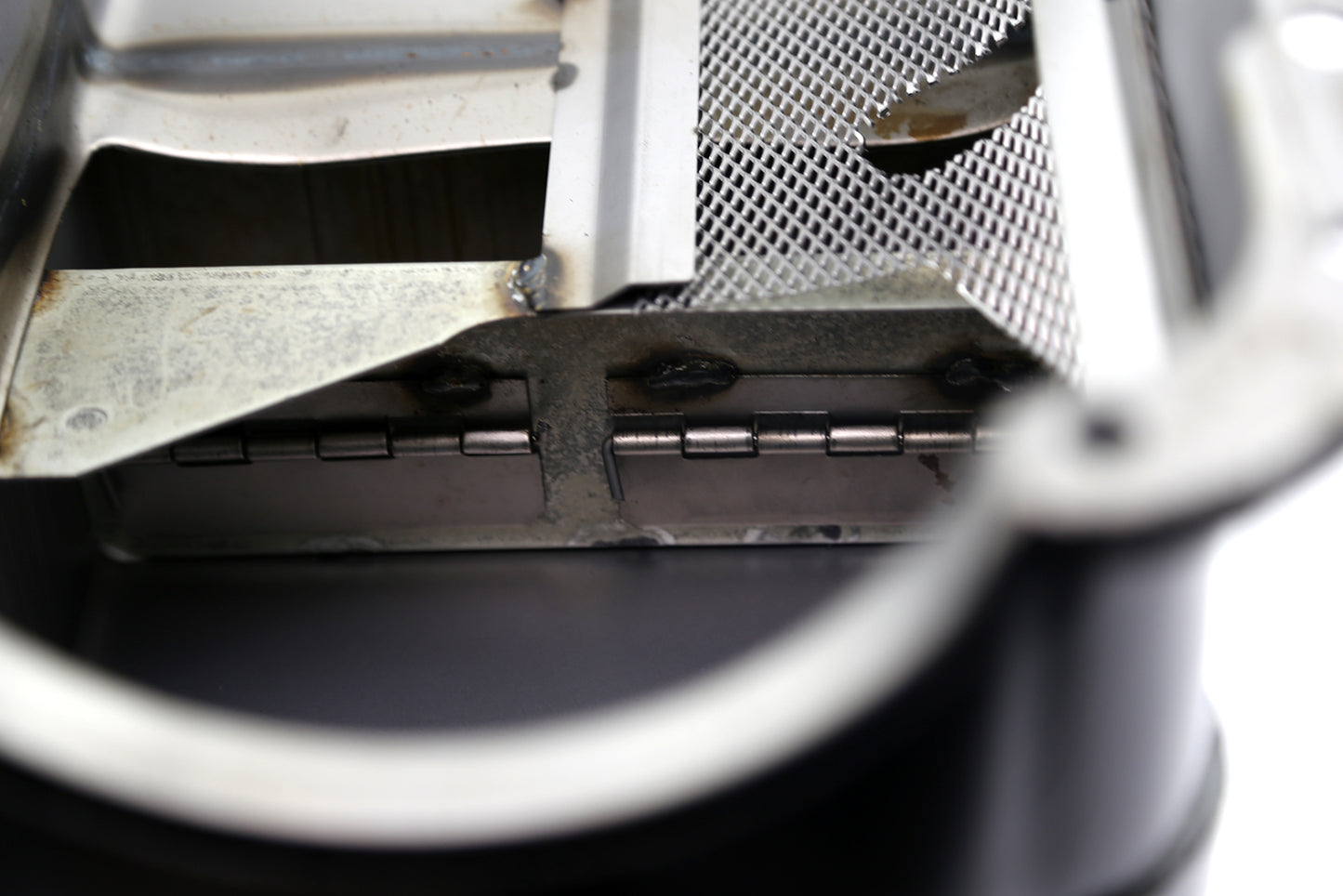

Chevy BBC 454 6Qt Rear Sump 2Pc Rms Black Drag Oil Pan w/ Bolt On Windage Tray
Chevy BBC 454 6Qt Rear Sump 2Pc Rms Black Drag Oil Pan w/ Bolt On Windage Tray
Regular price
$159.70 USD
Regular price
Sale price
$159.70 USD
Out of stock
Quantity
Couldn't load pickup availability
- Item Condition: Brand New
- Ships within 3 days
- 12-Month Limited Worldwide Warranty
Information
The oil pan serves as the reservoir for the engine's oil. It is designed to hold the amount of oil that is needed to lubricate the engine when it is running, plus a reserve. The oil pan helps to cool the oil thru its contact with the outside air. Dress up your oil system with a oil pan from PCE.
Specifications
| Brand: | Speedmaster |
| Part Number: | PCE300.1086 |
| Part Type: | Oil Pans, Individual |
| Rear Main Seal Style: | 2-piece |
| Dipstick Location: | US Passenger side |
| Sump Location: | Rear |
| Stroker Clearanced: | Yes |
| Maximum Stroke with OE Rod: | 4.500 in. |
| Sump Style: | Wet |
| Oil Pan Capacity: | 7 quarts |
| Oil Pan Depth (in): | 8.500 in. |
| Oil Pan Material: | Steel |
| Oil Pan Finish: | Black Painted |
| Baffled: | Yes |
| Dipstick Provision: | Yes |
| Windage Tray Included: | Yes |
| Pickup Included: | No |
| Crank Scraper Included: | No |
| Gaskets Included: | No |
| Hardware Included: | No |
| Quantity: | Sold individually. |
