Speedmaster®
SKU:PCE382.1024.02

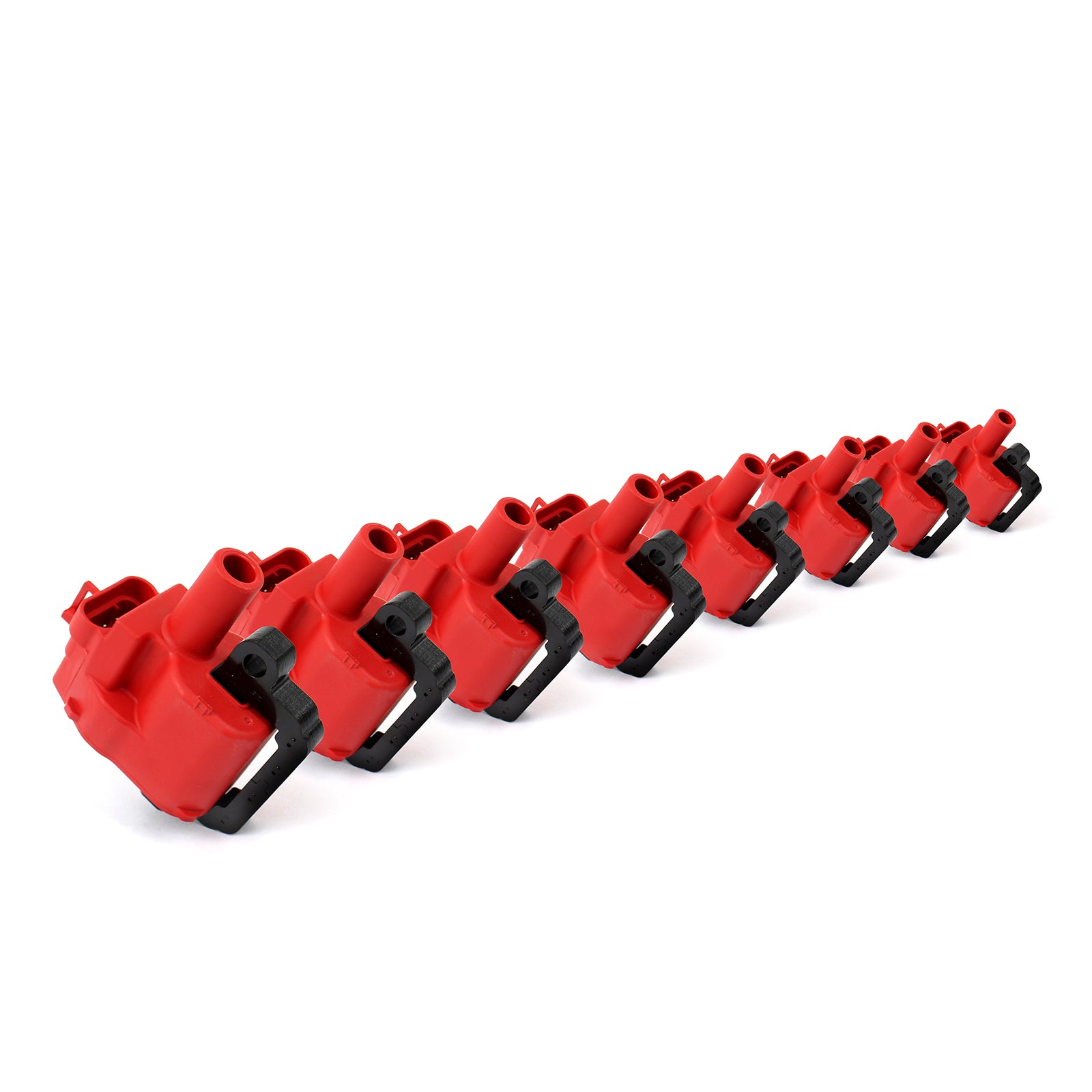

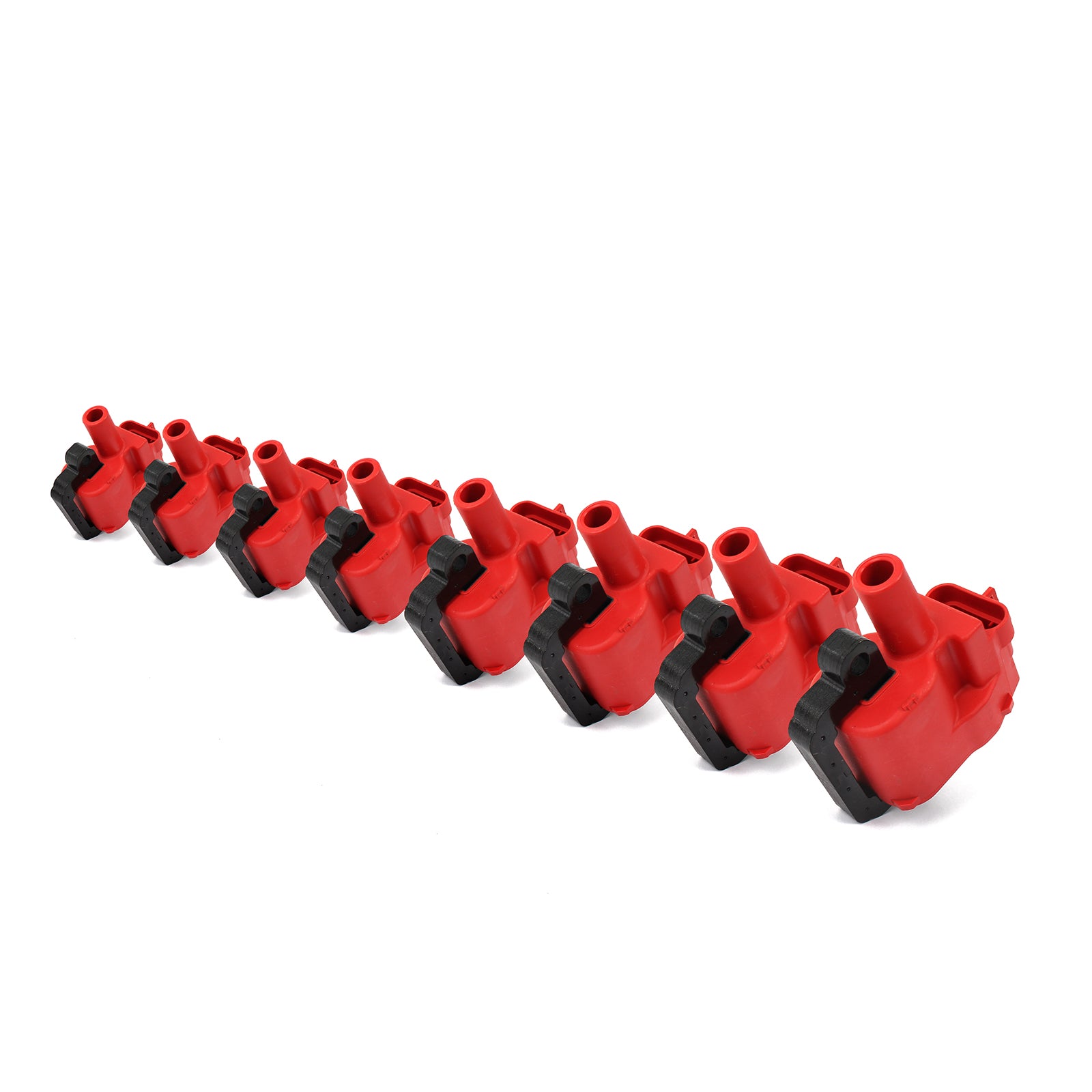

Chevy Gm LS1 LS6 12V High Output E-Poxy Ignition Coil Red [Round D580] 8pcs
Chevy Gm LS1 LS6 12V High Output E-Poxy Ignition Coil Red [Round D580] 8pcs
Regular price
$221.00 USD
Regular price
$260.00 USD
Sale price
$221.00 USD
In stock
Quantity
Couldn't load pickup availability
- Item Condition: Brand New
- Ships within 5 days
- 12-Month Limited Worldwide Warranty
![Chevy Gm LS1 LS6 12V High Output E-Poxy Ignition Coil Red [Round D580] 8pcs](http://www.wrenchit.com/cdn/shop/files/PCE382.1025_5f739025-76e9-4b32-95b6-2111e8024966.jpg?v=1756978421&width=1445)
![Chevy Gm LS1 LS6 12V High Output E-Poxy Ignition Coil Red [Round D580] 8pcs](http://www.wrenchit.com/cdn/shop/files/PCE382.1025_A.jpg?v=1756978421&width=1445)
Information
Specifications
| Brand: | Speedmaster |
| Part Number: | PCE382.1024.02 |
| Part Type: | Ignition Coil |
| Coil Wire Attachment: | Female/Socket |
| Coil Style: | Coil pack |
| Primary Resistance: | 0.730 ohms |
| Coil Internal Construction: | Epoxy |
| Coil Color: | Red |
| Maximum Voltage: | 40,000 V |
| Turns Ratio: | 56:1 |
| Secondary Resistance: | 3.7K ohms |
| Inductance: | 3.6 mH |
| Peak Current: | 124 mA |
| Spark Duration: | 1,110 uS |
| Mounting Bracket Included: | No |
| Coil Wire Included: | No |
| Ballast Resistor Included: | No |
| Coil Shape:
Speedmaster Ignition's Multiple Spark Coils (MSC) will fit in place of the stock GM LS coils and connect directly to the factory connectors. Once installed, you'll have the power and performance of higher energy sparks, crowned with PCE's multiple spark discharge. Increased spark energy and voltage, along with multiple spark capabilities, help improve the combustion process of the fuel mixture to create an efficient burn. This results in improved throttle response, smooth idle and quick starts, plus increased high rpm performance!
|
