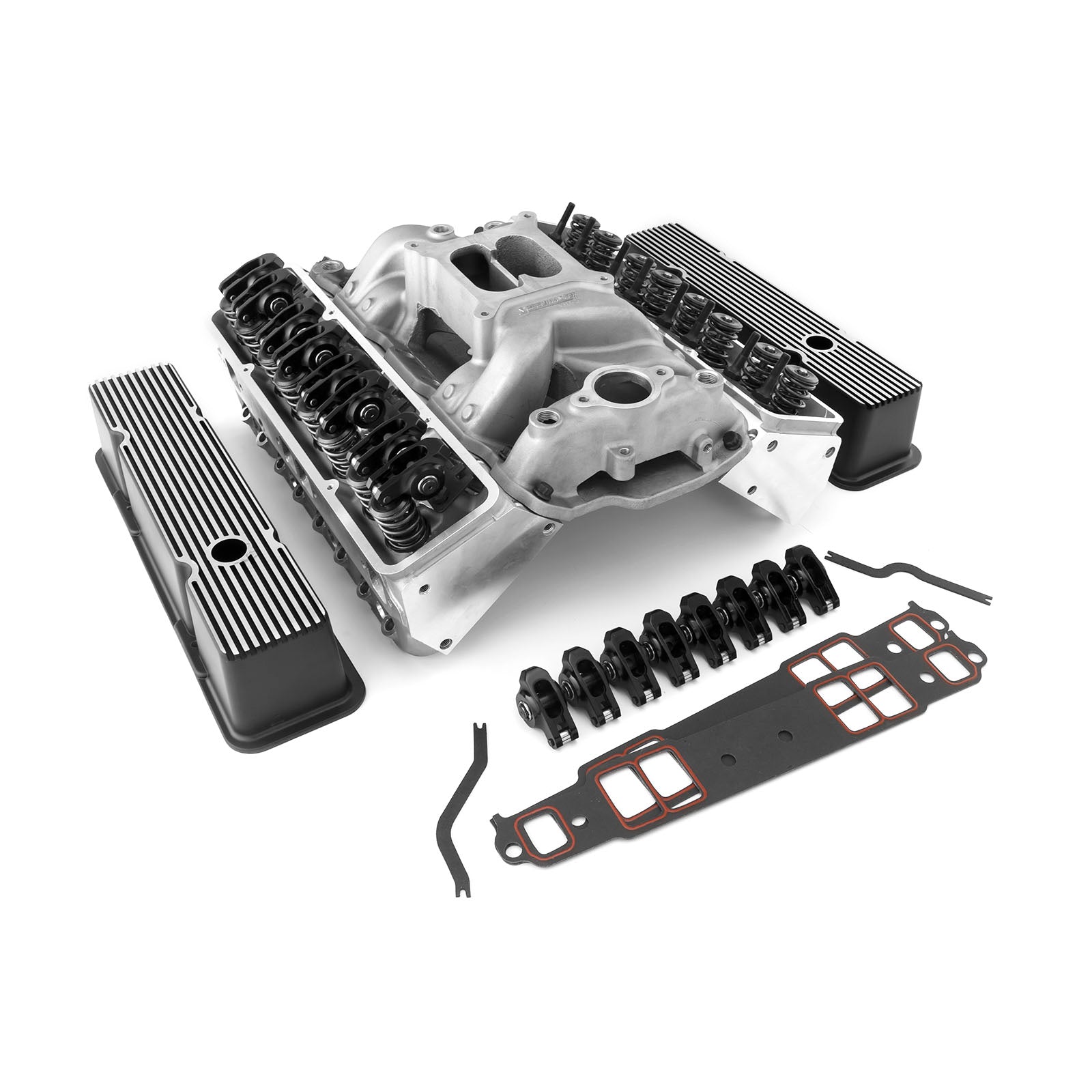

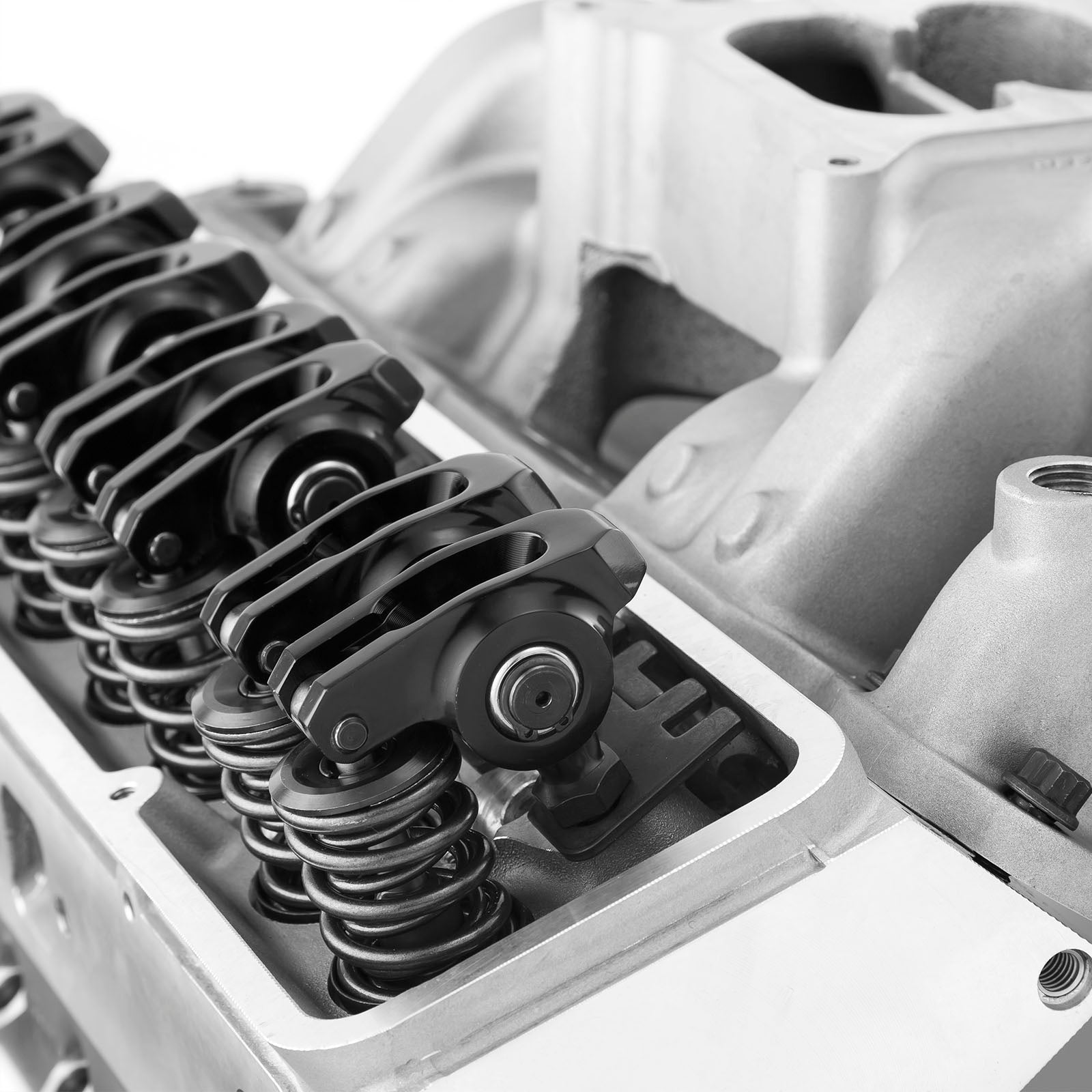

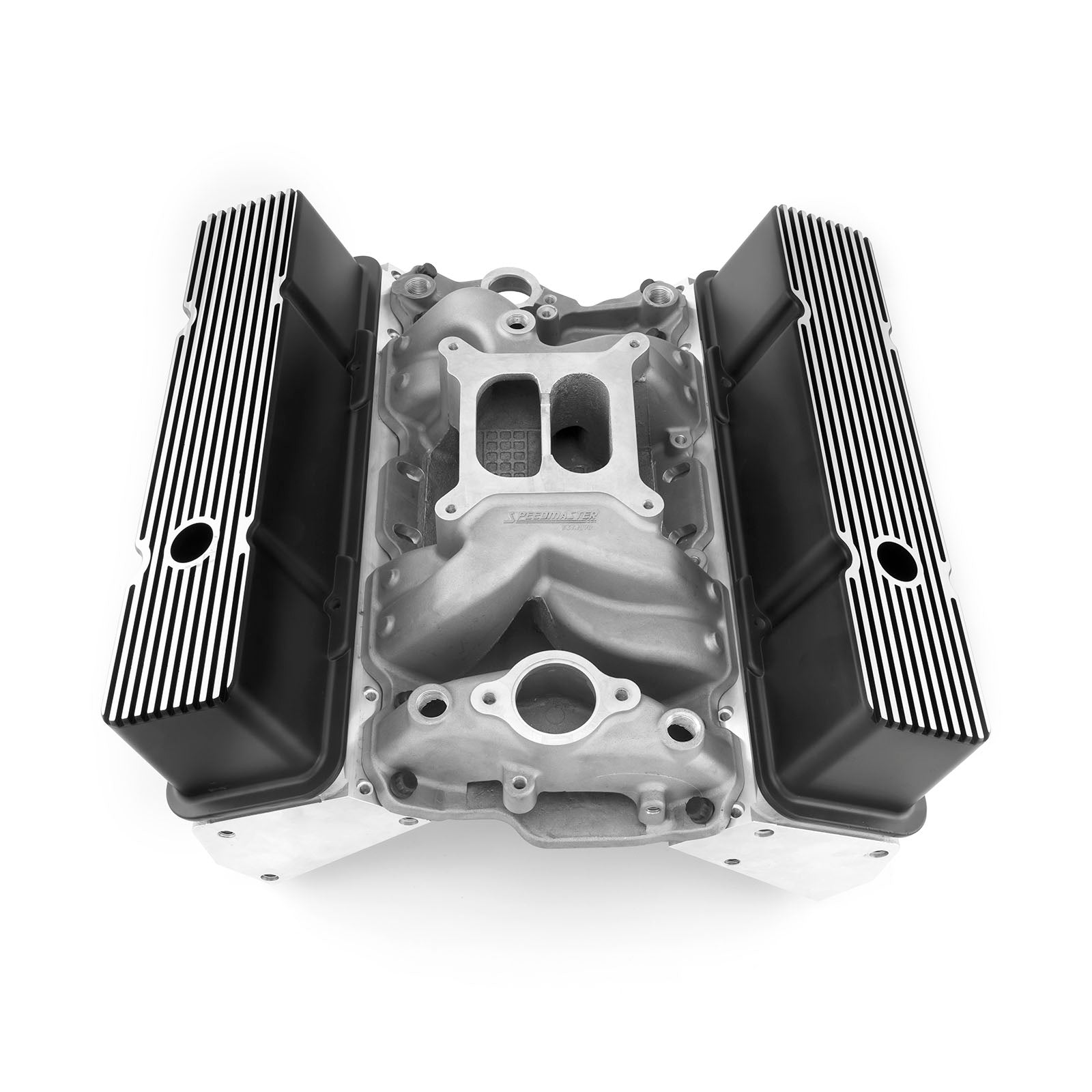

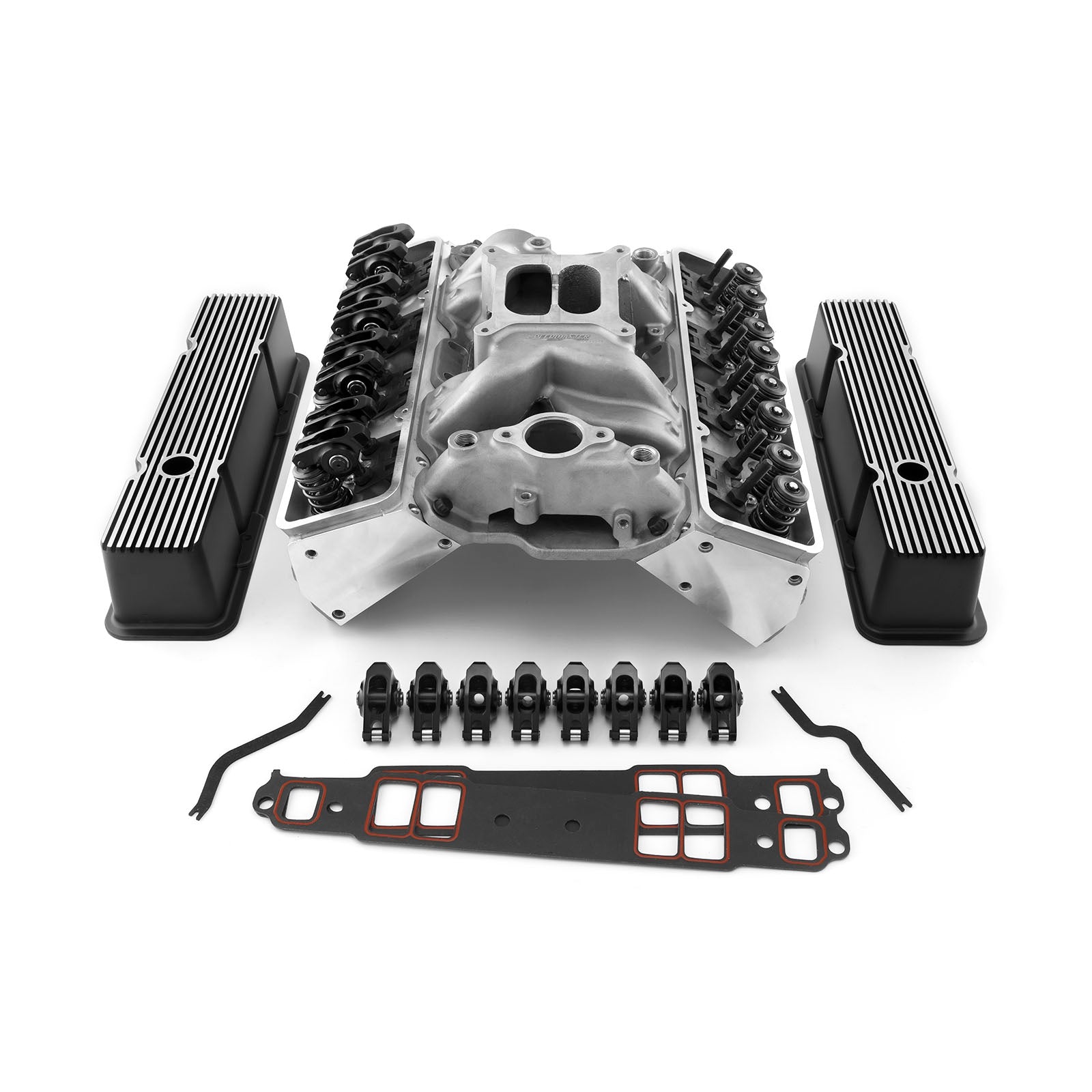

Chevy SBC 350 Angle Cylinder Head Top End Engine Combo Kit [Hydraulic Roller Tappet]

Don't spend hours figuring out which pieces and parts you need to get what you want from your engine. Speedmaster has already done the work for you; our Top-End engine kits will save you the time and hassle of mixing and matching components yourself. These kits are specifically designed to deliver the performance you want, at a better price than purchasing the parts separately.

Brand:	Speedmaster
Part Number:	1-435-003
Part Type:	Cylinder Head Combo
Product Line:	Hydraulic Roller Tappet
Camshaft Included:	No
Intake Manifold Included:	Yes
Fuel Delivery Style:	Carbureted
Intake Material:	Aluminum
Intake Finish:	Natural
Carburetor Quantity:	One
Intake Style:	Single plane with divider
Intake Basic Operating RPM Range:	1,500-6,500
Intake Manifold Height:	4.650 in.
Intake Manifold Model (descriptive):	Speedmaster - MidRise Air
Timing Chain and Gears Included:	No
Lifters Included:	No
Gaskets Included:	Yes
Cylinder Head Style:	Assembled
Cylinder Head Material:	Aluminum
Cylinder Head Finish:	Natural
Combustion Chamber Volume (cc):	64 cc
CNC-Machined Combustion Chamber:	No
Intake Runner Volume (cc):	190 cc
CNC-Machined Intake Runner:	No
CNC-Machined Exhaust Runner:	No
Intake Port Shape:	Square
Intake Port Location:	Standard
Exhaust Port Shape:	Square
Exhaust Port Location:	Standard
Spark Plug Style:	Angle
Comp. Valve Job:	No
Intake Valves Included:	Yes
Intake Valve Diameter (in):	2.020 in.
Exhaust Valves Included:	Yes
Exhaust Valve Diameter (in):	1.600 in.
Intake Valve Angle:	23 deg.
Exhaust Valve Angle:	23 deg.
Valve Springs Included:	Yes
Outside Diameter of Outer Spring (in):	1.450 in.
Damper Spring Included:	Yes
Number of Springs Per Valve:	Dual
Retainers Included:	Yes
Retainer Material:	Chromoly steel
Locks Included:	Yes
Lock Style:	10 degree
Valve Stem Seals Included:	Yes
Valve Stem Seal Style:	Positive stop
Rocker Arms Included:	Yes
Rocker Arm Studs Included:	Yes
Rocker Arm Nuts Included:	Yes
Rocker Arm Nut Thread Size:	7/16 in.
Guideplates Included:	Yes
Guideplate Pushrod Size:	5/16 in.
Pushrods Included:	No
Valve Covers Included:	Yes
Valve Cover Material:	Cast aluminum
Valve Cover Finish:	Black
Valve Cover Mounting Style:	Perimeter bolt
Accessory Bolt Holes Drilled:	Yes
Valve Guides Included:	Yes
Valve Guide Material:	Bronze
Valve Seats Machined:	Yes
Valve Seat Machine Style:	3-angle
Valve Seat Material:	Ductile iron
Steam Holes Drilled:	No
Oiling Style:	Through pushrod
Machined for O-Ring:	No
Heat Crossover:	No
Cylinder Head Bolts Included:	No
Quantity:	Sold as a kit.
