Speedmaster®
SKU:PCE305.1005.03
Chevy SBC 383 ci 6.0" 4.030" 1.100" 0.927" Flat Top Hyper Pistons [Coated]
Chevy SBC 383 ci 6.0" 4.030" 1.100" 0.927" Flat Top Hyper Pistons [Coated]
Regular price
$180.70 USD
Regular price
Sale price
$180.70 USD
Out of stock
Quantity
Couldn't load pickup availability
- Item Condition: Brand New
- Ships within 3 days
- 12-Month Limited Worldwide Warranty
![Chevy SBC 383 ci 6.0" 4.030" 1.100" 0.927" Flat Top Hyper Pistons [Coated]](http://www.wrenchit.com/cdn/shop/files/PCE305.SBC_7918a3ae-a0ac-471d-a0d4-397adbc93c86.jpg?v=1757147516&width=1445)
![Chevy SBC 383 ci 6.0" 4.030" 1.100" 0.927" Flat Top Hyper Pistons [Coated]](http://www.wrenchit.com/cdn/shop/files/PCE305.SBC_A_bf37d968-119a-43e2-b160-e3db34e5cf56.jpg?v=1757147516&width=1445)
![Chevy SBC 383 ci 6.0" 4.030" 1.100" 0.927" Flat Top Hyper Pistons [Coated]](http://www.wrenchit.com/cdn/shop/files/PCE305.SBC_B_cb95dc0b-3db6-4b3c-93f0-69fc3b06e32c.jpg?v=1757147516&width=1445)
![Chevy SBC 383 ci 6.0" 4.030" 1.100" 0.927" Flat Top Hyper Pistons [Coated]](http://www.wrenchit.com/cdn/shop/files/PCE305.SBC_C_10f22c76-e86f-44db-a6ed-d95409f5e4f1.jpg?v=1757147516&width=1445)
Information
Specifications
| Brand: | Speedmaster |
| Part Number: | PCE305.1005.03 |
| Part Type: | Piston |
| Bore (in): | 4.030 in. |
| Piston Style: | Flat top, with two valve reliefs |
| Piston Material: | 2060 Hypereutectic aluminum |
| Compression Distance (in): | 1.425 in. |
| Piston Head Volume (cc): | -4.00cc |
| Wrist Pin Style: | Full Floating |
| Pin Diameter (in): | 0.927 in. |
| Max Rod Length: | 5.700 in. |
| Piston Ring Thickness: | 1.5mm x 1.5mm x 3mm |

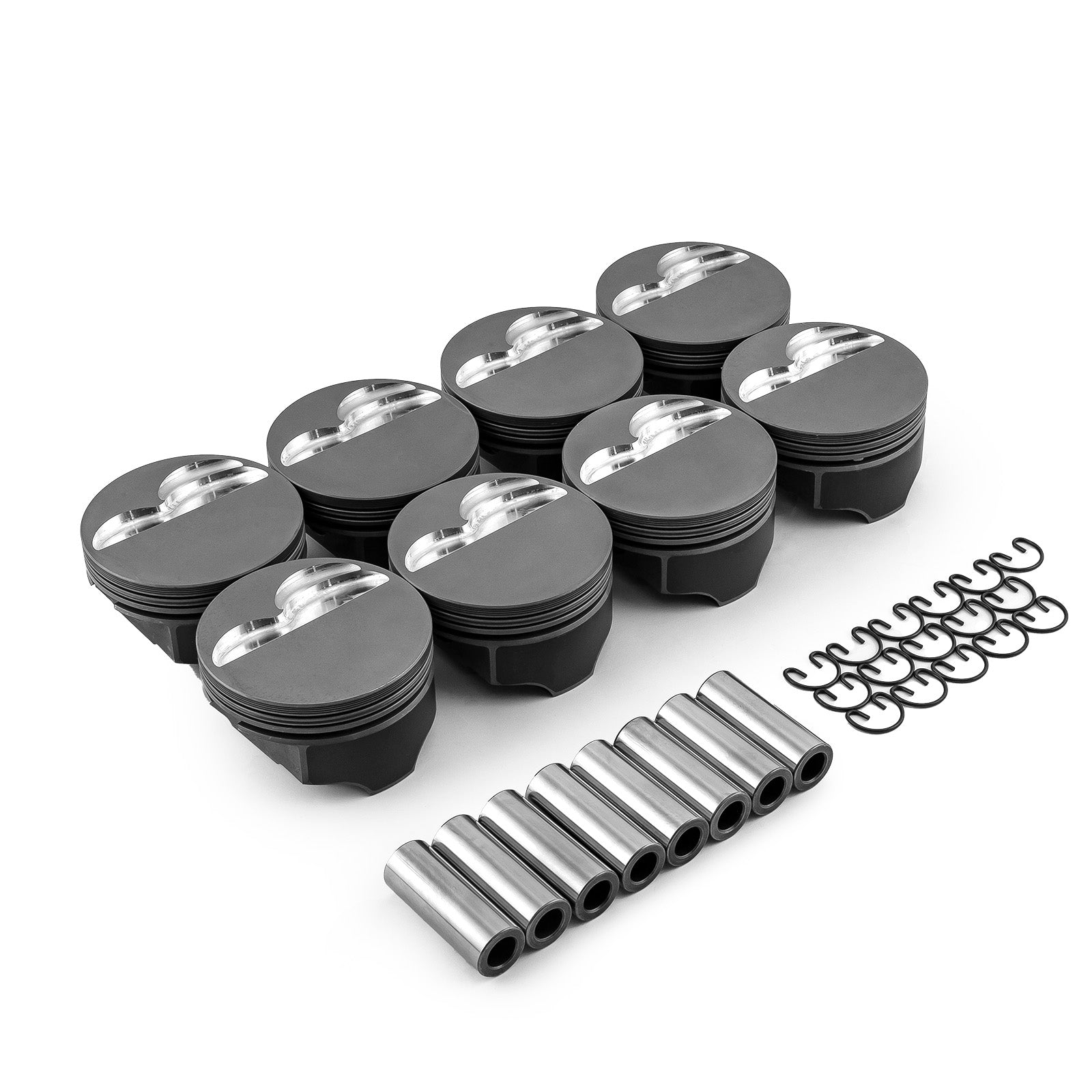

| Quantity: | Sold as a set of 8. |
Hypereutectic pistons with anti-friction skirt coating are manufactured from a aluminum alloy which contains 16 percent silicon for greater strength and wear resistance. By combining the hypereutectic alloy with the permanent mold process, the piston is strong, lightweight, and thermally-efficient. These pistons run tighter piston-to-wall clearances, improving ring seal and longevity. They are ideal for street, bracket racers and oval track.
