Speedmaster®
SKU:PCE646.1004

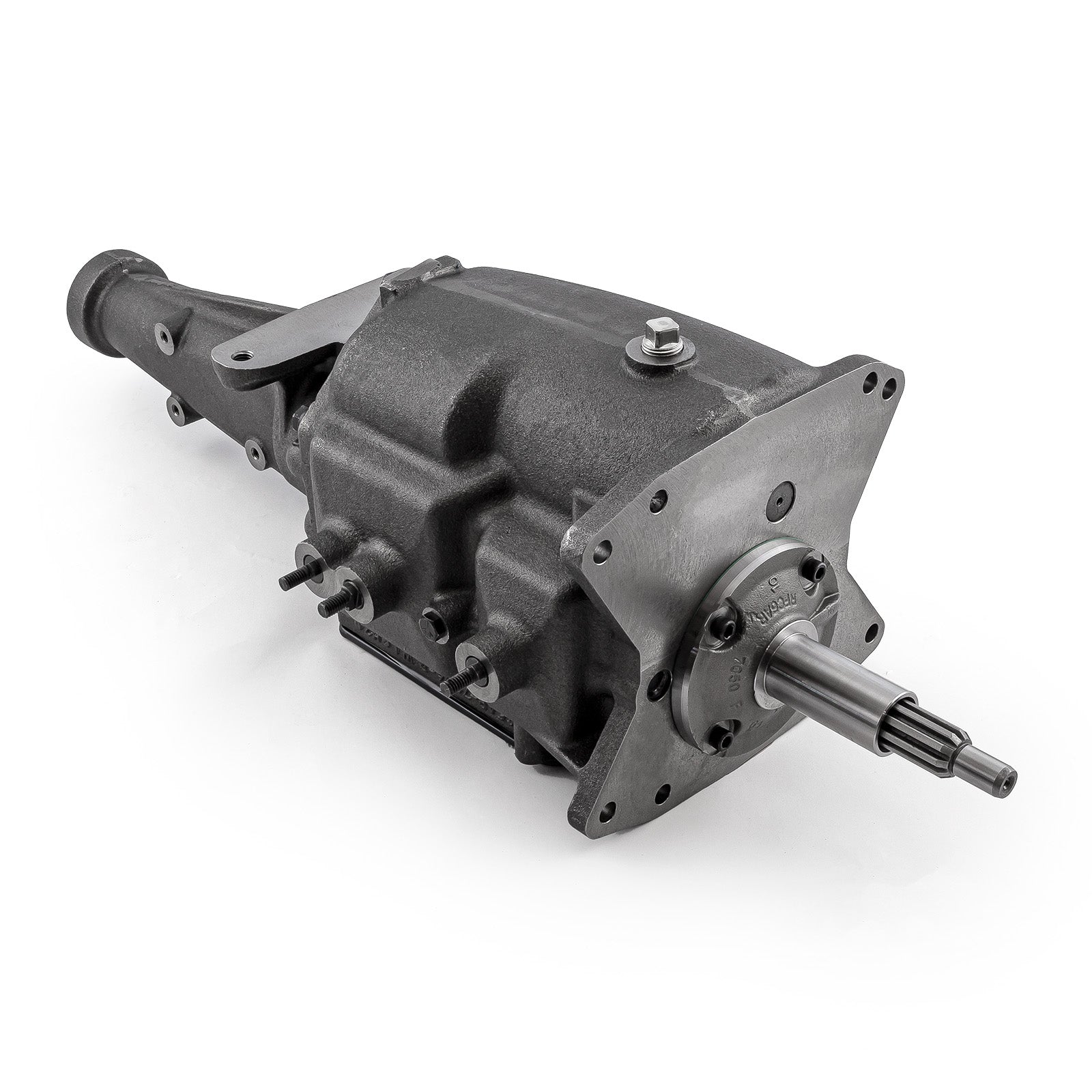

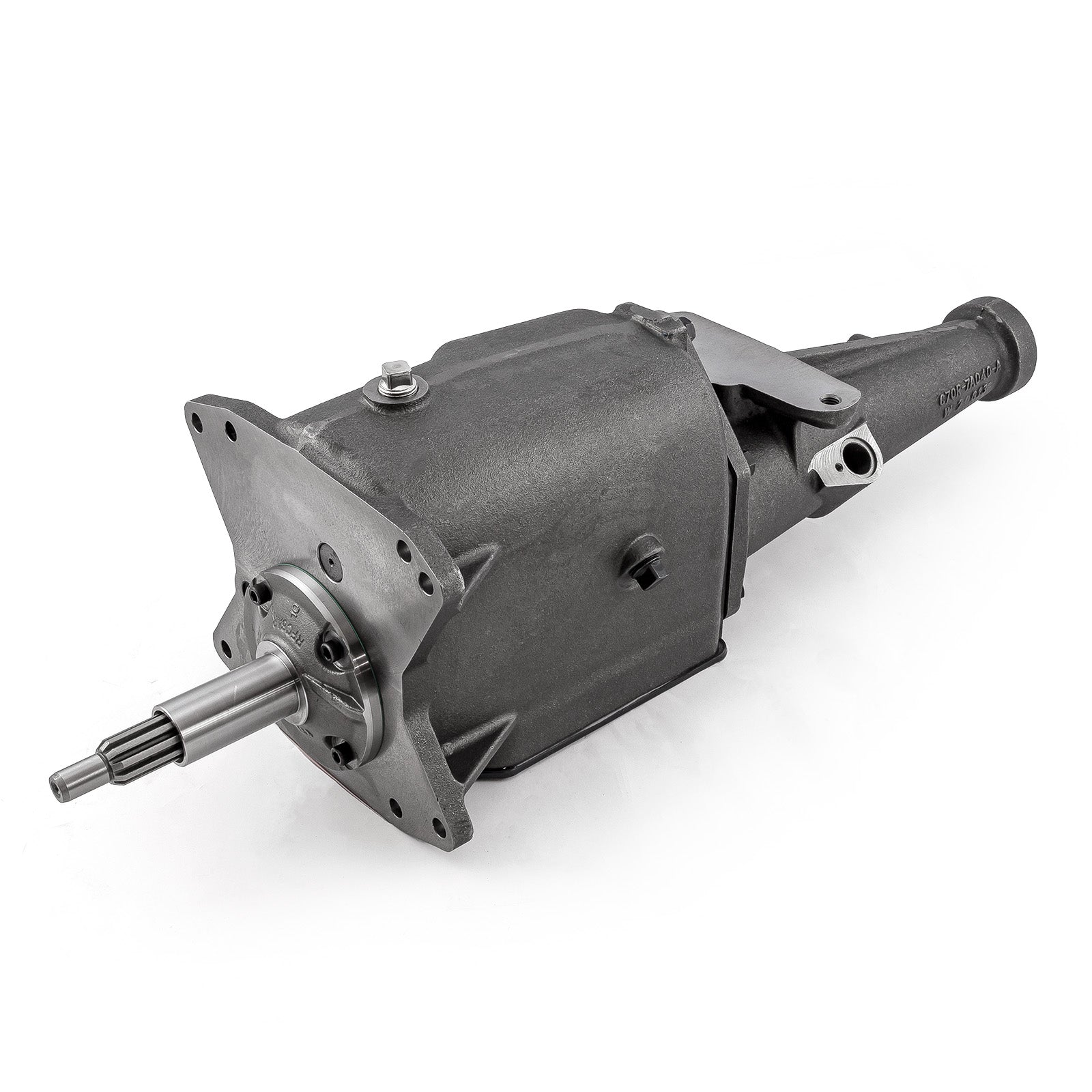

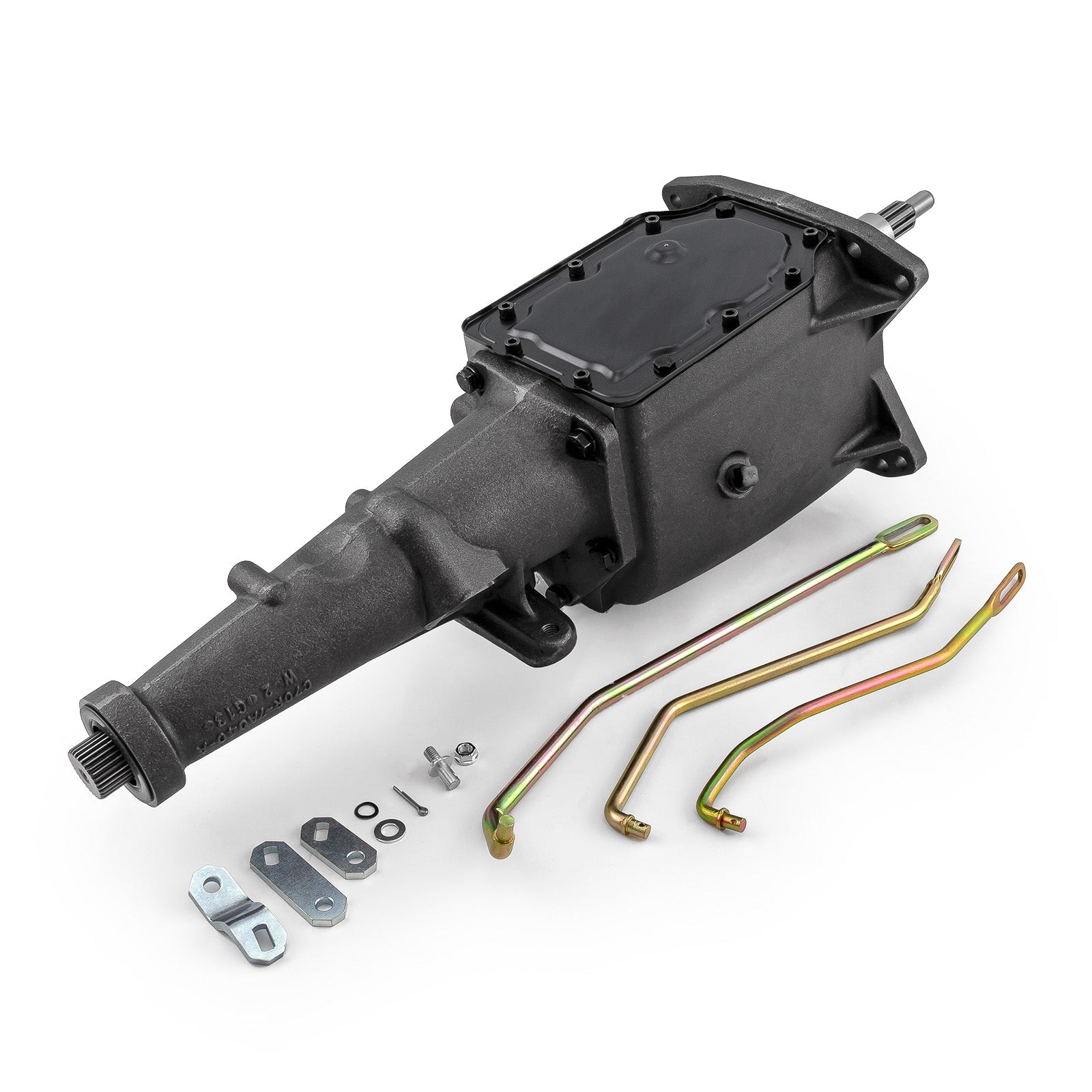

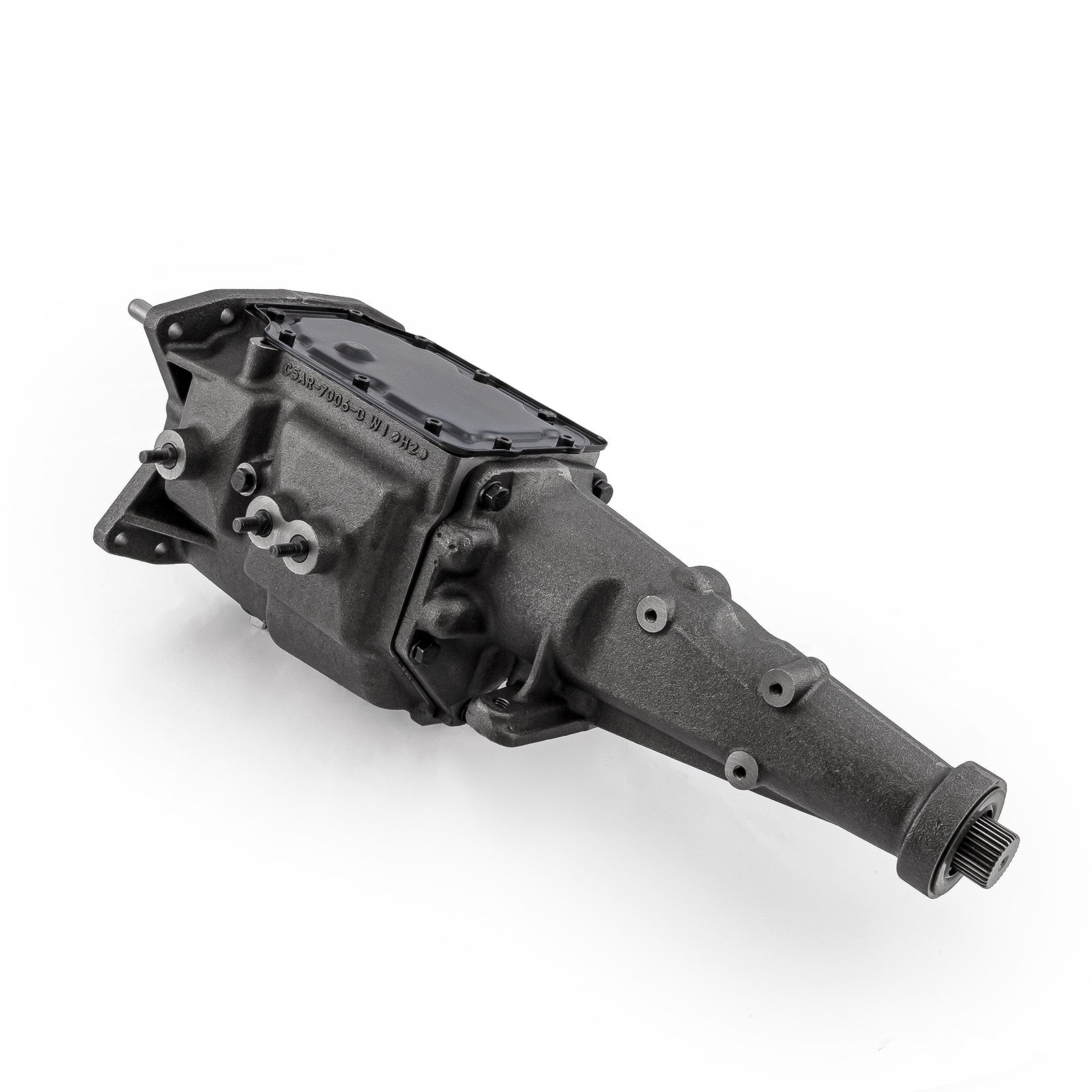

Ford 4 Speed Wide Ratio Cast Iron Toploader Gearbox Transmission [SHORT]
Ford 4 Speed Wide Ratio Cast Iron Toploader Gearbox Transmission [SHORT]
Regular price
$3,280.00 USD
Regular price
Sale price
$3,280.00 USD
Out of stock
Quantity
Couldn't load pickup availability
- Item Condition: Brand New
- Ships within 3 days
- 12-Month Limited Worldwide Warranty
![Ford 4 Speed Wide Ratio Cast Iron Toploader Gearbox Transmission [SHORT]](http://www.wrenchit.com/cdn/shop/files/PCE646.1004.jpg?v=1755586042&width=1445)
![Ford 4 Speed Wide Ratio Cast Iron Toploader Gearbox Transmission [SHORT]](http://www.wrenchit.com/cdn/shop/files/PCE646.1004_A.jpg?v=1755586042&width=1445)
![Ford 4 Speed Wide Ratio Cast Iron Toploader Gearbox Transmission [SHORT]](http://www.wrenchit.com/cdn/shop/files/PCE646.1004_B.jpg?v=1755586042&width=1445)
![Ford 4 Speed Wide Ratio Cast Iron Toploader Gearbox Transmission [SHORT]](http://www.wrenchit.com/cdn/shop/files/PCE646.1004_C.jpg?v=1755586042&width=1445)
Information
This Speedmaster manual transmission is built with all brand new components and case. Designed for engines producing up to 500hp, all components are hand fit and assembled in USA for the ultimate in precision fit and finish.
Specifications
| Brand: | Speedmaster |
| Part Number: | PCE646.1004 |
| Part Type: | Manual Transmissions |
| Number of Gears: | 4 |
| Gear Ratio: | Wide |
| Input Shaft Diameter (in.): | 1.0625 in |
| Input Spline Quantity: | 10 |
| Output Shaft Spline Quantity: | 31 |
| Output Shaft Spline Diameter (in): | 1.360 in. |
| Tailshaft Length: | Short |
| Bellhousing Included: | No |
| Yoke Style: | Slip-on |
| Yoke Included: | No |
| Shifter Included: | No |
| Shifter Style Required: | Long |
| First Gear Ratio: | 1:2.78 |
| Second Gear Ratio: | 1:1.92 |
| Third Gear Ratio: | 1:1.35 |
| Fourth Gear Ratio: | 1:1.00 |
| Case Material: | Cast Iron |
| Quantity: | Sold Individually. |
