Speedmaster®
SKU:PCE281.1657

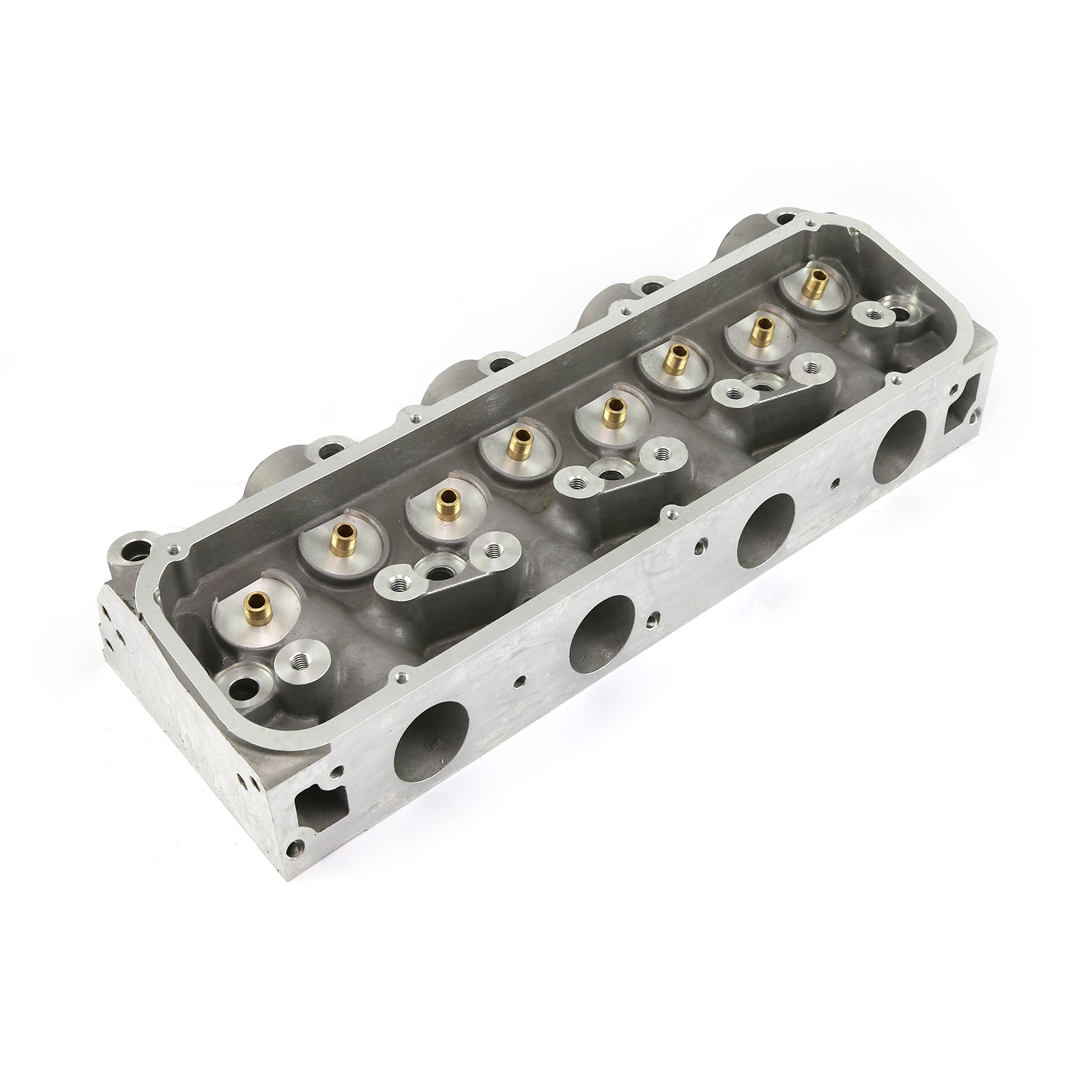

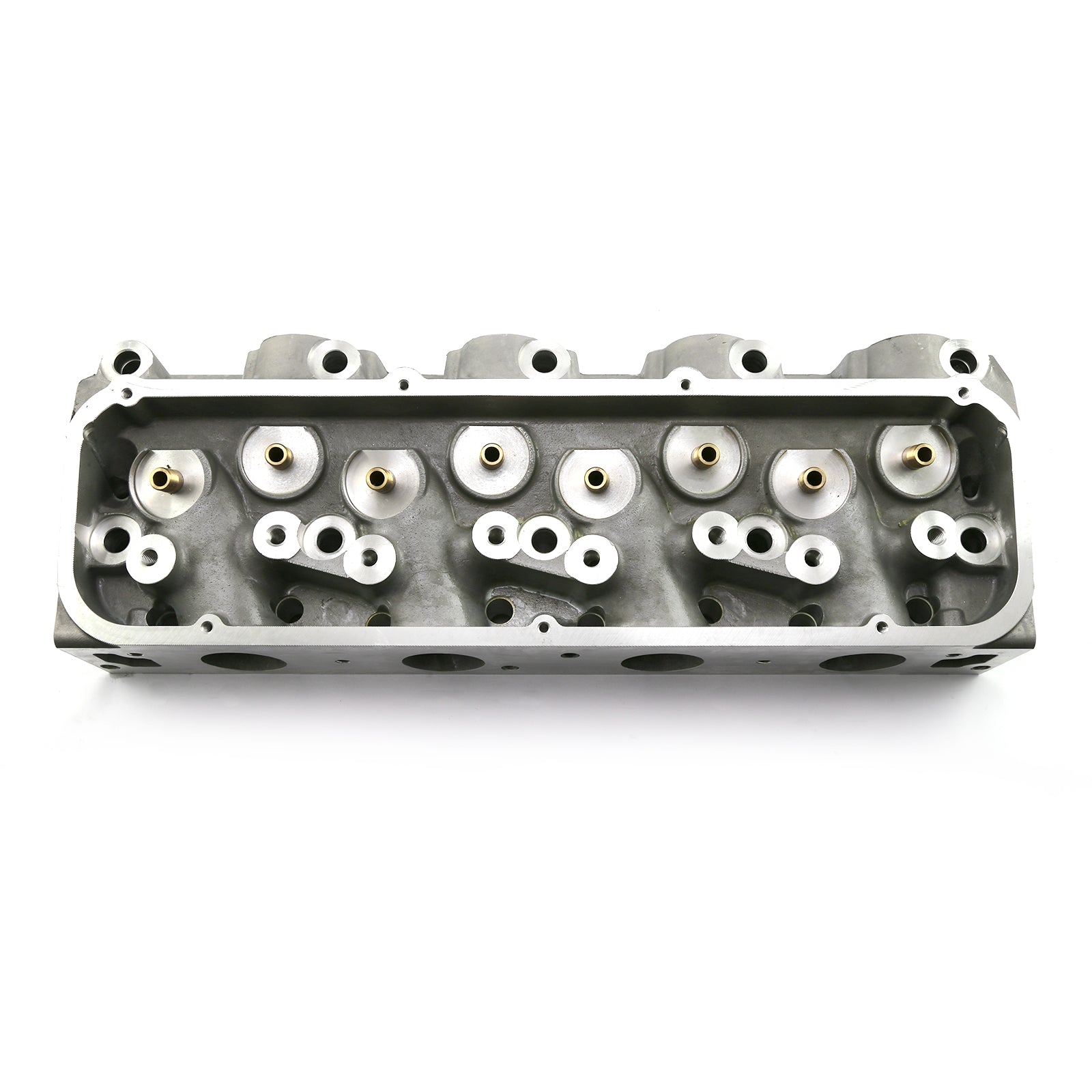

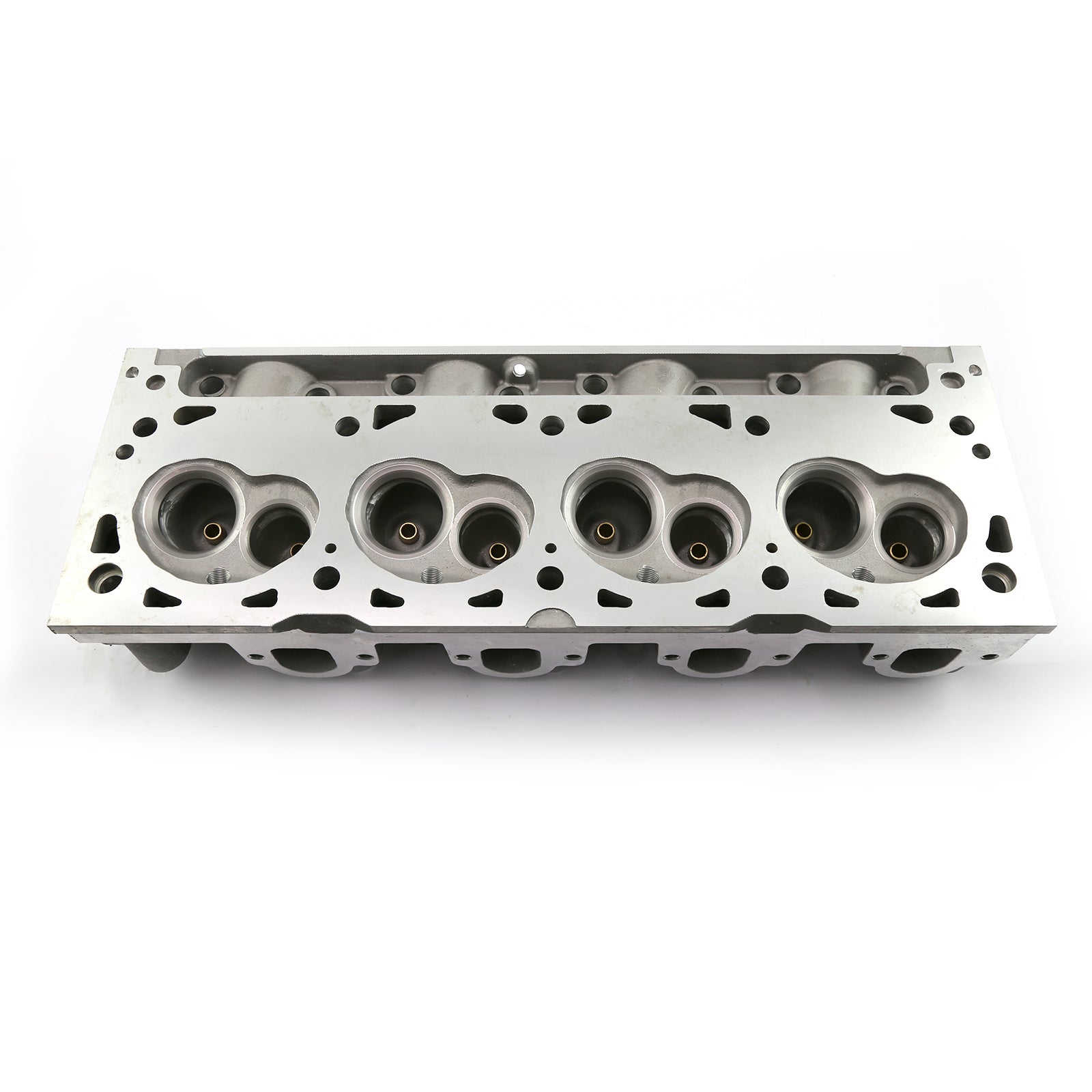

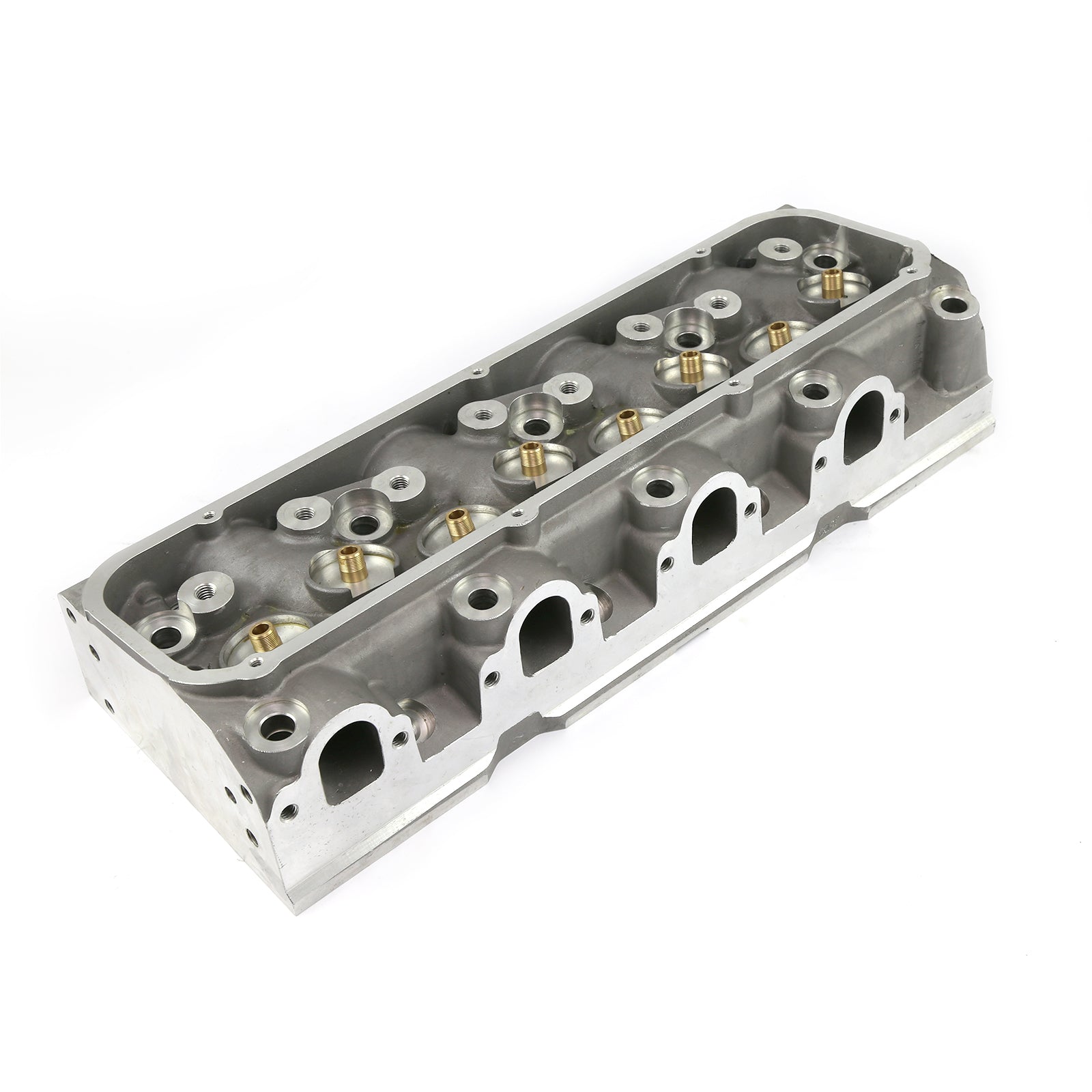

Ford 429 460 275cc 95cc Aluminum Bare Cylinder Head
Ford 429 460 275cc 95cc Aluminum Bare Cylinder Head
In stock
Couldn't load pickup availability
- Item Condition: Brand New
- Ships within 3 days
- 12-Month Limited Worldwide Warranty
Information
Specifications
| Brand: | Speedmaster |
| Part Number: | PCE281.1657 |
| Part Type: | Cylinder Head [Bare] |
| Cylinder Head Style: | Bare |
| Cylinder Head Material: | Aluminum |
| Cylinder Head Finish: | Natural |
| Combustion Chamber Volume (cc): | 95 cc |
| CNC-Machined Combustion Chamber: | No |
| Intake Runner Volume (cc): | 275 cc |
| Exhaust Runner Volume (cc): | n/a |
| CNC-Machined Intake Runner: | No |
| CNC-Machined Exhaust Runner: | No |
| Intake Port Shape: | Round |
| Intake Port Location: | Standard |
| Exhaust Port Shape: | D-port |
| Exhaust Port Location: | Standard |
| Spark Plug Style: | Standard |
| Comp. Valve Job: | No |
| Intake Valves Included: | No |
| Intake Valve Diameter (in): | 2.190 in. |
| Exhaust Valves Included: | No |
| Exhaust Valve Diameter (in): | 1.710 in. |
| Valve Springs Included: | No |
| Damper Spring Included: | No |
| Retainers Included: | No |
| Locks Included: | No |
| Valve Stem Seals Included: | No |
| Rocker Arm Studs Included: | No |
| Rocker Arms Included: | No |
| Rocker Arm Nuts Included: | No |
| Guideplates Included: | No |
| Valve Cover Mounting Style: | Perimeter Bolt |
| Accessory Bolt Holes Drilled: | Yes |
| Intake Valve Angle: | Standard |
| Exhaust Valve Angle: | Standard |
| Valve Guides Included: | Yes |
| Valve Guide Material: | Bronze |
| Valve Seats Machined: | Yes |
| Valve Seat Machine Style: | 3-angle |
| Valve Seat Material: | Ductile iron |
| Steam Holes Drilled: | No |
| Oiling Style: | Through pushrod |
| Machined for O-Ring: | No |
| Heat Crossover: | No |
| Quantity: | Sold individually. |
Speedmaster performance aluminum cylinder heads are also available for the Big Block Ford enthusiasts. With bigger displacement engines becoming more common, the need for more airflow is necessary. If you are looking to build a 400-700 horsepower engine then you should consider Speedmaster Aluminum cylinder heads. Like the rest of our performance heads we use our "Gravity Die Cast" process. This casting process creates a much more uniform and robust cylinder head. They also offer a smaller cross section to increase the incoming air"s velocity resulting in improved drivability, power and economy. We have them available in as cast for the mild street applications and in Fully CNC machined for the serious enthusiast. Speedmaster CNC ported cylinder heads are machined on a dedicated 5 axis CNC machining centers to ensure accuracy and cost effectiveness. Combustion chamber, exhaust and intake ports are fully CNC machined for better flow. CNC combustion chambers offer superior control over flame travel and quench area. CNC ported heads eliminate human error and variation from port to port.
Intake & Exhaust Gaskets
Our Big Block Ford (385 Series) cylinder heads are designed to work with standard intake manifolds and exhaust headers.
- Recommended Intake Gaskets:
- Speedmaster PCE349.1009
- Fel-Pro #1231 (alternative)
- Recommended Exhaust Gaskets:
- Speedmaster PCE355.1009
- Fel-Pro #1420 (standard paper gasket)
Head Gaskets
These cylinder heads are compatible with standard OEM-style head gaskets.
- Recommended Head Gasket (Engines under 4.500" Bore):
- Fel-Pro #1018
Head Bolts / Studs
Big Block Ford engines utilize 9/16" diameter head bolts or studs. Proper torque is essential for reliable sealing and performance.
- Torque Specification:
- 145 lb-ft with high-pressure moly lubricant
- Use a 3-step process: start at 70 lb-ft, then increase in 25 lb-ft increments
- Recommended Hardware Kits:
- Speedmaster Head Stud Kit: PCE279.1015
- Fel-Pro Head Bolt Kit: #155-4203
- Fel-Pro Head Stud Kit: #255-3701
Spark Plugs
These heads are designed for use with standard 14mm thread, 5/8" hex, 0.750" reach spark plugs. For best results, choose heat ranges appropriate for your application.
- Compatible Spark Plug Options:
- NGK: BCPR6ES, R5671A-7, R5671A-8
- Autolite: 3923, 3924, AR3933, AR3934
- Champion: RC12YC, RC10YC4, RC9YC3
Tip: For boosted or nitrous applications, a colder heat range plug is recommended.
