Speedmaster®
SKU:PCE211.1040

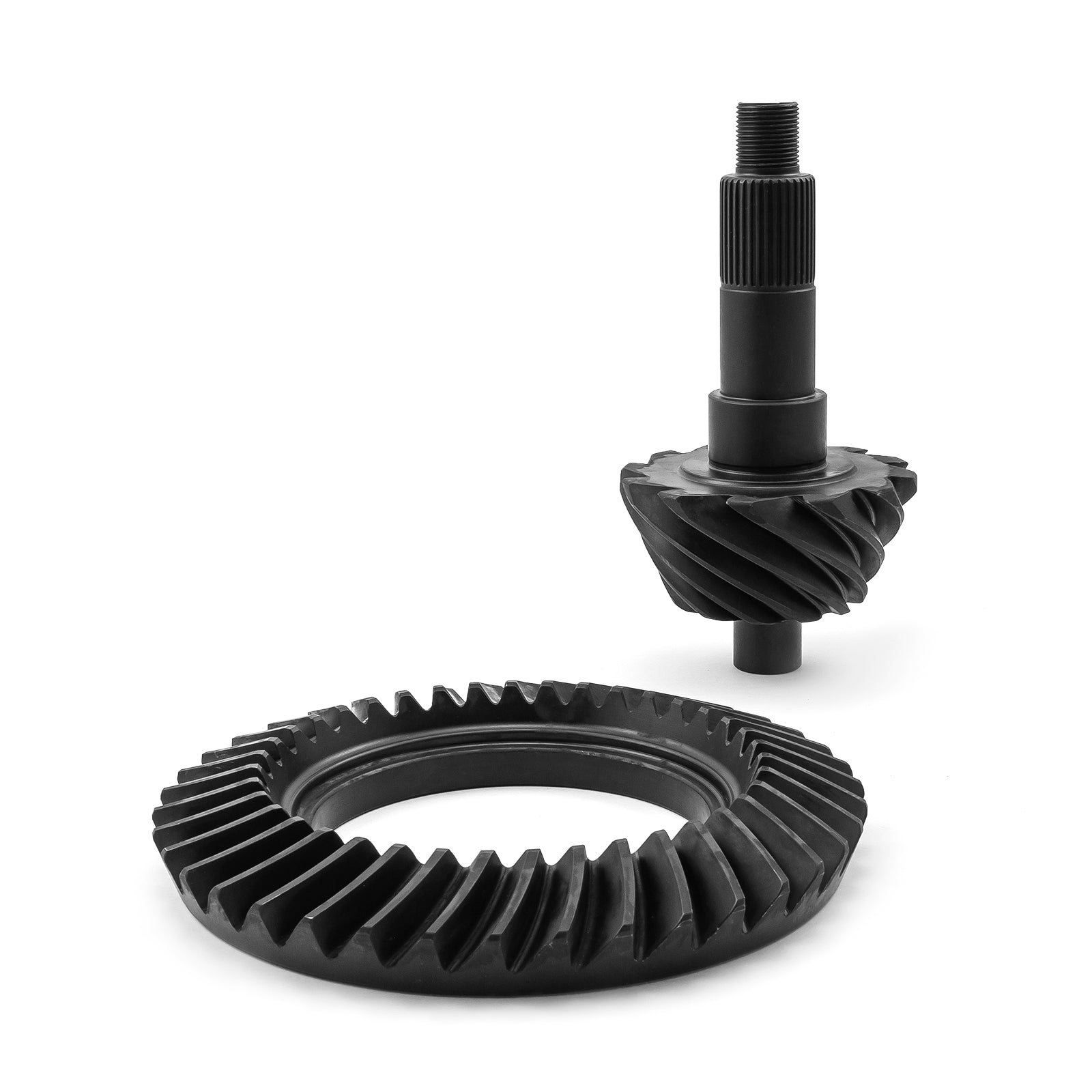

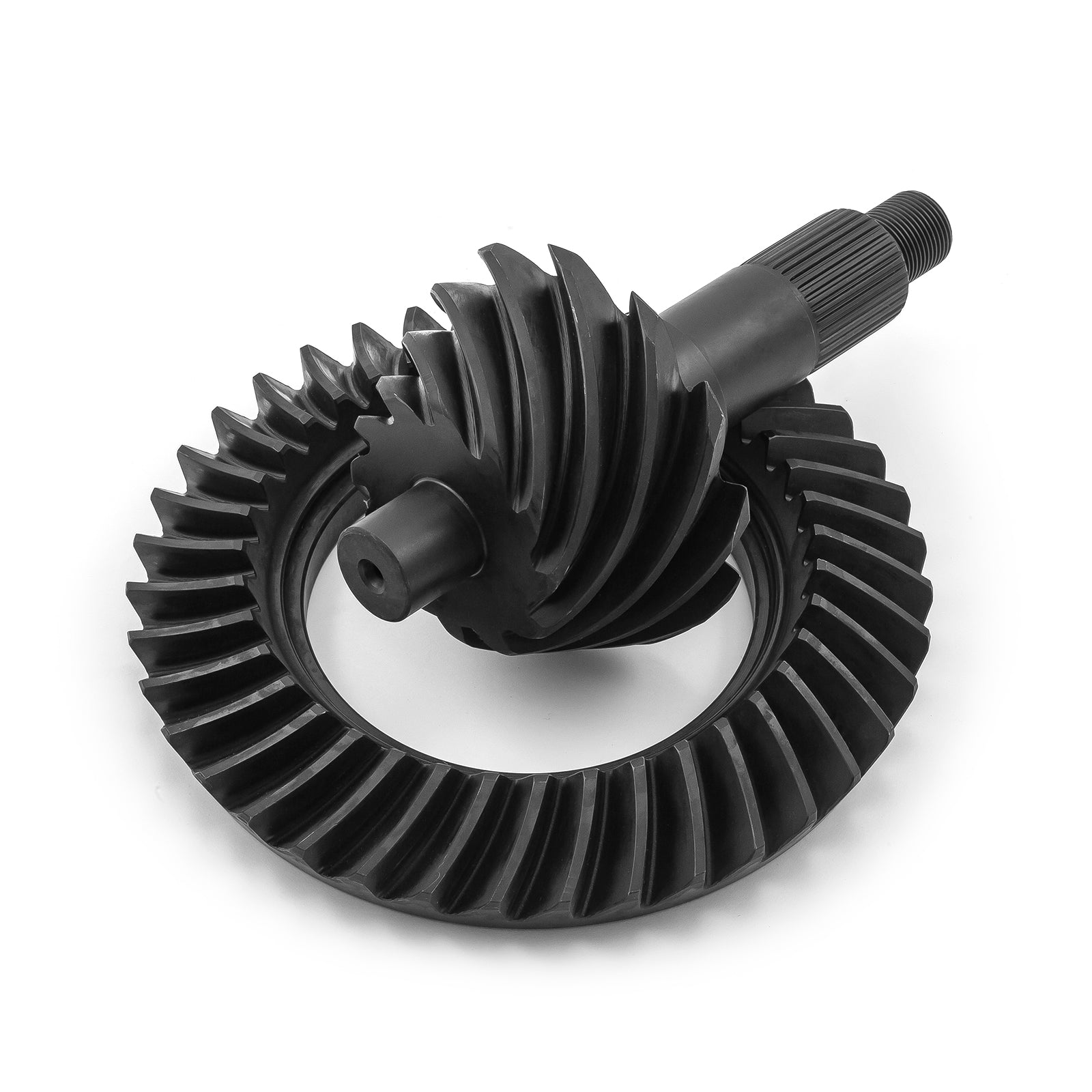

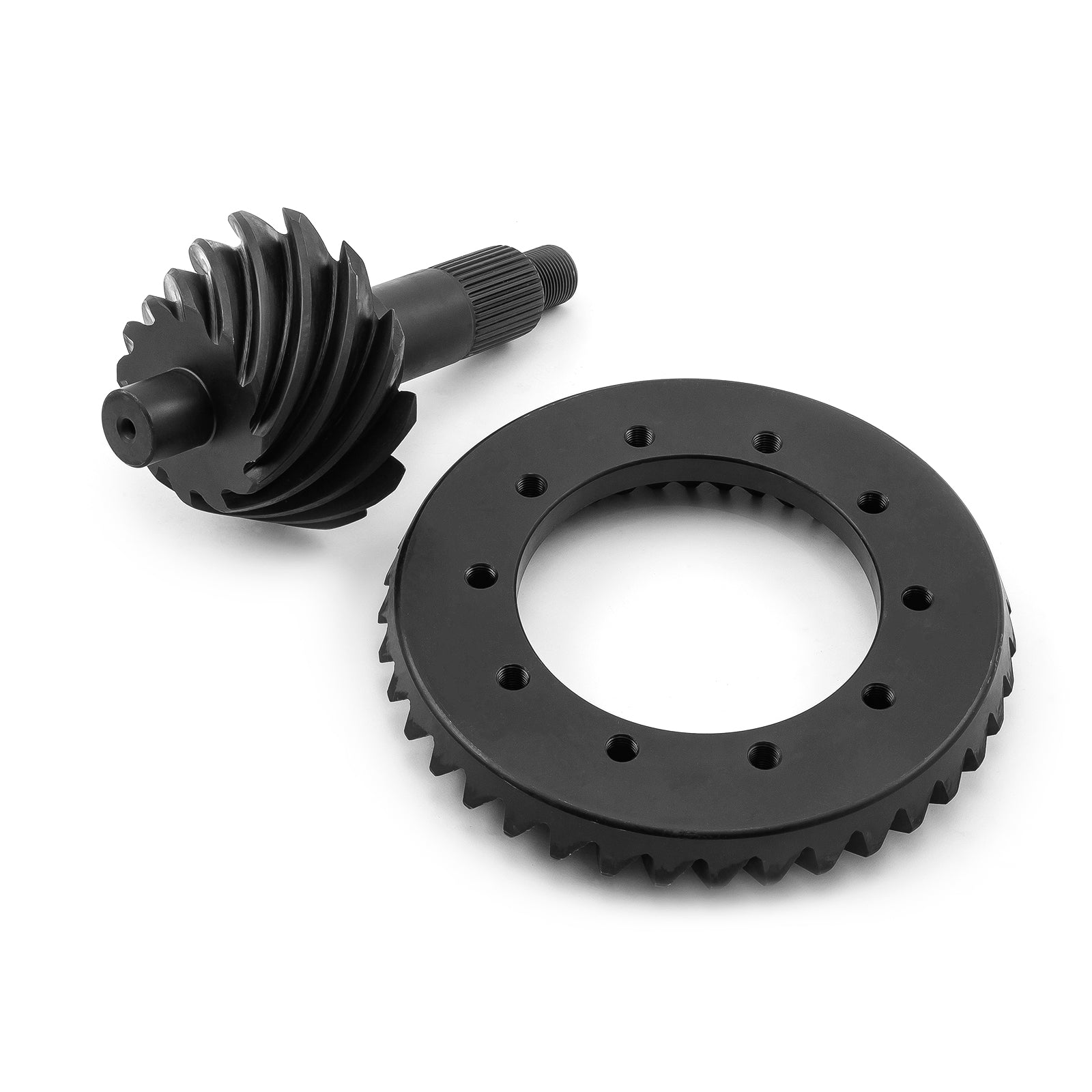

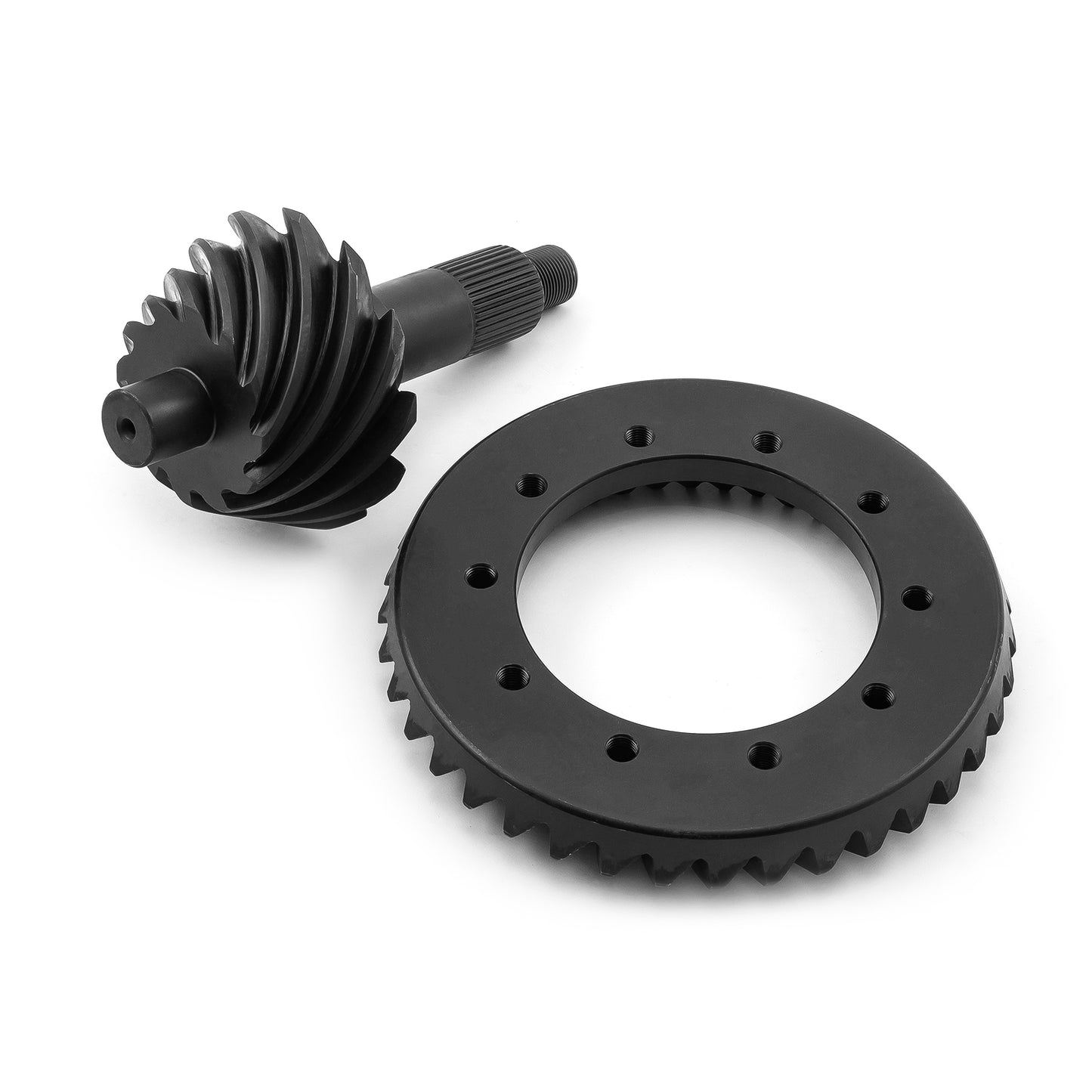

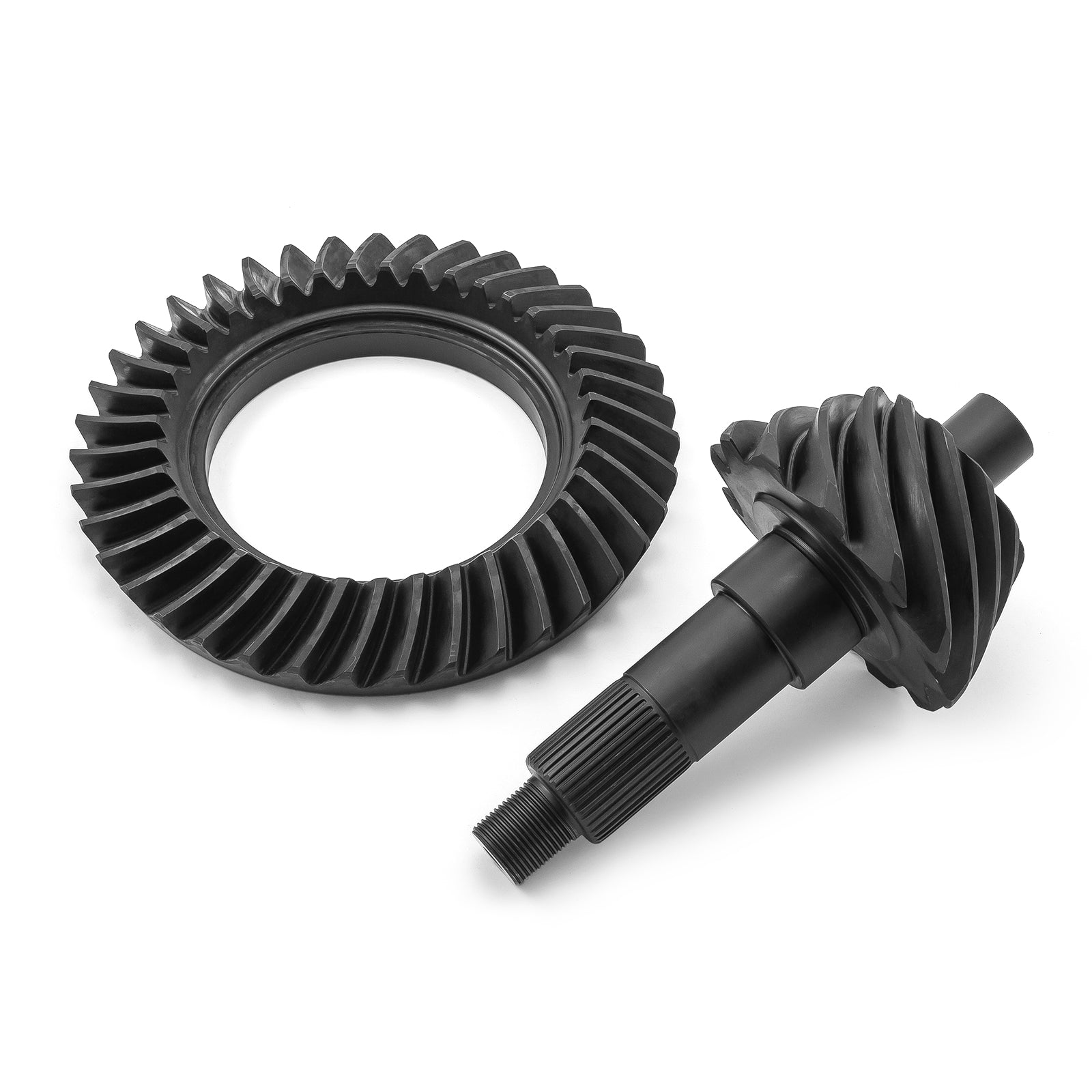

Ford 9" 35 Spline 3.25:1 Ratio Ring and Pinion Gears Set 8620
Ford 9" 35 Spline 3.25:1 Ratio Ring and Pinion Gears Set 8620
Regular price
$225.00 USD
Regular price
Sale price
$225.00 USD
In stock
Quantity
Couldn't load pickup availability
- Item Condition: Brand New
- Ships within 3 days
- 12-Month Limited Worldwide Warranty
Information
The Speedmaster TDS ring and pinion sets are engineered manufactured and tested for maximum performance.
Specifications
| Brand: | Speedmaster |
| Part Number: | PCE211.1040 |
| Part Type: | Ring and Pinion Gear |
| Ring and Pinion Material: | 8620 Steel |
| Ring and Pinion Ratio: | 3.25:1 |
| Cover Bolts: | 10 |
| Ring Gear Bolts: | 10 |
| Pinion Spline Count: | 35 |
| Carrier Series: | STD |
| Ring Gear Rotation: | STD |
| Ring Gear Teeth: | 39 |
| Pinion Gear Teeth: | 12 |
| Ring Gear Diameter (in): | 9.000 in. |
| Pinion Shaft Diameter (in): | 1.501 in. |
| Installation Kit Included: | No |
| Quantity: | Sold as a set. |
| Notes: | Street use only. |
These ring and pinion sets are CNC-cut from 8620 steel for outstanding durability, factory-lapped for a precise fit, and Rockwell-tested for hardness. Available in many different ratios to fit a variety of differentials.
