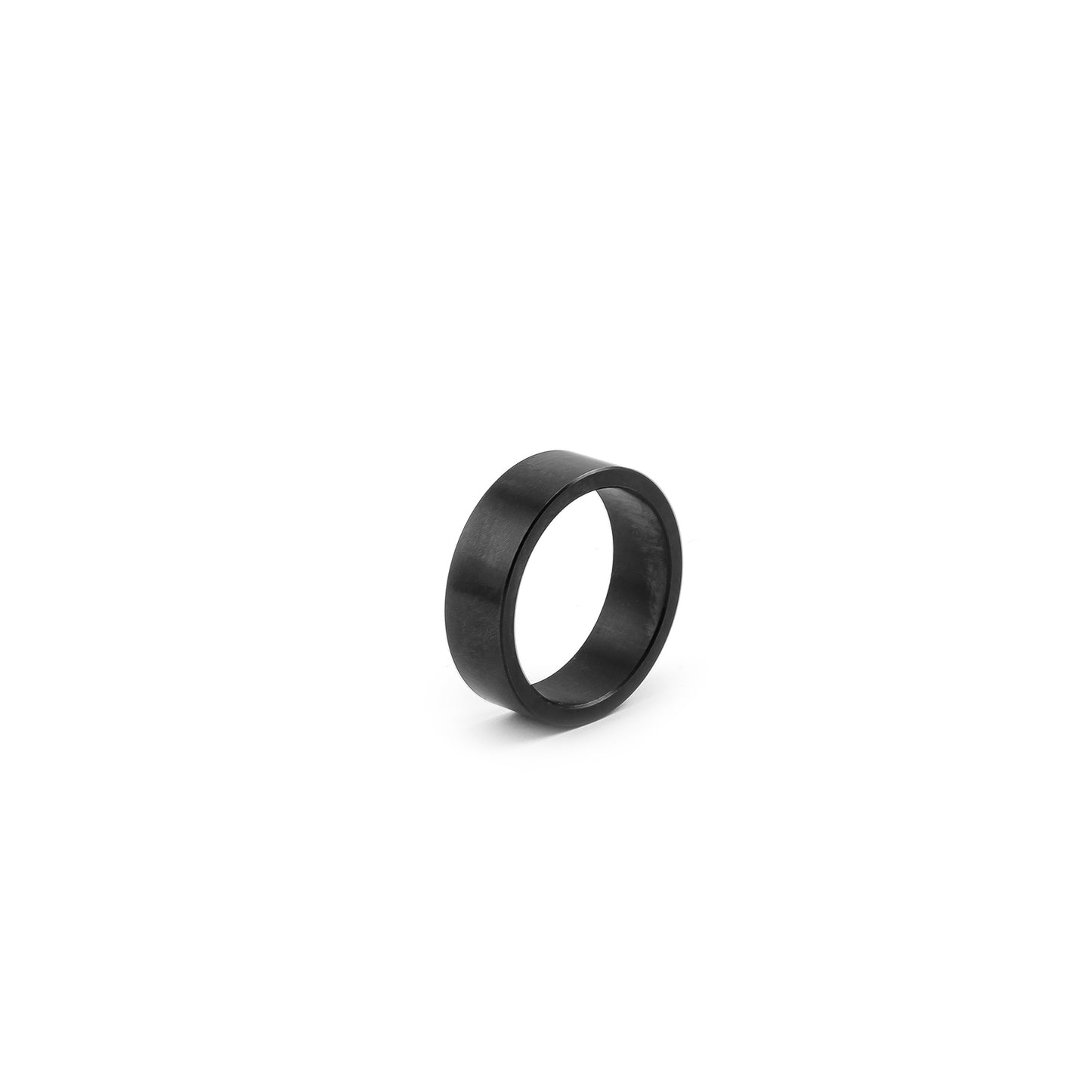

Ford 9" Standard 28 Spline Ring and Pinion Preload Shim Kit

The Speedmaster 9" solid pinion bearing spacer kit is designed to retain the pinion depth settings for greater strength and reliability. Spacer can be reused if disassembly of the carrier is required.

Brand:	Speedmaster
Part Number:	PCE206.1015
Part Type:	Differential Pinion Bearing Spacers and Sleeve
Preload Spacer Shim Thickness (in.):	0.004 in.
Preload Spacer Shim Thickness (in.):	0.005 in.
Preload Spacer Shim Thickness (in.):	0.010 in.
Preload Spacer Shim Thickness (in.):	0.020 in.
Solis Preload Spacer Thickness (in.):	0.4790 in.
Shim Inner Diameter (in.):	1.321 in.
Shim Outer Diameter (in.):	1.600 in.
Spacer Inner Diameter (in.):	1.3195 in.
Spacer Outer Diameter (in.):	1.5850 in
Shims Included:	Yes
Preload Spacer Included:	Yes
Quantity:	Sold as a kit.
Notes:	Each shim size comes with two quantities in the kit.
