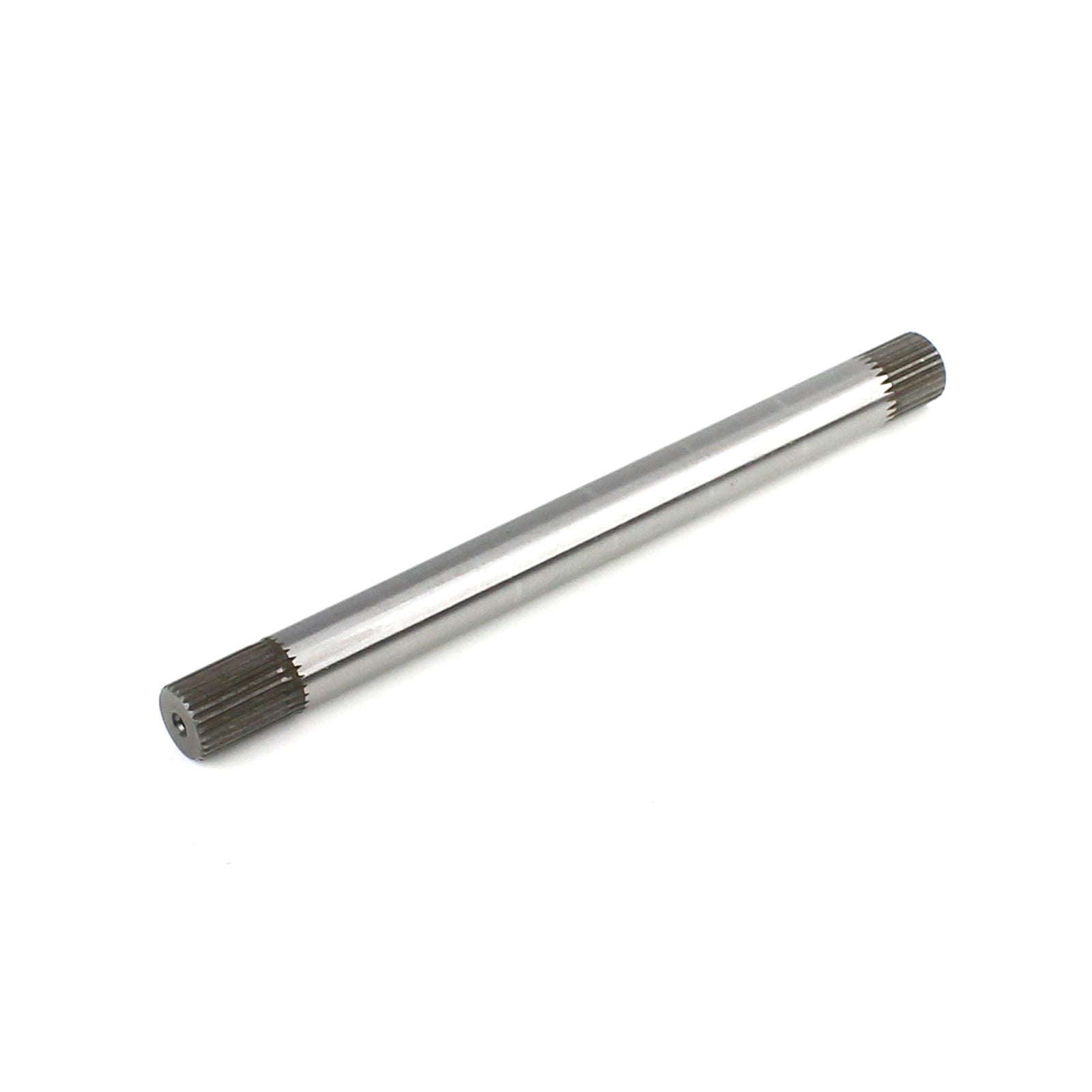

Ford C4 Automatic Transmission 0.788" 26/24 Spline Billet Steel 300M Input Shaft

These Performance Automatic hardened input shafts are custom-forged from 9310 non-twist steel. Quality, performance and great value make these hardened input shafts an essential component for anyone looking to raise their transmission to the next level.

Brand:	Speedmaster
Part Number:	PCE602.1008
Part Type:	Automatic Transmission Input Shaft
Input Shaft Material:	Billet Steel 300M
Quantity:	Sold individually.
Notes:	This input shaft converts from early C4 .788" 24 spline to late C4 .839" 26 spline.

The early model C4 (1964–1969) used a .788-inch 24-spline input shaft, which was upgraded in 1970 to 26-spline and .839-inch. The upgrade also included a matching clutch hub of 26-spline. In 1971, Ford went to a .839-inch 26/24-spline input shaft, meaning the torque-converter side is 26-spline and the clutch hub is 24-spline.

Models:

PCE602.1003 - 24/24 spline 0.788-inch : 1964–1969 C4, C5, C6, C7, C8, C9
PCE602.1002 - 26/26 spline 0.839-inch : 1970–1970 D0
PCE602.1001 - 26/24 spline 0.839-inch : 1971–1979 D1, D2, D3, D4, D5, D6, D7, D8, D9
PCE602.1008 - Early to Late Converter: 26 spline 0.839-inch to 24 spline 0.788-inch
