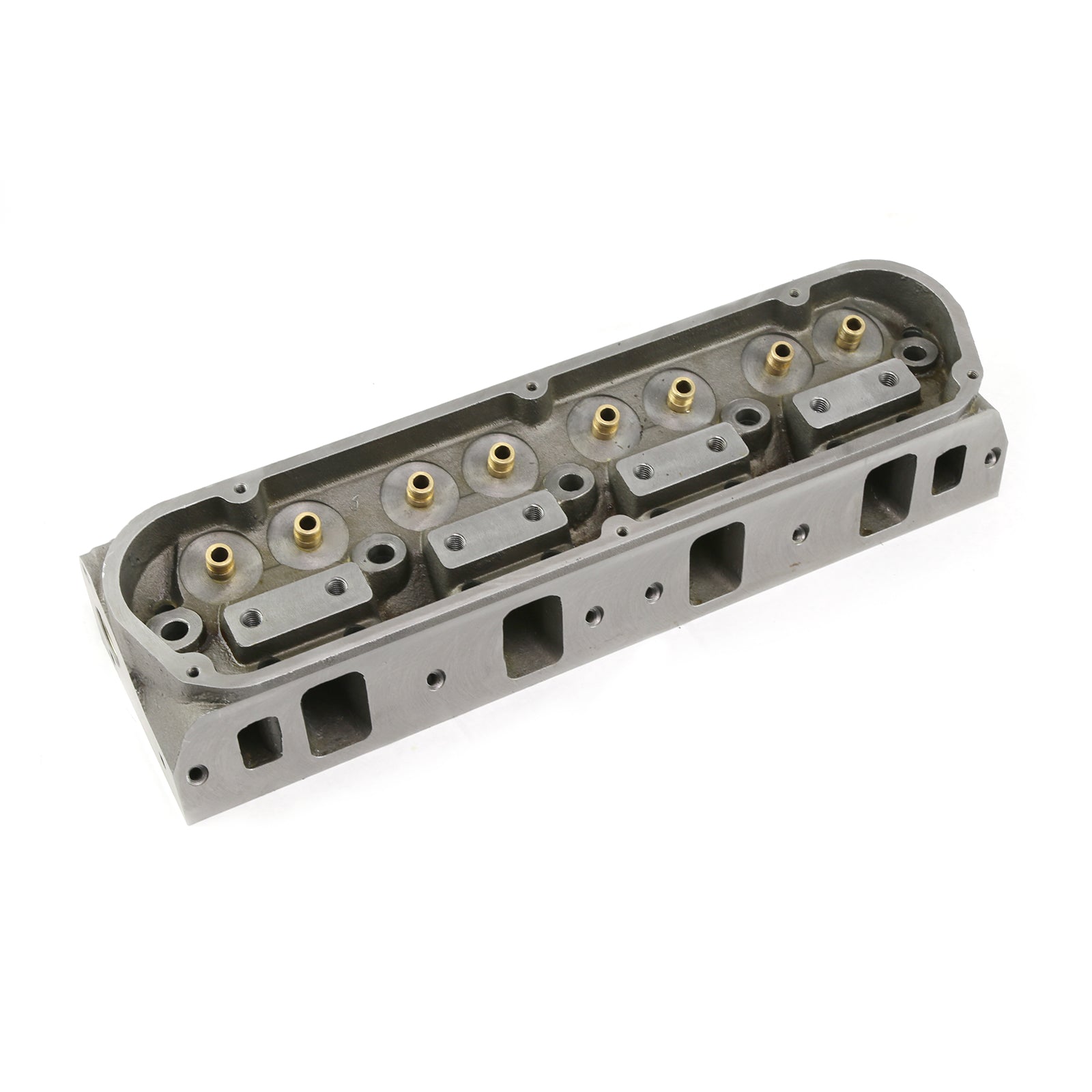

Ford SB 289 302 351 Windsor 180cc 60cc Cast Iron Bare Cylinder Head

Performance Cast Iron cylinder heads are designed to be a direct replacement for your worn or cracked heads. These are new castings, modeled off OE castings for factory fit and finish. Some applications feature a thicker deck to solve common warping or cracking issues. Instead of spending the time and money refurbishing your existing heads, use Speedmaster cast iron cylinder heads.

Brand:	Speedmaster
Part Number:	PCE281.1761
Part Type:	Cylinder Head [Bare]
Cylinder Head Style:	Bare
Cylinder Head Material:	Cast Iron
Cylinder Head Finish:	Natural
Combustion Chamber Volume (cc):	58 cc
CNC-Machined Combustion Chamber:	No
Intake Runner Volume (cc):	180 cc
Exhaust Runner Volume (cc):	64 cc
CNC-Machined Intake Runner:	No
CNC-Machined Exhaust Runner:	No
Intake Port Shape:	Square
Intake Port Location:	Standard
Exhaust Port Shape:	Square
Exhaust Port Location:	Standard
Intake Valves Included:	No
Intake Valve Diameter (in):	1.940 in.
Exhaust Valves Included:	No
Exhaust Valve Diameter (in):	1.600 in.
Valve Springs Included:	No
Damper Spring Included:	No
Retainers Included:	No
Locks Included:	No
Valve Stem Seals Included:	No
Rocker Arm Studs Included:	No
Rocker Arms Included:	No
Rocker Arm Nuts Included:	No
Guideplates Included:	No
Valve Cover Mounting Style:	Center & Perimeter Bolt
Accessory Bolt Holes Drilled:	Yes
Intake Valve Angle:	20 deg.
Exhaust Valve Angle:	20 deg.
Valve Guides Included:	Yes
Valve Guide Material:	Bronze
Valve Seats Machined:	Yes
Valve Seat Machine Style:	3-angle
Valve Seat Material:	Intake(Integral) Exhaust(Hardened)
Steam Holes Drilled:	No
Oiling Style:	Standard
Machined for O-Ring:	No
Heat Crossover:	No
Quantity:	Sold individually.
