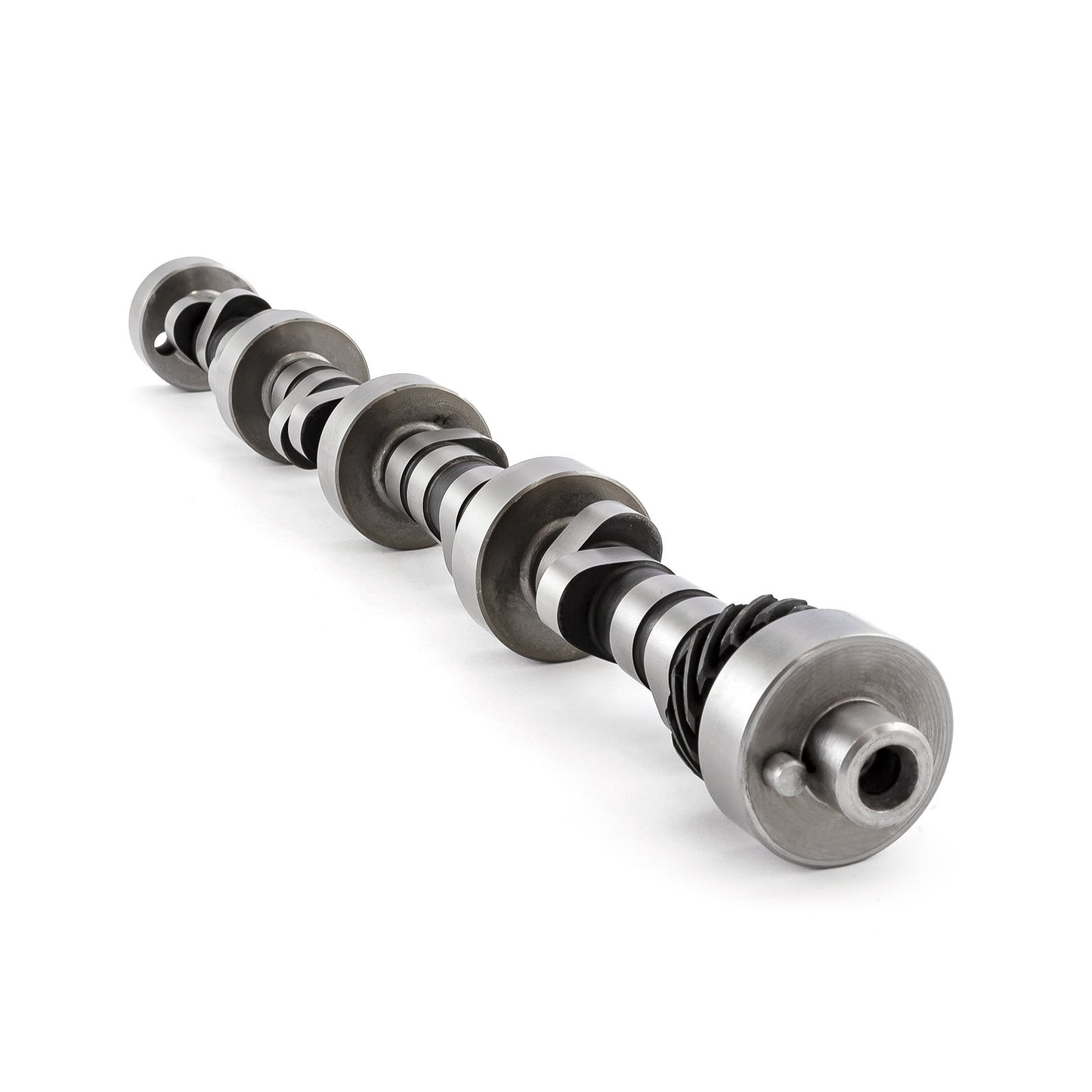

Ford SB 289 302 351 Windsor Hydraulic Roller Camshaft 230 Int. 236 Exh. Duration

Speedmaster camshafts are built to take advantage of the latest cam technology, to provide maximum performance. Whether your use is off-roading, towing, or street performance, there is a Speedmaster cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers, while delivering increased engine vacuum.

Brand:	Speedmaster
Part Number:	PCE249.1015
Part Type:	Camshaft
Cam Style:	Hydraulic roller, Retro-fit
Basic Operating RPM Range:	2,000-6,000
Intake Duration at 050 inch Lift:	230
Exhaust Duration at 050 inch Lift:	236
Duration at 050 inch Lift:	230 int./236 exh.
Advertised Intake Duration:	282
Advertised Exhaust Duration:	289
Advertised Duration:	282 int./289 exh.
Intake Valve Lift with Factory Rocker Arm Ratio:	0.513 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio:	0.529 in.
Valve Lift with Factory Rocker Arm Ratio:	0.513 int./0.529 exh.
Lobe Separation (degrees):	110
Computer-Controlled Compatible:	No
Valve Springs Required:	Yes
Quantity:	Sold individually.
Notes:	Must use 351W Firing Order: 1 - 3 - 7 - 2 - 6 - 5 - 4 - 8
