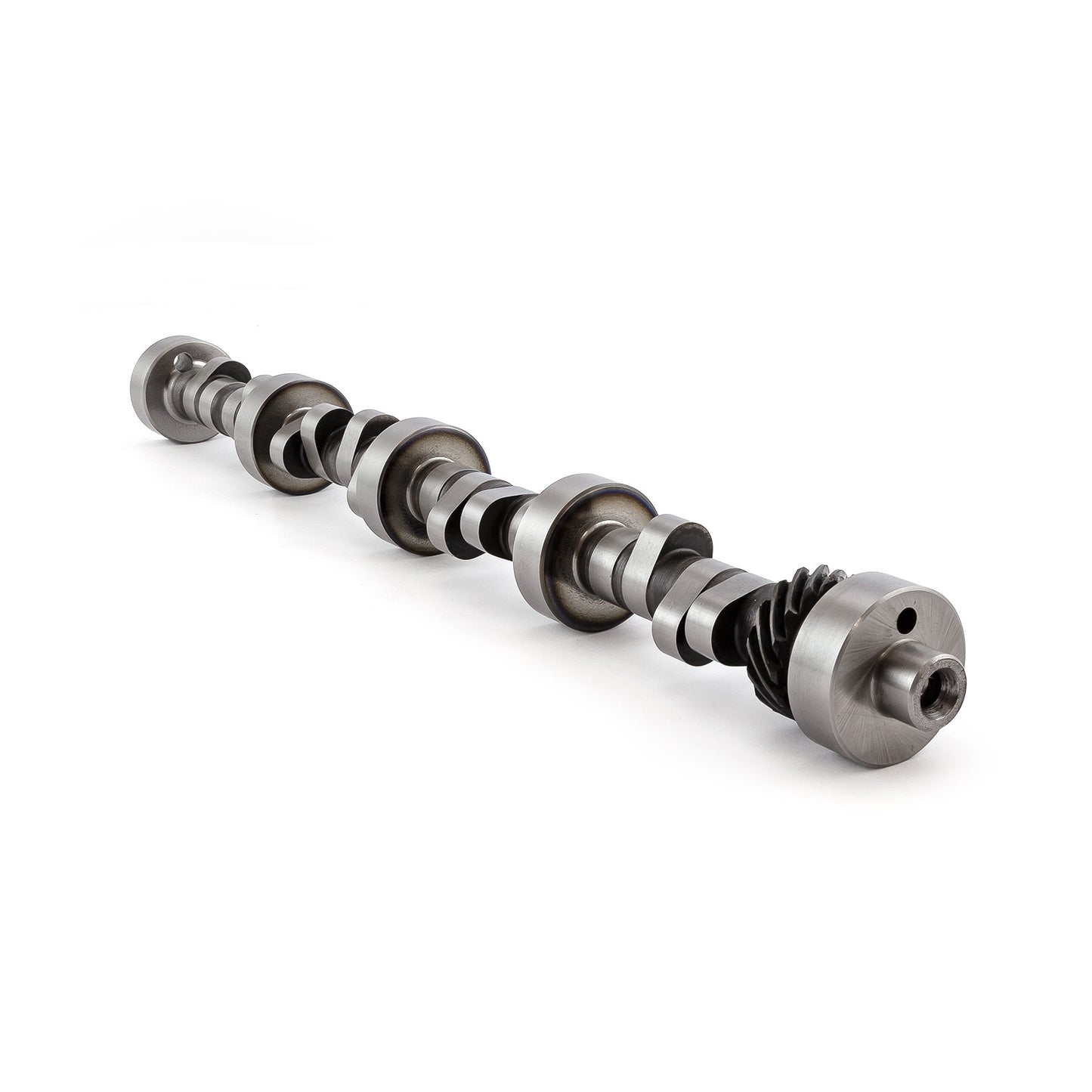

Ford SB 289 302 351 Windsor Hydraulic Roller Camshaft 236 Int. 240 Exh. Duration

Speedmaster camshafts are built to take advantage of the latest cam technology, to provide maximum performance. Whether your use is off-roading, towing, or street performance, there is a Speedmaster cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers, while delivering increased engine vacuum.

Brand:	Speedmaster
Part Number:	PCE249.1017
Part Type:	Camshaft
Cam Style:	Hydraulic roller, Retro-fit
Basic Operating RPM Range:	2,200-6,200
Intake Duration at 050 inch Lift:	236
Exhaust Duration at 050 inch Lift:	240
Duration at 050 inch Lift:	236 int./240 exh.
Advertised Intake Duration:	288
Advertised Exhaust Duration:	294
Advertised Duration:	288 int./294 exh.
Intake Valve Lift with Factory Rocker Arm Ratio:	0.555 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio:	0.576 in.
Valve Lift with Factory Rocker Arm Ratio:	0.555 int./0.576 exh.
Lobe Separation (degrees):	110
Computer-Controlled Compatible:	No
Valve Springs Required:	Yes
Quantity:	Sold individually.
Notes:	Must use 351W Firing Order: 1 - 3 - 7 - 2 - 6 - 5 - 4 - 8
