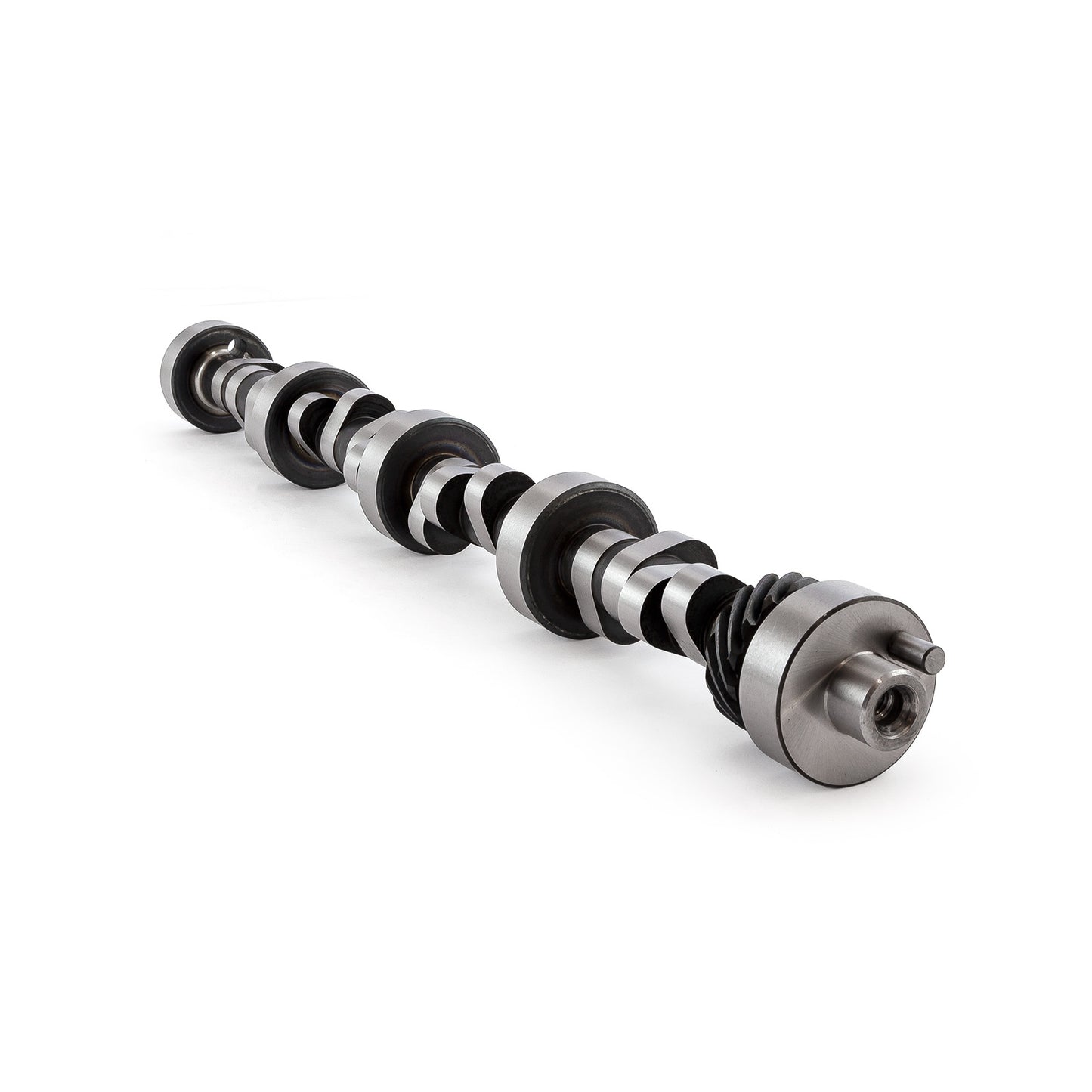

Ford SB 289 302 351 Windsor Hydraulic Roller Camshaft 242 int. 248 Exh. Duration

Speedmaster camshafts are built to take advantage of the latest cam technology, to provide maximum performance. Whether your use is off-roading, towing, or street performance, there is a Speedmaster cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers, while delivering increased engine vacuum.

Brand:	Speedmaster
Part Number:	PCE249.1018
Part Type:	Camshaft
Cam Style:	Hydraulic roller, Retro-fit
Basic Operating RPM Range:	2,500-6,500
Intake Duration at 050 inch Lift:	242
Exhaust Duration at 050 inch Lift:	248
Duration at 050 inch Lift:	242 int./248 exh.
Advertised Intake Duration:	294
Advertised Exhaust Duration:	300
Advertised Duration:	294 int./300 exh.
Intake Valve Lift with Factory Rocker Arm Ratio:	0.576 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio:	0.600 in.
Valve Lift with Factory Rocker Arm Ratio:	0.576 int./0.600 exh.
Lobe Separation (degrees):	110
Computer-Controlled Compatible:	No
Valve Springs Required:	Yes
Quantity:	Sold individually.
Notes:	Must use 351W Firing Order: 1 - 3 - 7 - 2 - 6 - 5 - 4 - 8
