Speedmaster®

PCE274.1062

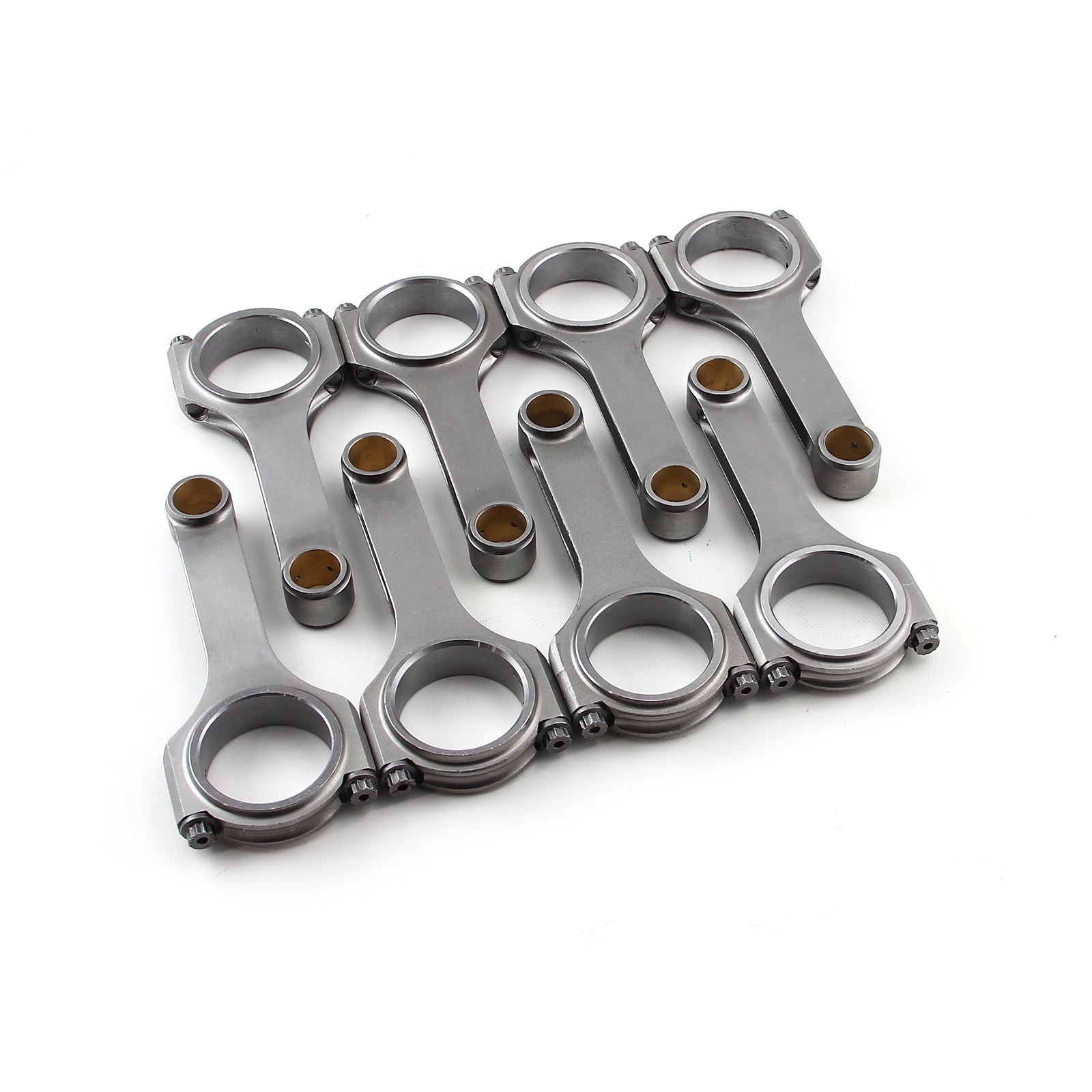

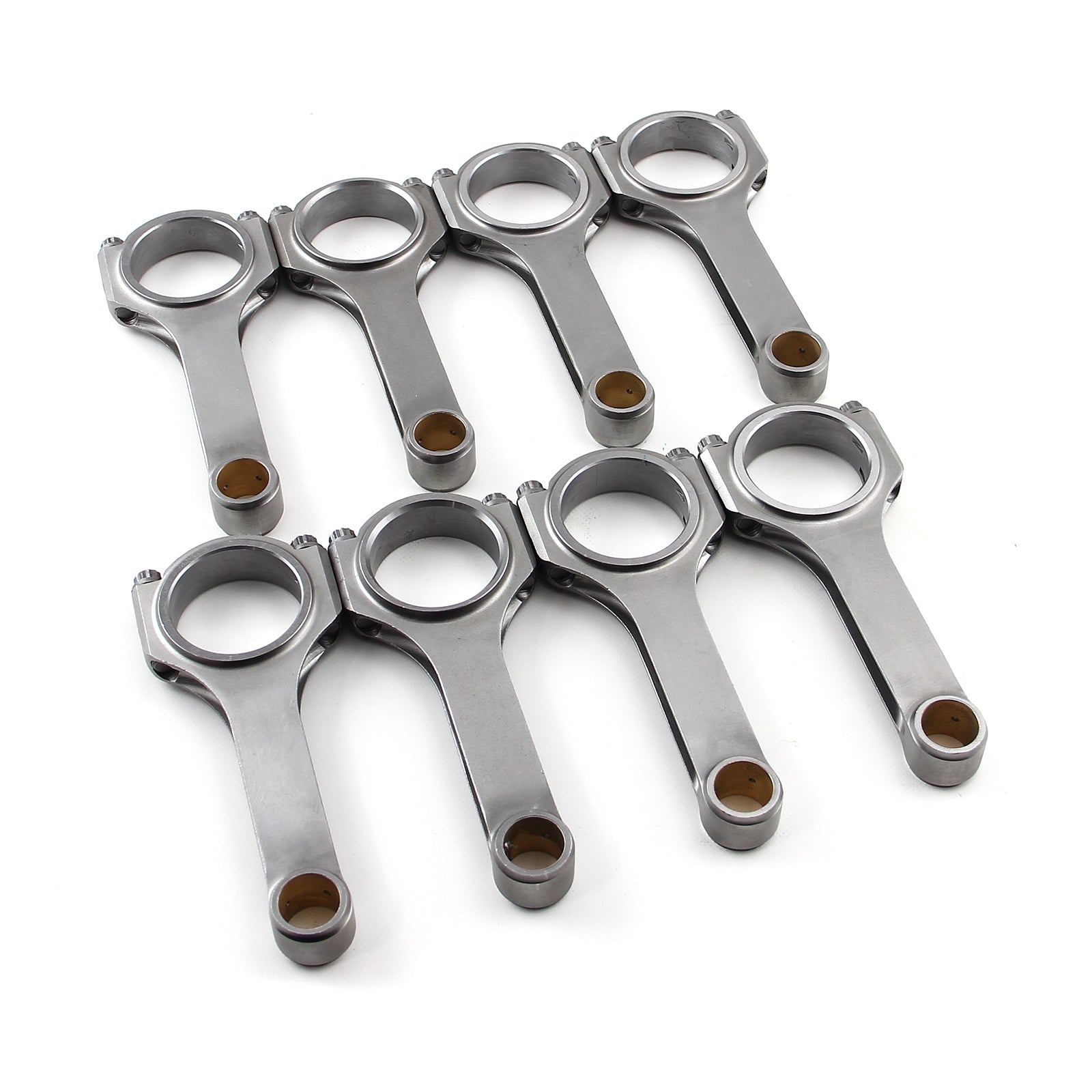

H Beam 5.933" 2.086" .866" Bronze Bush 4340 Connecting Rods (Ford 4.6L / Coyote)

H Beam 5.933" 2.086" .866" Bronze Bush 4340 Connecting Rods (Ford 4.6L / Coyote)

$414.50 USD
$414.50 USD
Sale Sold out

In stock
  • Item Condition: Brand New
  • Ships within 3 days
  • 12-Month Limited Worldwide Warranty
View full details

Information

Specifications

Brand:Speedmaster
Part Number:PCE274.1062
Part Type:Connecting Rod
Product Line:H-Beam
Connecting Rod Length Center to Center (in):5.933 in.
Connecting Rod Beam Style:H-beam Street/Strip
Connecting Rod Material:4340 Chromoly Steel
Connecting Rod Finish:Shot-peened
Wrist Pin Style:Floating
Clearanced for Stroker:Yes
Cap Retention Style:Through-bolt
Connecting Rod Bolt Brand:PCE
Connecting Rod Bolt Diameter:7/16 in.
Connecting Rod Bolt Material:Chromoly steel
Fastener Yield Strength (psi):200,000 psi
Connecting Rod Bolt Head Style:12-point
Approximate Connecting Rod Weight (g):n/a
Rod Journal Diameter (in):2.086 in.
Big End Bore Diameter (in):2.2390 in.
Pin End Bore Diameter (in):0.866 in.
Big End Width (in):0.938 in.
Advertised Horsepower Rating (hp):700 hp
Advertised RPM Rating:7,500 rpm
Weight Matched Set:Yes
Remanufactured:No
Magnafluxed:Yes
Quantity:Sold as a set of 8.
Tool:Stroker Combinations

Speedmaster H-beam connecting rods are one of the strongest connecting rods available. Speedmaster H-beam connecting rods are perfect for supercharged and nitrous applications. These rods incorporate a special doweled cap for specific cap-to-rod alignment and are profiled with extra clearance for stroker applications.

Speedmaster H Beam Street / Strip connecting rods are manufactured from aircraft quality 4340 chromoly steel. The rods are x-rayed and ultrasonically tested with all surfaces shot peened and stress relieved.
