Speedmaster®
SKU:PCE274.1124

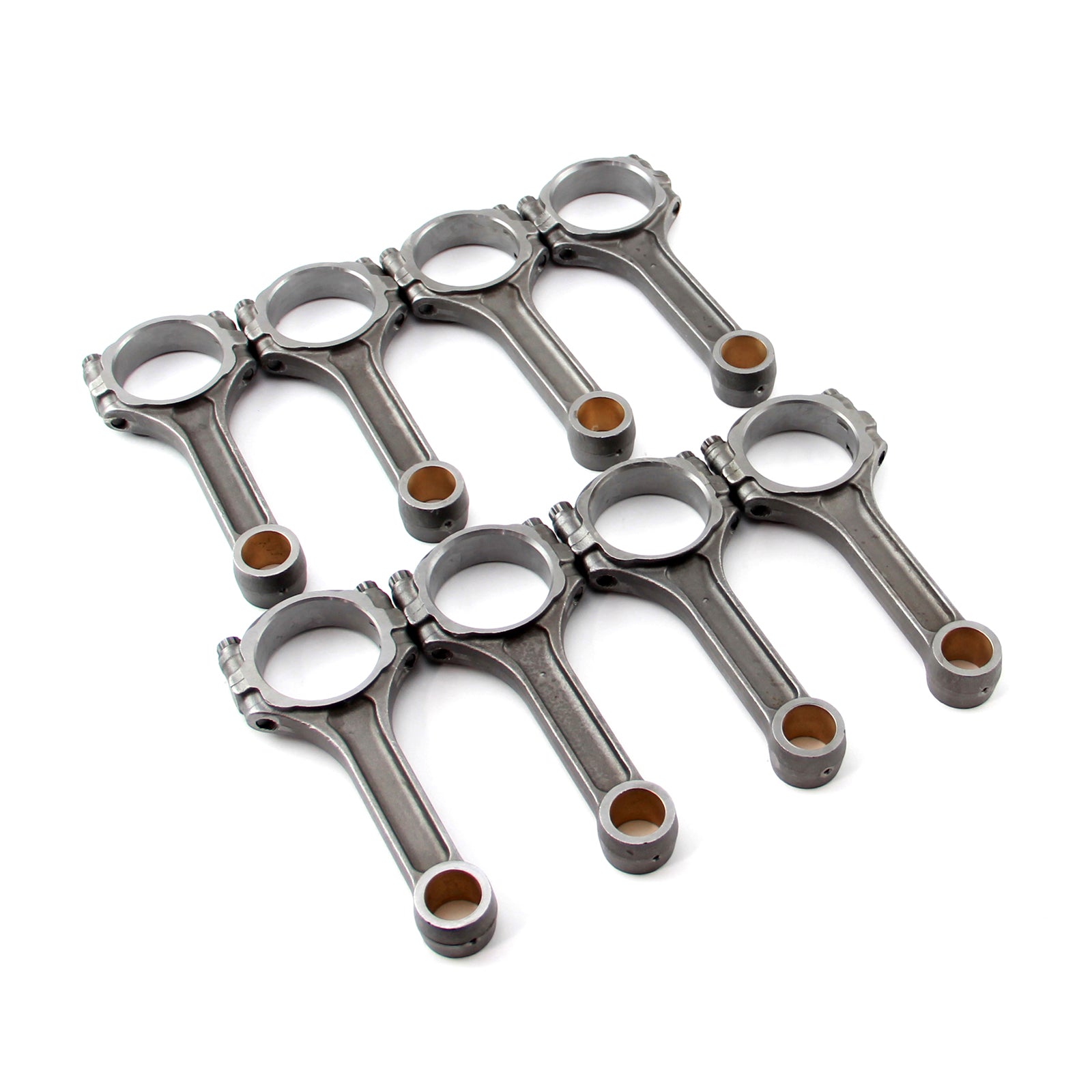

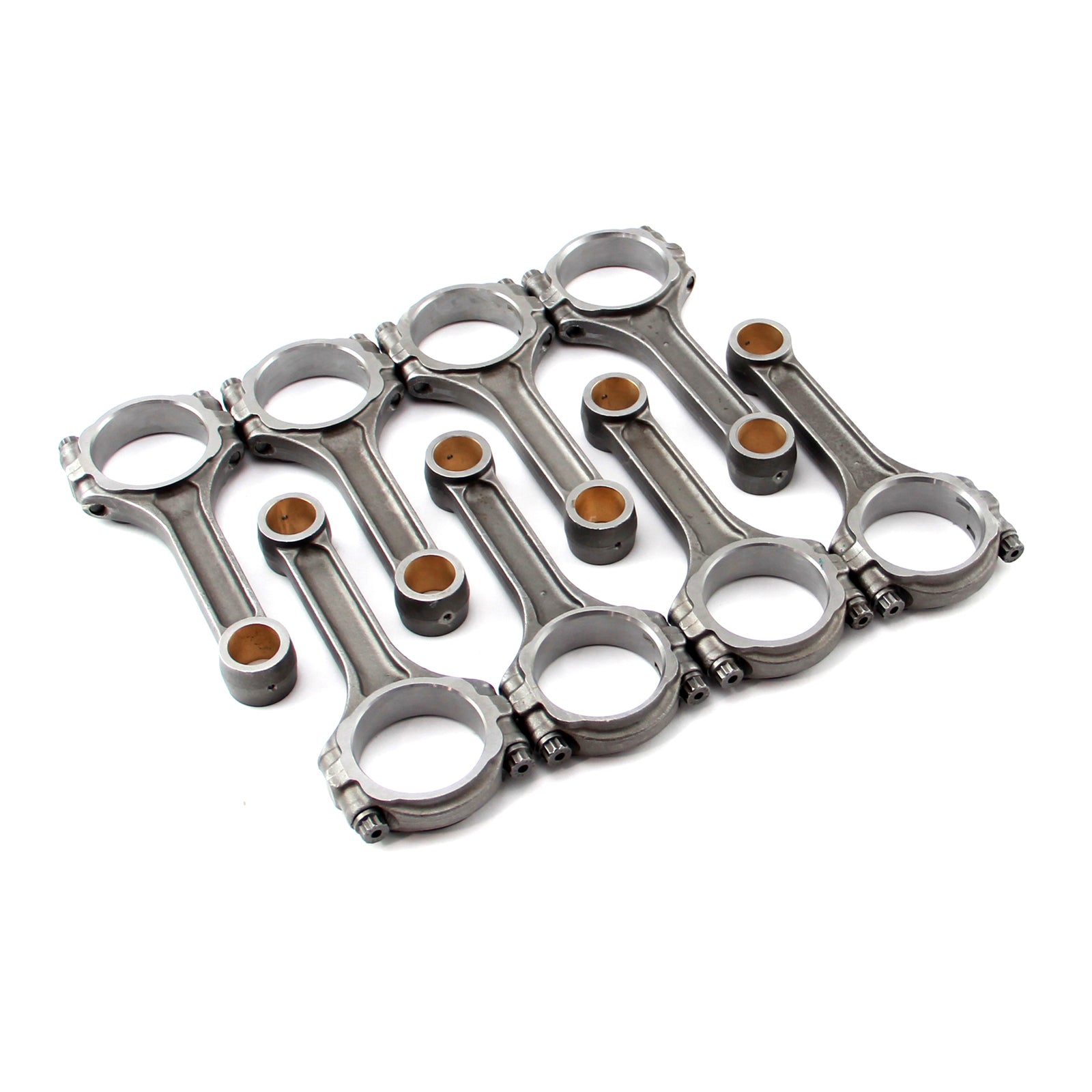

I Beam 6.125" 2.100" .830" Bronze Bush 5140 Connecting Rods Suits: Chevy SBC 350
I Beam 6.125" 2.100" .830" Bronze Bush 5140 Connecting Rods Suits: Chevy SBC 350
Low stock
Couldn't load pickup availability
- Item Condition: Brand New
- Ships within 3 days
- 12-Month Limited Worldwide Warranty
Information
Specifications
| Brand: | Speedmaster |
| Part Number: | PCE274.1124 |
| Part Type: | Connecting Rod |
| Product Line: | I-Beam |
| Â | Â |
| Connecting Rod Length Center to Center (in): | 6.125 in. |
| Connecting Rod Beam Style: | I-beam Street |
| Connecting Rod Material: | 5140 Chromoly Steel |
| Connecting Rod Finish: | Shot-peened |
| Wrist Pin Style: | Floating |
| Clearanced for Stroker: | No |
| Cap Retention Style: | Through-bolt |
| Connecting Rod Bolt Brand: | PCE |
| Connecting Rod Bolt Diameter: | 3/8 in. |
| Connecting Rod Bolt Material: | Chromoly steel |
| Fastener Yield Strength (psi): | 200,000 psi |
| Connecting Rod Bolt Head Style: | 12-point |
| Approximate Connecting Rod Weight (g): | 699g |
| Rod Journal Diameter (in): | 2.100 in. |
| Big End Bore Diameter (in): | 2.210 in. |
| Pin End Bore Diameter (in): | 0.927 in. |
| Big End Width (in): | 0.830 in. |
| Advertised Horsepower Rating (hp): | 500 hp |
| Advertised RPM Rating: | 6,000 rpm |
| Weight Matched Set: | Yes |
| Remanufactured: | No |
| Magnafluxed: | Yes |
| Quantity: | Sold as a set of 8. |
| Tool: | Stroker Combinations |
These Speedmaster I-beam connecting rods incorporate all of the best features possible for an I-beam rod, including some strength adders found in H-beam designs. Speedmaster I-beam connecting rods are profiled with clearance for long stroke applications. These connecting rods feature a one-rib cap design for added strength and bearing support, polished beams to eliminate stress risers. Speedmaster cap screw bolts to greatly increase strength and horsepower capabilities.
Speedmaster I Beam Street connecting rods are manufactured from high quality 5140 chromoly steel. The rods are x-rayed and ultrasonically tested with all surfaces shot peened and stress relieved.
