Speedmaster®
SKU:PCE382.1003

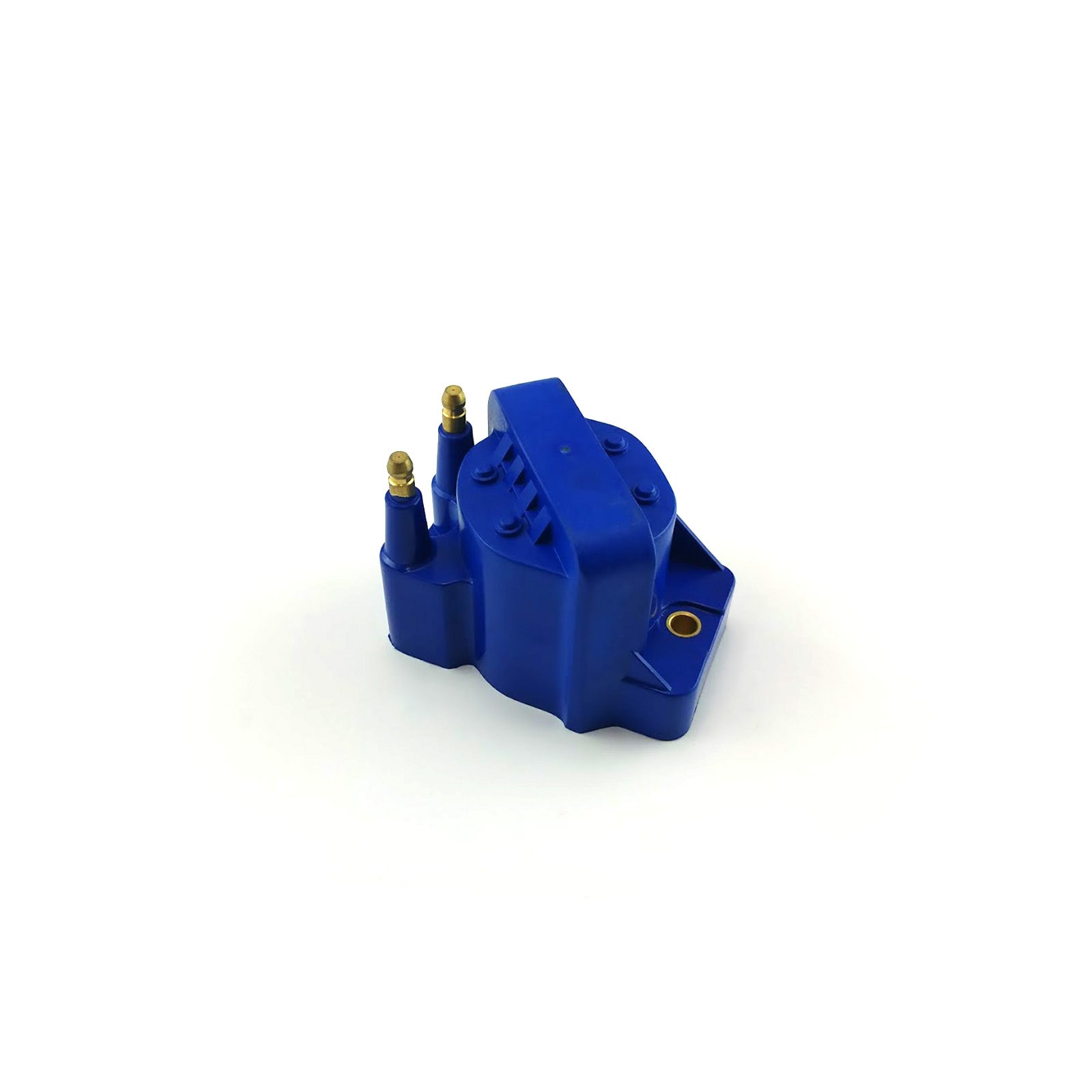

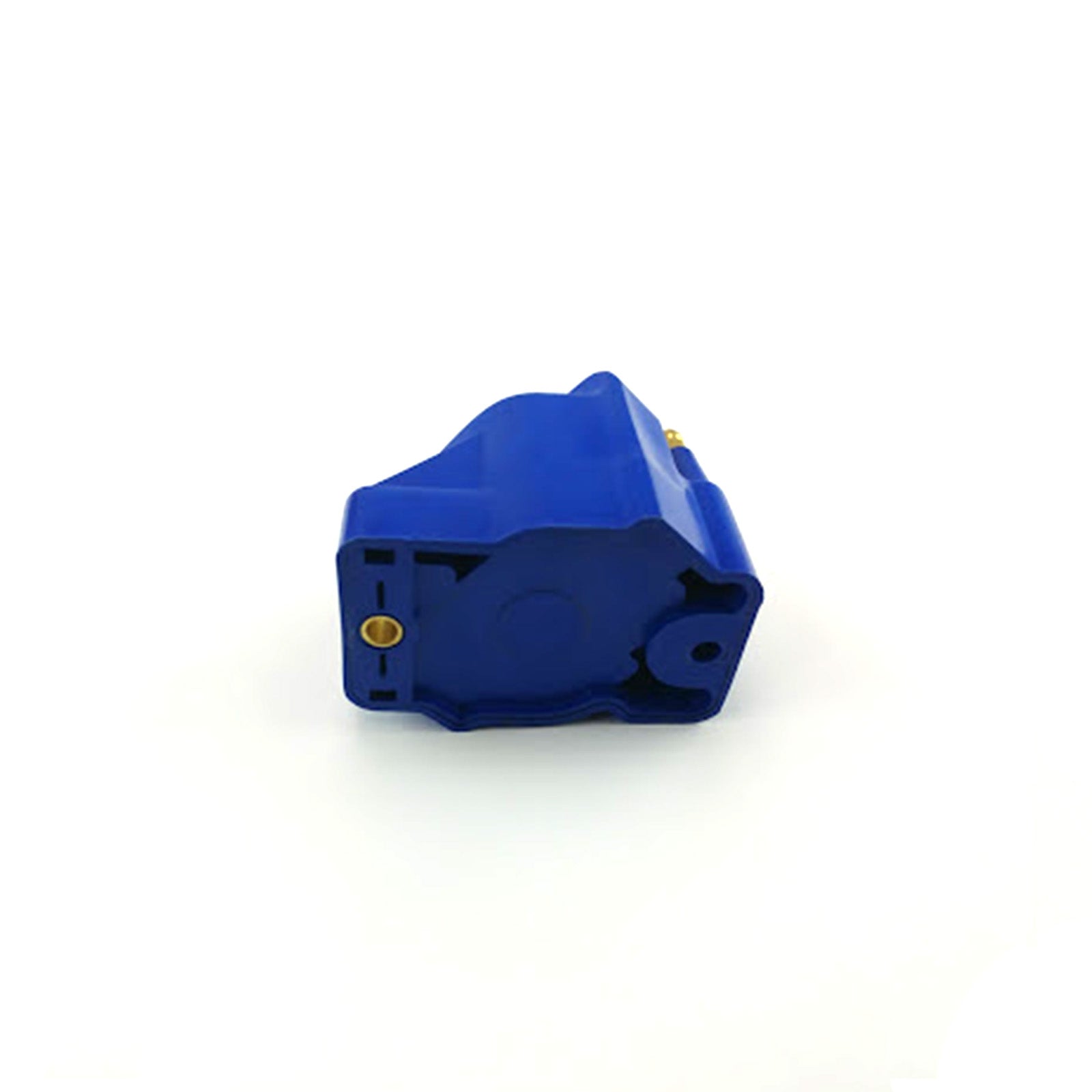

Late Model 12V High Output External Male DIS - 2 Tower Ignition Coil
Late Model 12V High Output External Male DIS - 2 Tower Ignition Coil
Regular price
$25.10 USD
Regular price
$35.90 USD
Sale price
$25.10 USD
In stock
Quantity
Couldn't load pickup availability
- Item Condition: Brand New
- Ships within 3 days
- 12-Month Limited Worldwide Warranty
Information
When it comes to late model performance components nothing beats the simplicity of bolt on direct connection. This new offering from PCE, bolt in coils are designed with improved materials over stock and windings to produce a stronger input.
Specifications
| Brand: | Speedmaster |
| Part Number: | PCE382.1003 |
| Part Type: | Ignition Coil |
| Coil Wire Attachment: | Male/HEI |
| Coil Style: | E-core |
| Primary Resistance: | 0.35 ohms |
| Coil Internal Construction: | Epoxy |
| Coil Color: | Blue |
| Maximum Voltage: | 40,000 V |
| Turns Ratio: | 80:1 |
| Secondary Resistance: | 7.8K ohms |
| Inductance: | 4.2 mH |
| Peak Current: | 300 mA |
| Spark Duration: | 200 uS |
| Mounting Bracket Included: | Yes |
| Coil Wire Included: | No |
| Ballast Resistor Included: | N/A |
| Coil Shape: | Stock |
| Quantity: | Sold individually. |
