Speedmaster®
SKU:PCE435.1075

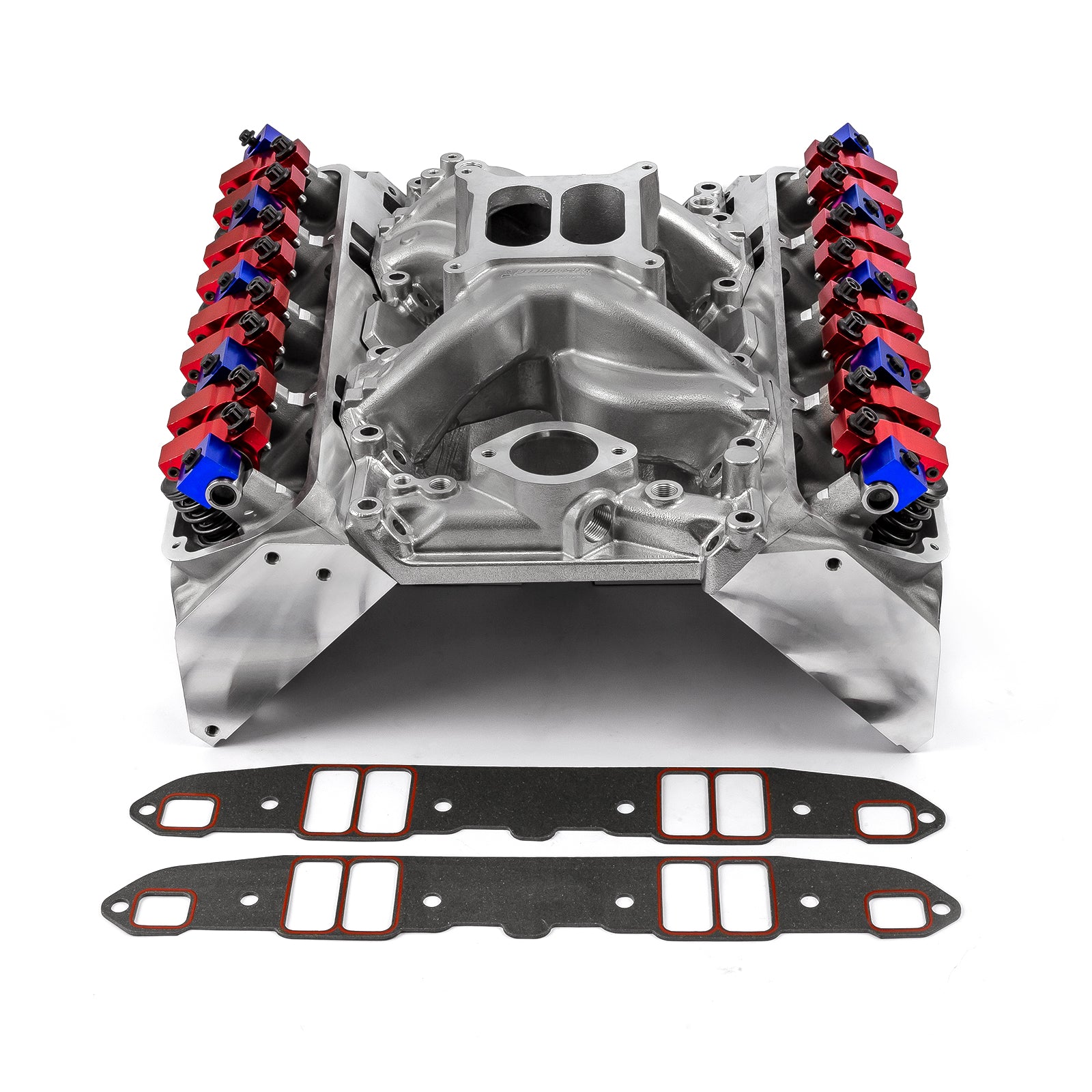

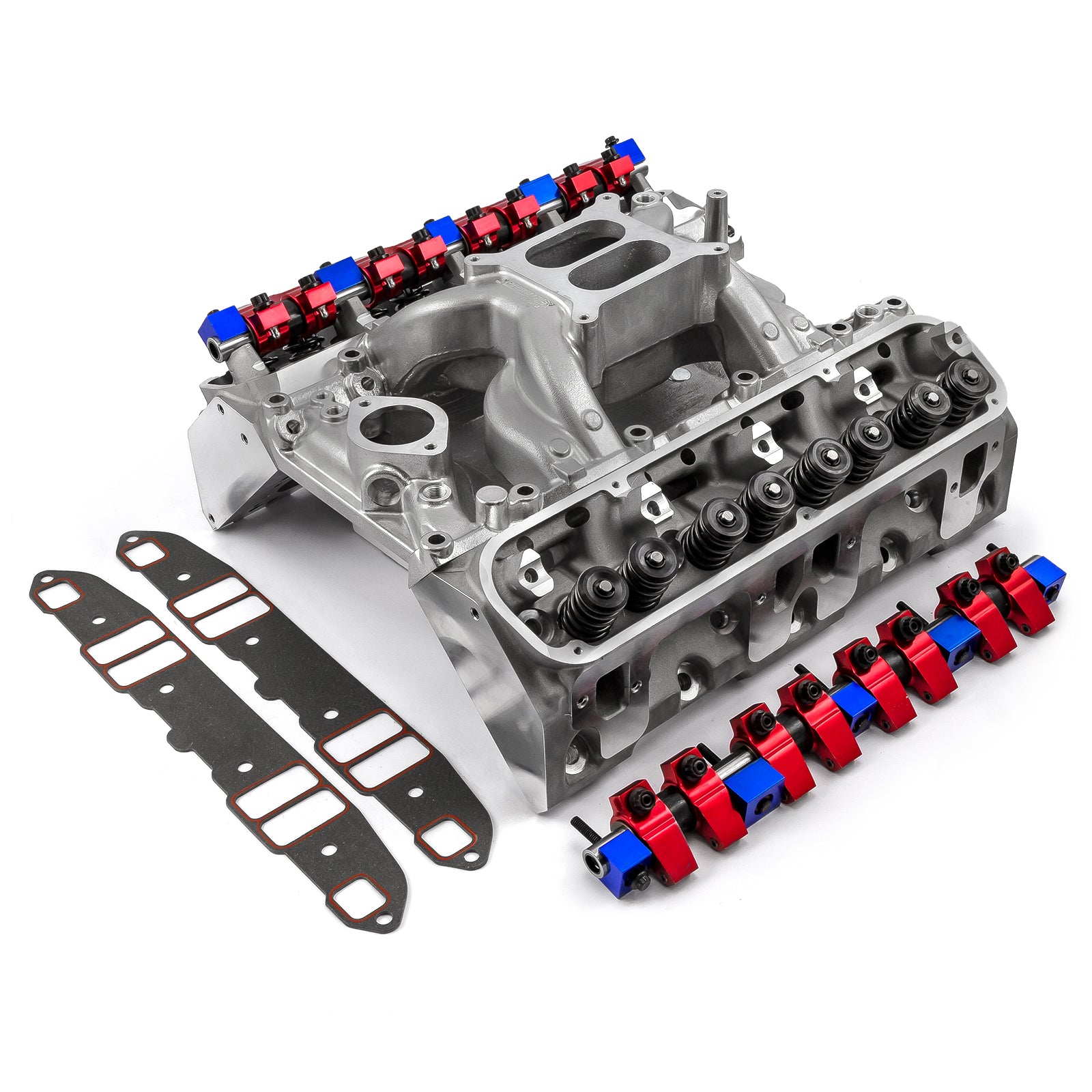

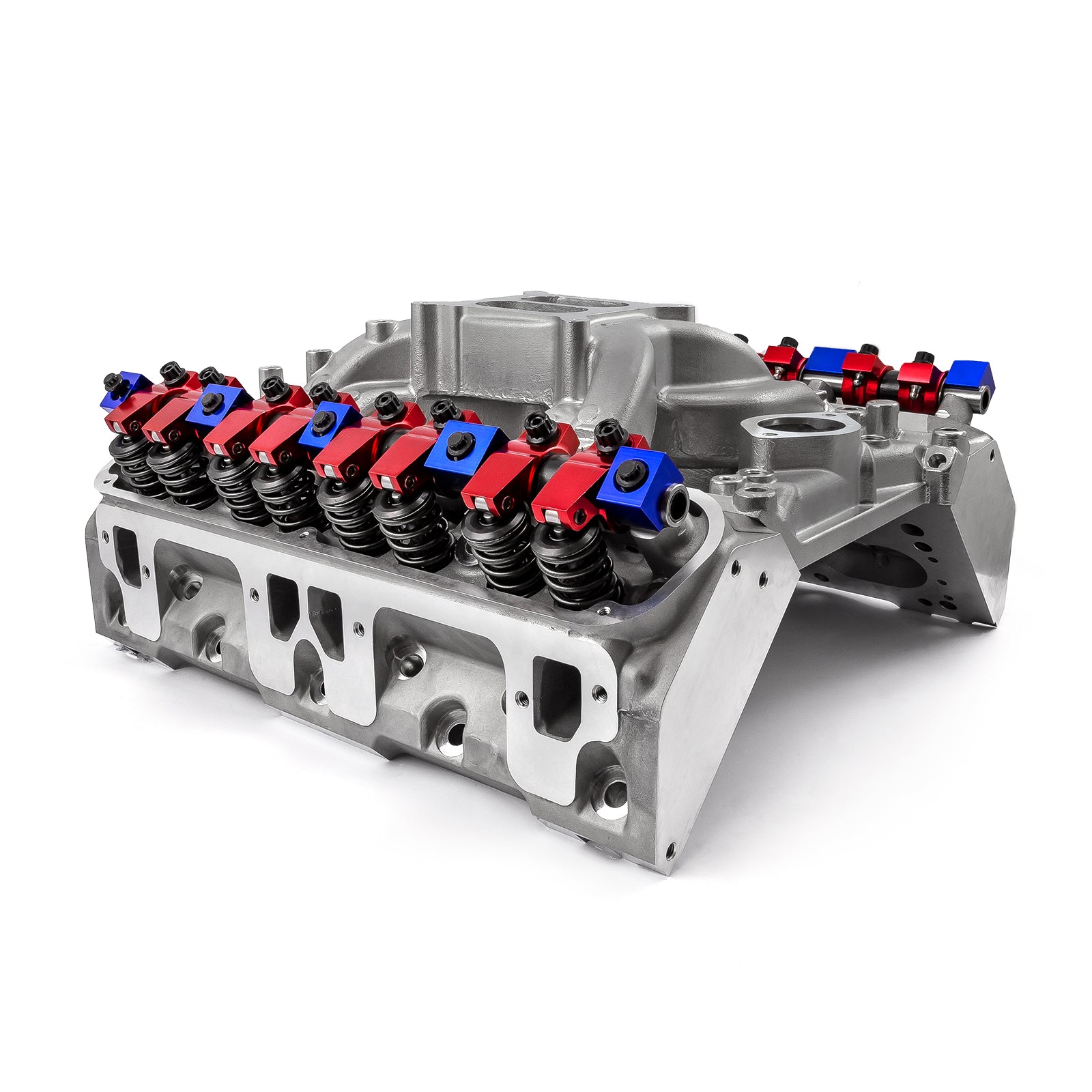

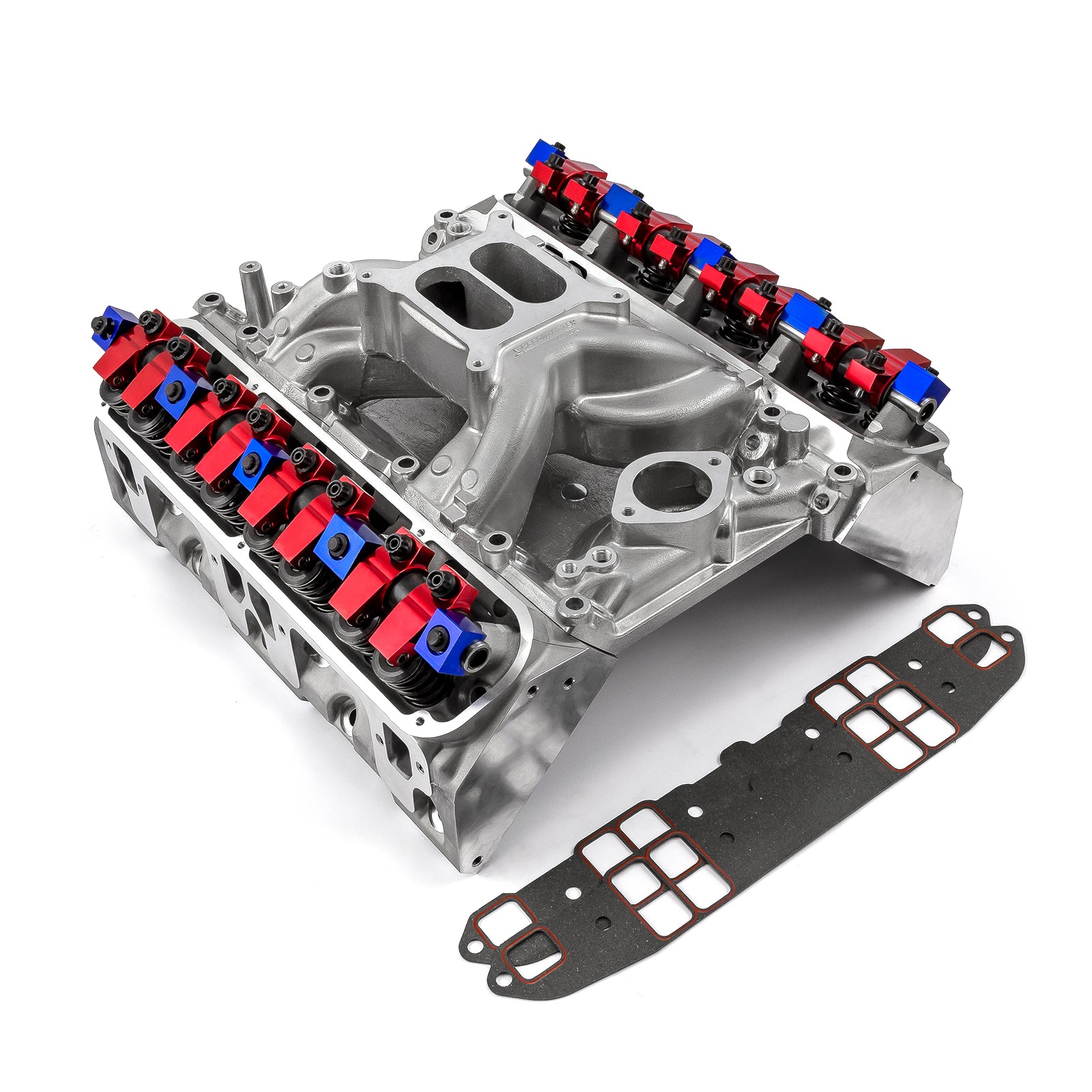

Mopar Chrysler SB 318 340 360 Hyd Roller Cylinder Head Top End Engine Combo Kit
Mopar Chrysler SB 318 340 360 Hyd Roller Cylinder Head Top End Engine Combo Kit
Regular price
$2,681.80 USD
Regular price
$3,155.00 USD
Sale price
$2,681.80 USD
Low stock
Quantity
Couldn't load pickup availability
- Item Condition: Brand New
- Ships within 15 days
- 12-Month Limited Worldwide Warranty
Information
Don't spend hours figuring out which pieces and parts you need to get what you want from your engine. Speedmaster has already done the work for you; our Top-End engine kits will save you the time and hassle of mixing and matching components yourself. These kits are specifically designed to deliver the performance you want, at a better price than purchasing the parts separately.
Specifications
| Brand: | Speedmaster |
| Part Number: | PCE435.1075 |
| Part Type: | Cylinder Head Combo |
| Product Line: | Hydraulic Roller Tappet |
| Camshaft Included: | No |
| Intake Manifold Included: | Yes |
| Fuel Delivery Style: | Carbureted |
| Intake Material: | Aluminum |
| Intake Finish: | Satin |
| Carburetor Quantity: | One |
| Intake Style: | Dual plane MidAir |
| Intake Basic Operating RPM Range: | 1500-6,500 |
| Intake Manifold Model (descriptive): | Speedmaster MidAir |
| Carburetor Flange: | Square bore |
| Timing Chain and Gears Included: | No |
| Lifters Included: | No |
| Gaskets Included: | Yes(Intake Only) |
| Cylinder Head Style: | Assembled |
| Cylinder Head Material: | Aluminum |
| Cylinder Head Finish: | Natural |
| Combustion Chamber Volume (cc): | 65 cc |
| CNC-Machined Combustion Chamber: | No |
| Intake Runner Volume (cc): | 170 cc |
| CNC-Machined Intake Runner: | No |
| CNC-Machined Exhaust Runner: | No |
| Intake Port Shape: | Square |
| Intake Port Location: | Standard |
| Exhaust Port Shape: | Square |
| Exhaust Port Location: | Standard |
| Spark Plug Style: | Stock |
| Comp. Valve Job: | No |
| Intake Valves Included: | Yes |
| Intake Valve Diameter (in): | 2.020 in. |
| Exhaust Valves Included: | Yes |
| Exhaust Valve Diameter (in): | 1.600 in. |
| Intake Valve Angle: | 23 deg. |
| Exhaust Valve Angle: | 23 deg. |
| Valve Springs Included: | Yes |
| Outside Diameter of Outer Spring (in): | 1.450 in. |
| Damper Spring Included: | Yes |
| Number of Springs Per Valve: | Dual |
| Retainers Included: | Yes |
| Retainer Material: | Chromoly steel |
| Locks Included: | Yes |
| Lock Style: | 10 degree |
| Valve Stem Seals Included: | Yes |
| Valve Stem Seal Style: | Positive stop |
| Rocker Arms Included: | Yes |
| Rocker Arm Studs Included: | No |
| Rocker Arm Nuts Included: | No |
| Rocker Arm Nut Thread Size: | n/a |
| Guideplates Included: | n/a |
| Guideplate Pushrod Size: | n/a |
| Pushrods Included: | No |
| Valve Covers Included: | No |
| Accessory Bolt Holes Drilled: | Yes |
| Valve Guides Included: | Yes |
| Valve Guide Material: | Bronze |
| Valve Seats Machined: | Yes |
| Valve Seat Machine Style: | 3-angle |
| Valve Seat Material: | Ductile iron |
| Steam Holes Drilled: | n/a |
| Oiling Style: | Through pushrod |
| Machined for O-Ring: | No |
| Heat Crossover: | No |
| Cylinder Head Bolts Included: | No |
| Quantity: | Sold as a kit. |
| Notes: | Designed for use with hydraulic roller camshafts less than .600 in. lift. Requires use of hardened pushrods. |
