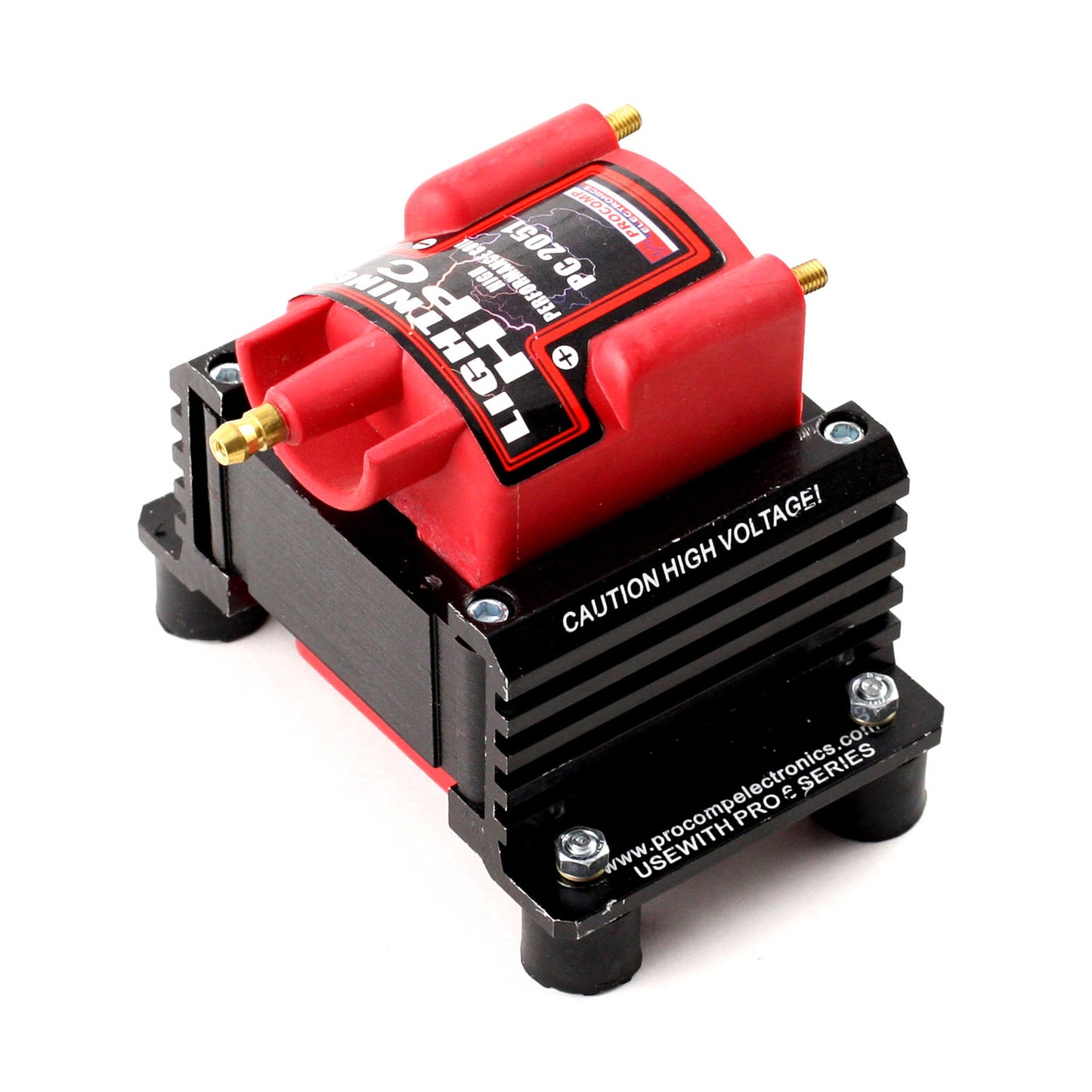

Universal HPC/HCV Race 12V High Output External Male E-Core Ignition Coil - Red

Speedmaster HPC ignition coils are designed for high-rpm, long-duration applications. Windings are encased in a durable epoxy and secured with extruded brackets. They also feature a spark plug style terminal and a threaded brass primary stud. They are supplied with rubber shock mounts to help them resist coil vibration.

Brand:	Speedmaster
Part Number:	PCE382.1005
Part Type:	Ignition Coil
Coil Wire Attachment:	Male/HEI
Coil Style:	E-core
Primary Resistance:	0.020 ohms
Coil Internal Construction:	Epoxy
Coil Color:	Red
Maximum Voltage:	42,000 V
Turns Ratio:	100:1
Secondary Resistance:	1.38K ohms
Inductance:	7.0 mH
Peak Current:	300 mA
Spark Duration:	200 uS
Mounting Bracket Included:	Yes
Coil Wire Included:	No
Ballast Resistor Included:	No
Coil Shape:	Square
Quantity:	Sold individually.
