Speedmaster®
SKU:PCE382.1020

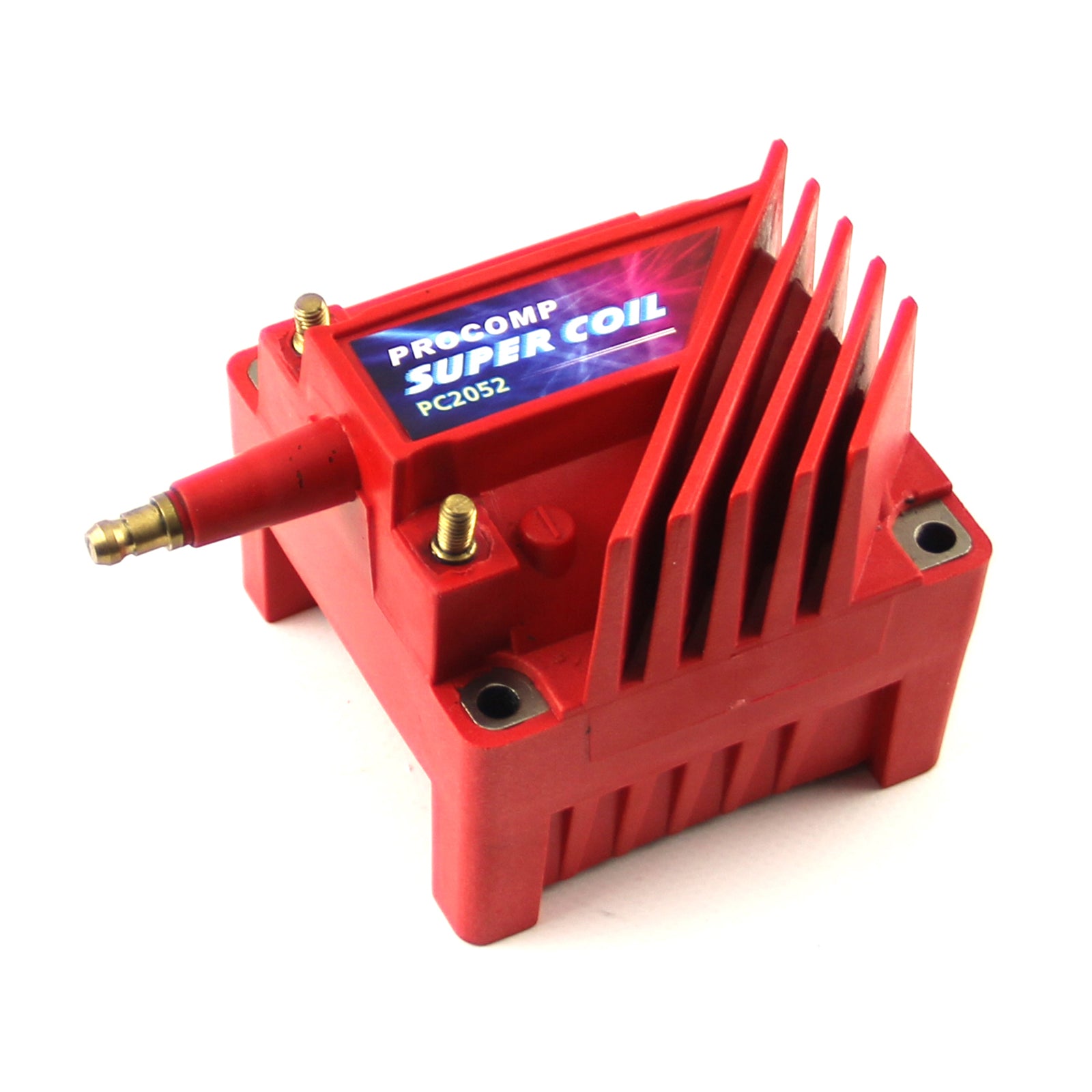

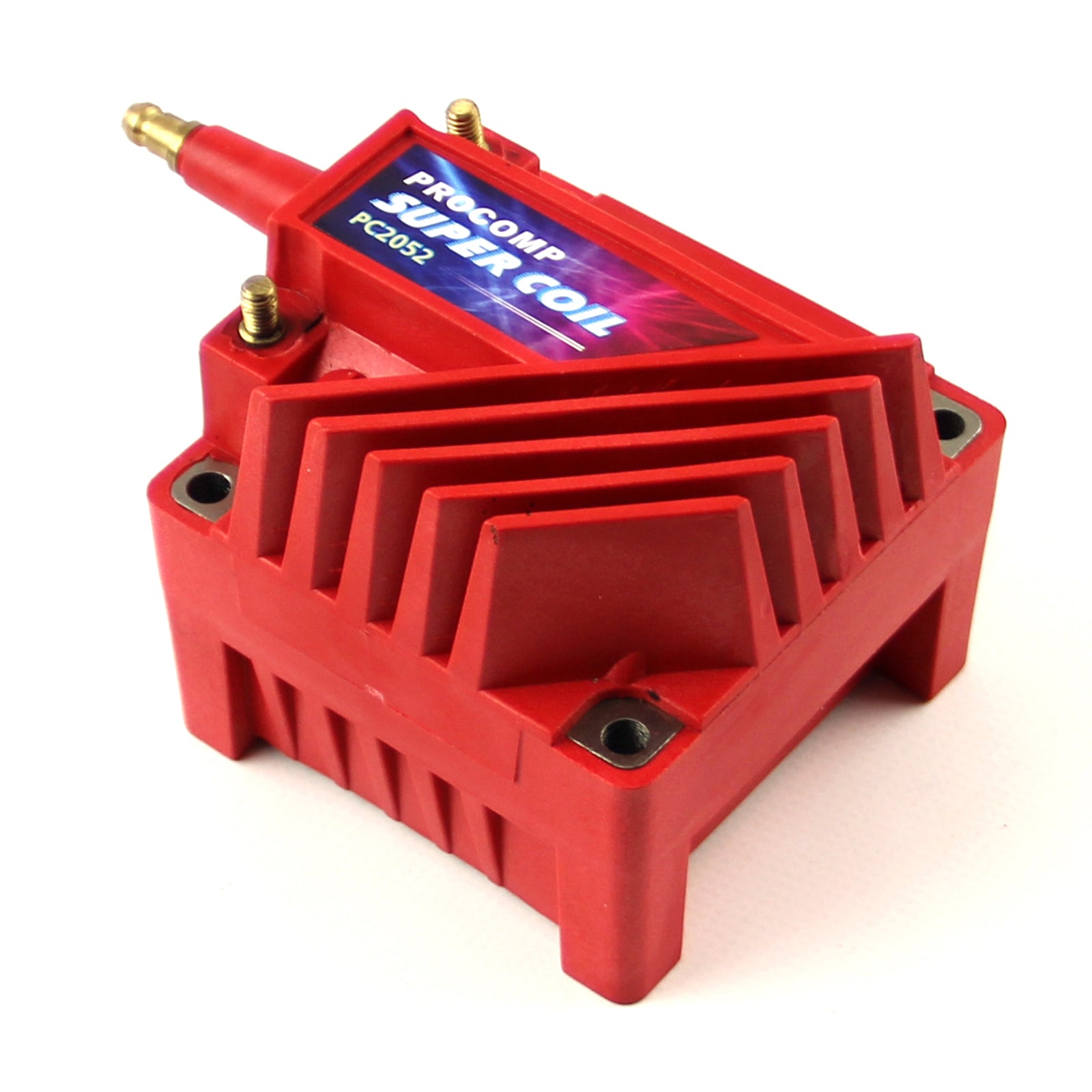

Universal Pc92 12V High Output External Male E-Core Ignition Coil - Red
Universal Pc92 12V High Output External Male E-Core Ignition Coil - Red
Regular price
$30.60 USD
Regular price
$35.90 USD
Sale price
$30.60 USD
In stock
Quantity
Couldn't load pickup availability
- Item Condition: Brand New
- Ships within 3 days
- 12-Month Limited Worldwide Warranty
Information
Specifications
| Brand: | Speedmaster |
| Part Number: | PCE382.1020 |
| Part Type: | Ignition Coil |
| Coil Wire Attachment: | Male/HEI |
| Coil Style: | E-core |
| Primary Resistance: | 0.700 ohms |
| Coil Internal Construction: | Epoxy |
| Coil Color: | Red |
| Maximum Voltage: | 45,000 V |
| Turns Ratio: | 85:1 |
| Secondary Resistance: | 3.50K ohms |
| Inductance: | 6.9 mH |
| Peak Current: | 220 mA |
| Spark Duration: | 200 uS |
| Mounting Bracket Included: | No |
| Coil Wire Included: | No |
| Ballast Resistor Included: | No |
| Coil Shape: | Square |
| Quantity: | Sold individually. |
Speedmaster PC92 coil produces up to 70% more spark energy than stock coils with outstanding reliability. This unit is recommended for street, strip, circle track and drag racing. Internally the coil also has large gauge wire windings for maximum spark current and voltage with better heat dissipation at high rpm. High voltage arcing is minimized through screw on connectors and a high tension tower. Ideal for use with capacitive discharge (CD) ignition systems and all of Speedmaster range of High Output Ignitions.
